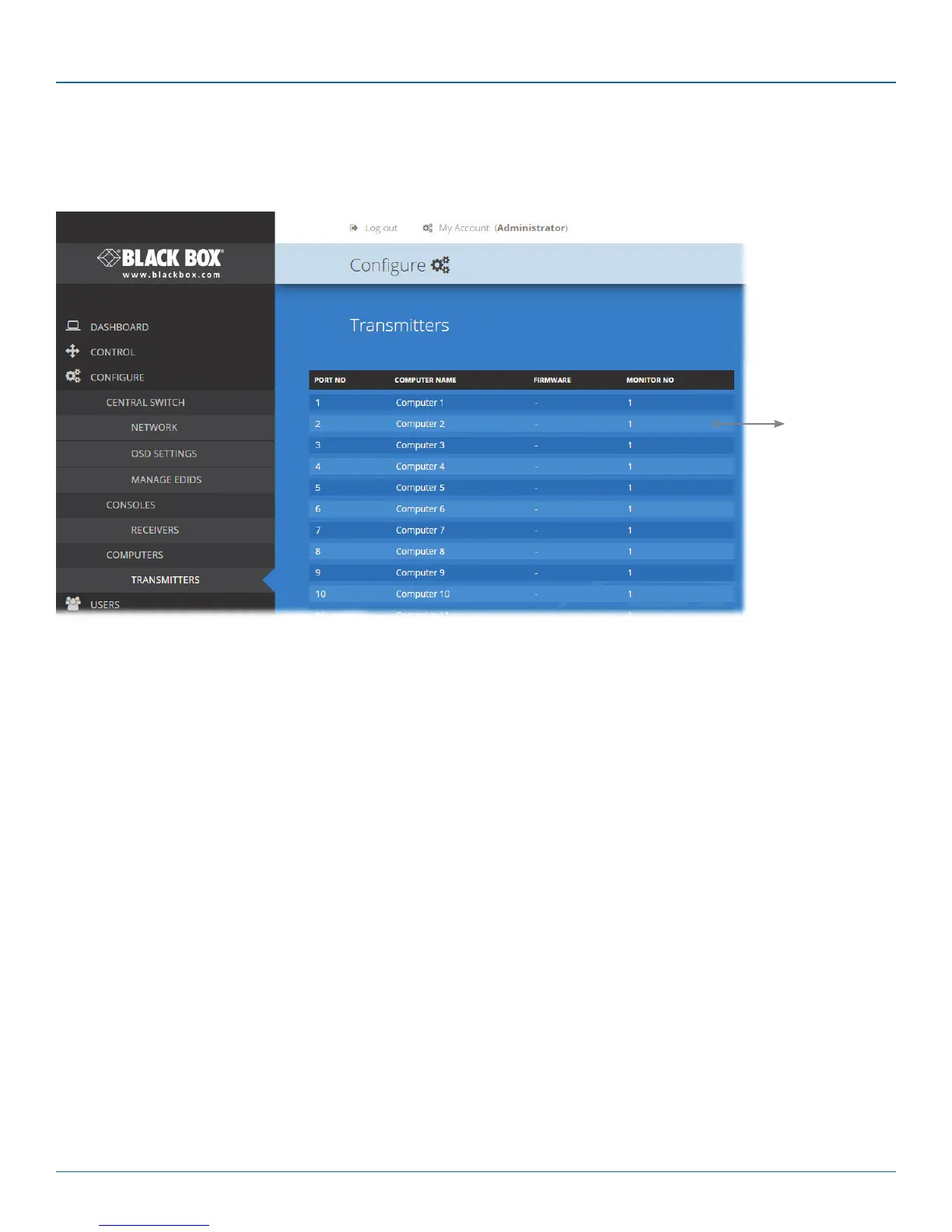

4.9 Configure > Computers > Transmitters
Each computer connects to a DCX3000 SAM transmitter module. This page lists each DCX3000 SAM module and their key
details:
Listed in order of the DCX3000 Switch port to which they are attached, this page shows various
details for each DCX3000 SAM module:
• Computer Name - the given name for each connected computer.
• Firmware - the current internal software version for each DCX3000 SAM module.
• Monitor No - an index number for each video display port. The first port for any computer will
be indexed as ‘1’. Where a computer has more than one video display connected it (by using
additional DCX3000 SAM modules), this column will show ‘2’, ‘3’, etc. against the secondary,
tertiary, etc. DCX3000 SAM module(s).
• Unique ID - (shown only when the Maintenance > Settings > Web UI Mode is set to Advanced)
this column displays the unique identifier hardwired into every DCX3000 SAM module.
View details
See opposite.
