Camera Settings
Additional Settings

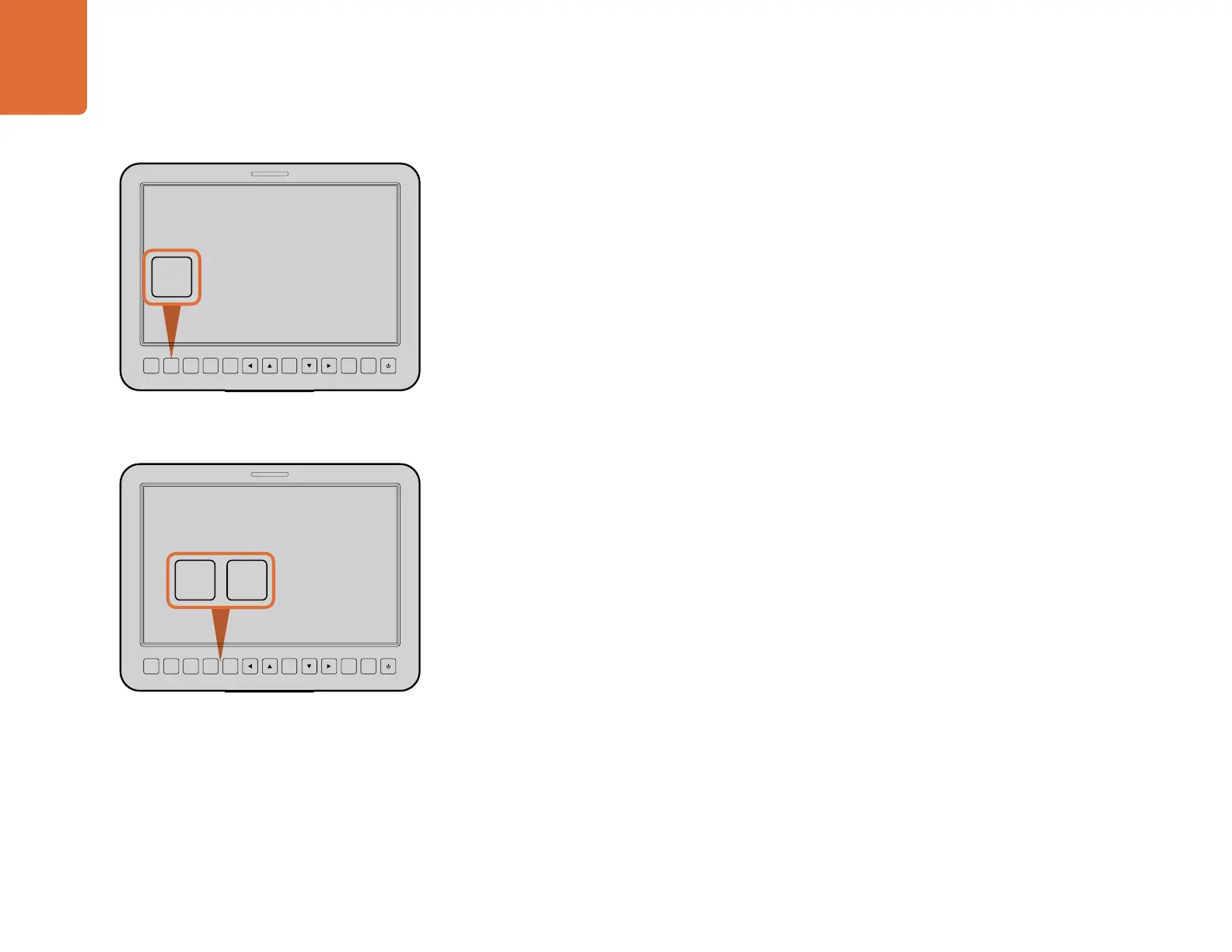

Push to Talk (PTT) Button
When doing live production it's vital that camera operators can talk to the director and others within
the control room. Simply press and hold the button to begin talking. Press twice in quick succession
for hands free communication. Press again to revert to the default behavior.
Program (PGM) Button
It's sometimes important for camera operators to see the program output, rather than just the view
from their own camera. Press the button to toggle between live camera output and the program
output from a switcher control room. You can use either the SDI input, or user upgradable optical
fiber input to connect your external video source.
Look Up Table (LUT) Button
Currently not implemented.
Left, Up, Down, Right Buttons
Use these buttons to navigate the menus.
Set Button
Use this button to confirm your menu selections.
Display Button
Press this button to display useful information on your Studio Camera's 10" monitor, including:
 Frame guides with camera and lens settings such as camera number, video format and frame
rate, shutter speed, white balance, battery life, gain setting and f-stop number.
Press the Disp button again to turn overlays off and monitor the image only. Overlays are visible on
the 10" monitor. The SDI output is always clean.
Menu Button
Press this button to bring up the menu and then use the arrow buttons to navigate.
Power Button
Press the power button to turn on the Blackmagic Studio Camera. Press and hold the button to turn
the camera.
The Studio Camera features settings like PTT and PGM which
are essential for live production.
