Using ATEM Software Control
Introducing Camera Control
Your Blackmagic Studio Camera can be controlled from an ATEM switcher using the Camera Control feature
in ATEM Software Control. Clicking on the Camera button opens the camera control feature. Settings such
as iris, gain, focus and zoom control are easily adjusted using compatible lenses, plus you can color balance
cameras and create unique looks using the DaVinci Resolve primary color corrector.
The ATEM switcher control works by broadcasting camera control packets via all the non down converted SDI outputs
of an ATEM switcher. So this means you can connect an SDI output of an ATEM switcher to your camera's video input,
your camera will detect the control packets in the SDI link and allow you to control features in the camera itself. You
can control your camera via both regular SDI, or via user upgradable
optical
fiber when the SFP module is installed.
Connecting via SDI
Step 1. Connect your Blackmagic Studio Camera's SDI Out to any SDI In on the ATEM switcher.
Step 2. Connect any one of the ATEM switcher's SDI outputs, except down converted or multi view
outputs, to your Studio Camera's SDI In. Camera control signals are not sent via the multi view
and down converted SDI outputs.
Step 3. On your Blackmagic Studio Camera, press Menu. Navigate to Studio Settings>Camera
Number and set it to match the switcher input. For example, if studio camera 1 is connected to
Cam 1 on the ATEM switcher, the camera number must also be set to 1. This ensures tally is
sent to the correct camera.
Connecting via Optical Fiber
Step 1. With the user upgradable optical fiber SFP module installed in your Studio Camera, connect
the Optical Out/In to the Optical Out/In on an ATEM Studio Converter.
Step 2. Connect a suitable SDI out from ATEM Studio Converter to any SDI In on the ATEM switcher.
Step 3. Connect any one of the ATEM switcher's SDI outputs, except down converted or multi view
outputs to ATEM Studio Converter's SDI In. Camera control signals are not sent via the multi
view and down converted SDI outputs.
Step 4. On your Blackmagic Studio Camera, press Menu. Navigate to Studio Settings>Camera Number
and set it to match the switcher input. For example, if studio camera 1 is connected to Cam 1
on the ATEM switcher, your camera number must also be set to 1. This ensures tally is sent to
the correct camera.
Open ATEM Software Control Preferences and set the switcher's button mapping to make sure you are
switching the right camera with correct tally. Now you have a video connection from the switcher to your
Blackmagic Studio Camera, you can also get the advantage of live tally indicators on your camera, as well
as being able to view the program feed of the switcher by pressing your camera’s PGM button.

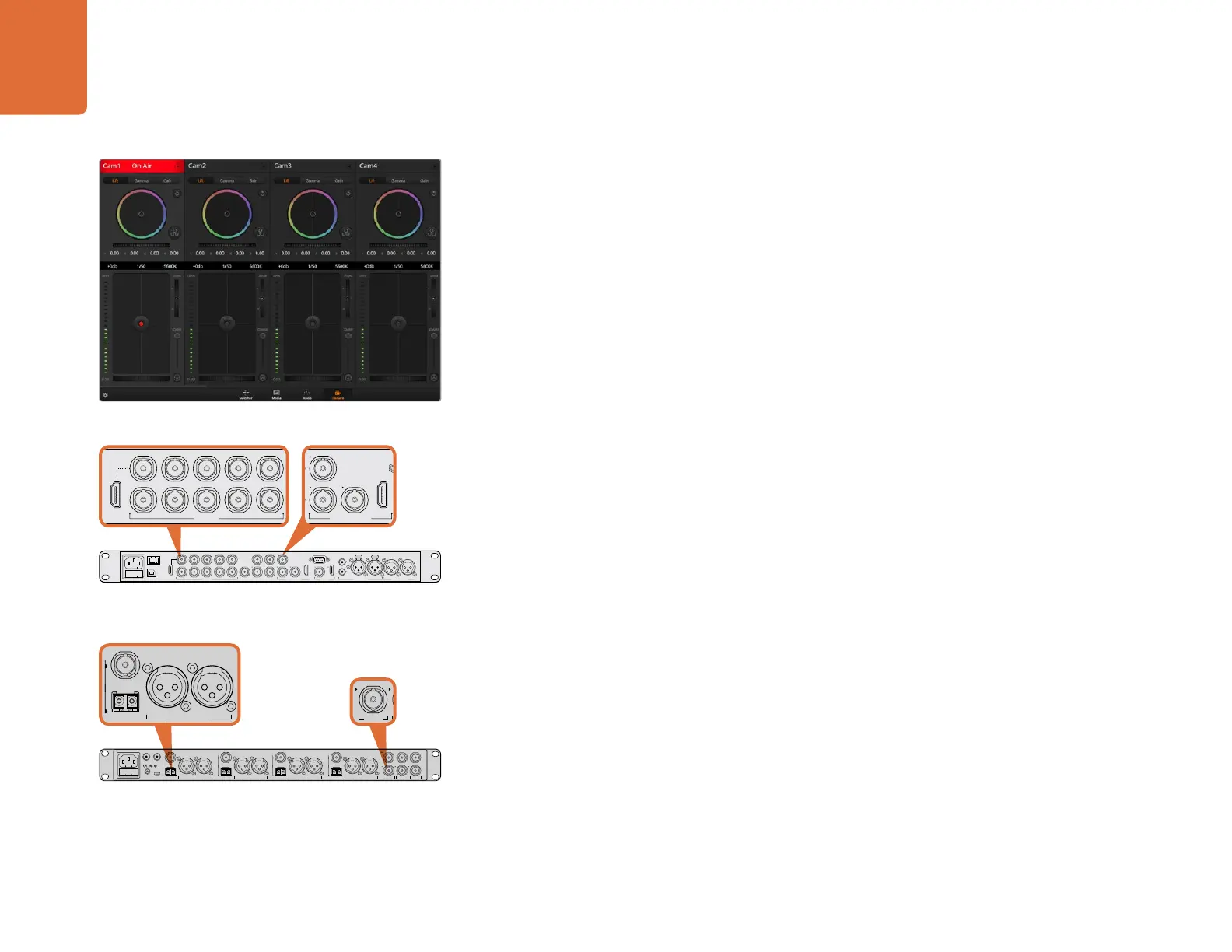

ATEM Camera Control.
Connect your Blackmagic Studio Camera to any of the ATEM
switcher's SDI inputs.
PUSH PUSH
CONTROL
USB 2.0 HDMI IN
SDI INPUTS REF IN AUX 1-3 PREVIEW PROGRAM OUTPUTS MULTI-VIEW ANALOG AUDIO IN
STEREO IN
REMOTE
ANALOG AUDIO OUT
CH 1
All SDI and HDMI video connections are
SD, HD and Ultra HD switchable unless indicated
CH 2CH 1 CH 2
IN
1
IN
2
IN
1
IN
3
IN
4
IN
5
IN
6
IN
7
IN
8
IN
9
IN
10
2
1 3
2
1
HD HD HD
PUSH PUSH
CONTROL
USB 2.0 HDMI IN
SDI INPUTS REF IN AUX 1-3 PREVIEW PROGRAM OUTPUTS MULTI-VIEW ANALOG AUDIO IN
STEREO IN
REMOTE
ANALOG AUDIO OUT
CH 1
All SDI and HDMI video connections are
SD, HD and Ultra HD switchable unless indicated
CH 2CH 1 CH 2
IN
1
IN
2
IN
1
IN
3
IN
4
IN
5
IN
6
IN
7
IN
8
IN
9
IN
10
2
1 3
2
1
HD HD HD
PUSH PUSH
CONTROL
USB 2.0 HDMI IN
SDI INPUTS REF IN AUX 1-3 PREVIEW PROGRAM OUTPUTS MULTI-VIEW ANALOG AUDIO IN
STEREO IN
REMOTE
ANALOG AUDIO OUT
CH 1
All SDI and HDMI video connections are
SD, HD and Ultra HD switchable unless indicated
CH 2CH 1 CH 2
IN
1
IN
2
IN
1
IN
3
IN
4
IN
5
IN
6
IN
7
IN
8
IN
9
IN
10
2
1 3
2
1
HD HD HD
Connect multiple Blackmagic Studio Cameras via optical fiber
using an ATEM Studio Converter.
4321
OPTICAL OUT/IN
SDI OUT
L R
RL
USB 2.0
+12V BACKUP
POWER
OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L
OUT
R
ANALOG AUDIO OUTANALOG AUDIO OUT
IN
PGM SDI
OUT
IN
MIC
OUT
IN
H/PHONE
AES/EBU TALKBACK LOOPS
4321
OPTICAL OUT/IN
SDI OUT
L R
RL
USB 2.0
+12V BACKUP
POWER
OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L
OUT
R
ANALOG AUDIO OUTANALOG AUDIO OUT
IN
PGM SDI
OUT
IN
MIC
OUT
IN
H/PHONE
AES/EBU TALKBACK LOOPS
4321
OPTICAL OUT/IN
SDI OUT
L R
RL
USB 2.0
+12V BACKUP
POWER
OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L
OUT
R
ANALOG AUDIO OUTANALOG AUDIO OUT
IN
PGM SDI
OUT
IN
MIC
OUT
IN
H/PHONE
AES/EBU TALKBACK LOOPS
