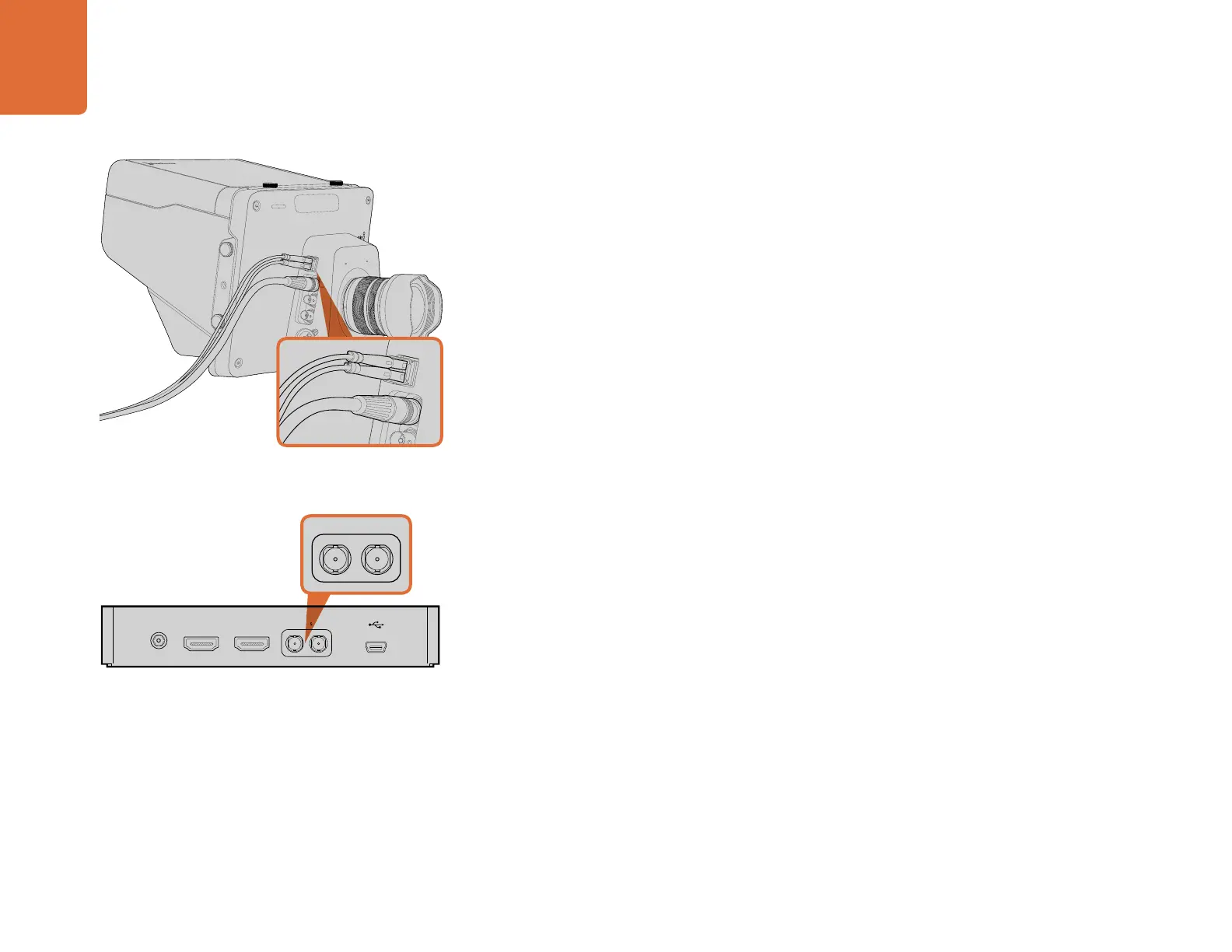

Camera Video Output

Connect the camera's SDI output to the HyperDeck's SDI

input and connect the HyperDeck's SDI output to the

camera's SDI input to view your recordings.

+12V POWER HDMI IN HDMI OUT SDI IN SDI OUT

Connecting to Video Switchers

Blackmagic Studio Cameras output 10-bit 4:2:2 video so you can connect to broadcast switchers

and other SDI video equipment. With the user upgradable SFP module installed you can connect via

optical fiber, which means ATEM Camera Converters are not required at the camera end.

If you're using a Blackmagic Studio Camera HD or Studio Camera 4K, you can easily view the Program

(PGM) output from the switcher by connecting it to your Studio Camera's SDI input, or to the

optical fiber input when the user upgradable SFP module is installed.

Blackmagic Studio Camera also features a reference input which allows multiple cameras to be

genlocked to a blackburst or tri-level reference signal. Genlocking cameras, VTRs and other devices

to an external reference signal helps to eliminate timing errors which may result in the picture jumping

when switching between different sources.

Connecting to Recorders

If you simply wish to record your Studio Camera's output, you can connect the SDI output to the

SDI input of an SSD recorder such as the Blackmagic HyperDeck Shuttle. The SDI output from the

HyperDeck can then be connected to the Studio Camera's SDI input, so you can view your recordings

on the camera's LCD.

Connect your Studio Camera to a switcher via SDI, or via

optical fiber with user upgradable SFP module installed.

OPTICAL OUT

OPTICAL IN

SDI OUT

SDI IN

REF

12V
