Camera Settings
Headset Level
Move the volume slider left or right to increase or decrease audio monitoring levels. The default
setting is 50%.
Headset Mic Level
Move the volume slider left or right to increase or decrease audio microphone input levels. The
default setting is 50%.
Program Mix
Changes the balance of camera sound to talkback sound. The headphones will output audio following
what is displayed on the LCD. For instance, if you are in camera view, camera audio is heard. And if
you are in program view, program audio is heard. The default setting is 0%.
Remote Settings
Blackmagic Micro Studio Camera 4K features an additional menu for setting remote functions. If you
are using S.Bus to control your camera, you can use this menu to assign functions such, iris, shutter
speed and so on to individual S.Bus channels. Simply select the function you wish to control and
assign an available channel using the ‘up,’ ‘down’ and ‘set’ buttons.
Button Settings
Adjusting Lens Settings
Blackmagic Studio Camera supports electronic lens control, which allows you to adjust lens settings
such as aperture and auto focus. The focus peaking feature creates a green edge around the sharpest
parts of the image so you can easily confirm your focus. Focus peaking is only visible on the LCD and
does not affect the SDI output.
Focus Button
When using the Studio Camera with an auto focus lens, press the focus button for focus peaking
or auto focus. Press the focus button once to auto focus. A quick double press of the focus button
activates focus peaking.
When using a manual lens, press the focus button once for focus peaking.
Iris Button
When using video dynamic range settings, a single press of the iris button will set an average exposure
based on the highlights and shadows in your shot. When using film dynamic range settings, pressing
the iris button sets your exposure to accommodate the brightest highlight in your shot. To set your
aperture manually on your Studio camera, press the up and down menu navigation buttons.
Press the focus button once to auto focus. A quick double
press of the focus button activates focus peaking.
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU

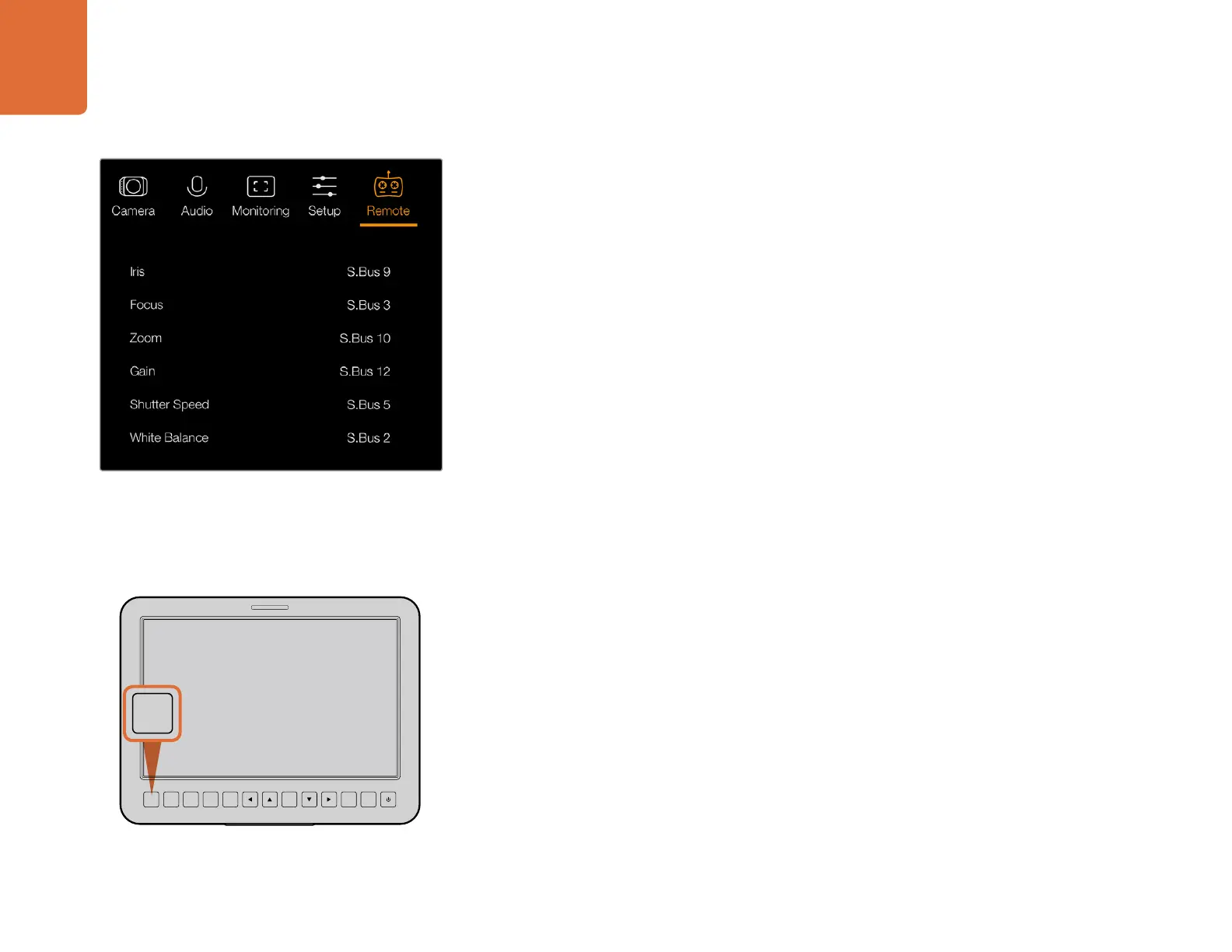

Remote settings - Blackmagic Micro Studio Camera 4K.
