3.1.1. Machine referring
Machine referring is necessary for correct operation of the saw in automatic mode.
ELGO – linear sensor on the feeder chek; does not measure any particular value, just
checking the sensor operation.

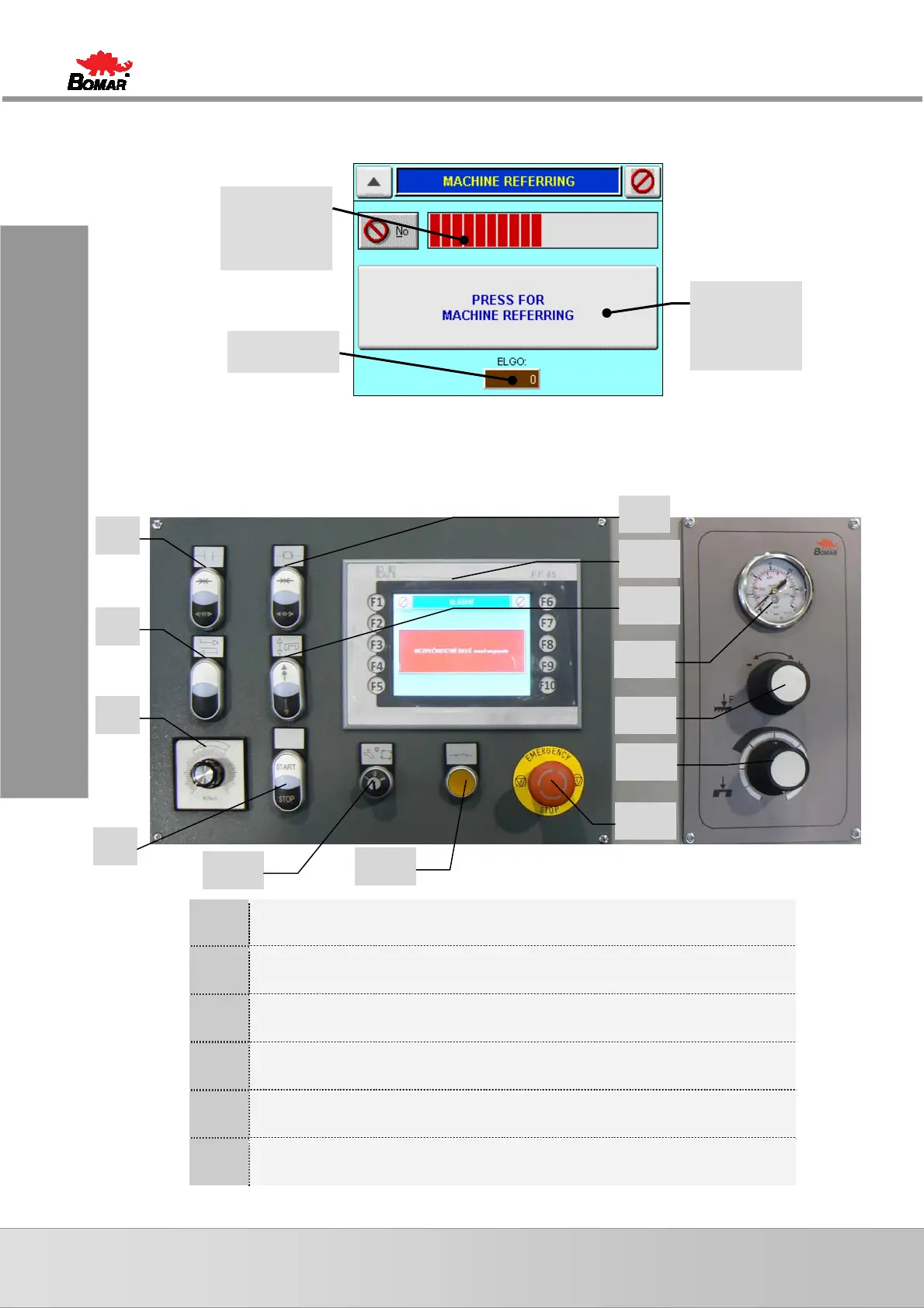

3.2. Control panel – description
1
Feeder vice
Buttons to tighten / release the feeder vice jaws
2
Main vice
Buttons to tighten / release the main vice jaws
3
Feeder movement
Feeder movement to / from saw
4
Frame up / down
If both buttons are pressed at the same time, the frame moves faster
5
TOTAL – STOP button
Immediately stops the machine in emergency.
6
Manometer
Shows value of pressure into cut
ELGO numer
chec
k
Situation of
referring of
the machine
part
Button for
starting
machine
refering
1
11
2
3
9
12
4
16
10
5
6
7
8
