3.7.1. Vice adjustment
This menu allows testing both vices of the saw Individual 620.460 GANC.
Vice movement is controlled by the respective buttons on the control panel (positions
1 and 2.).
3.7.2. Frame adjustment

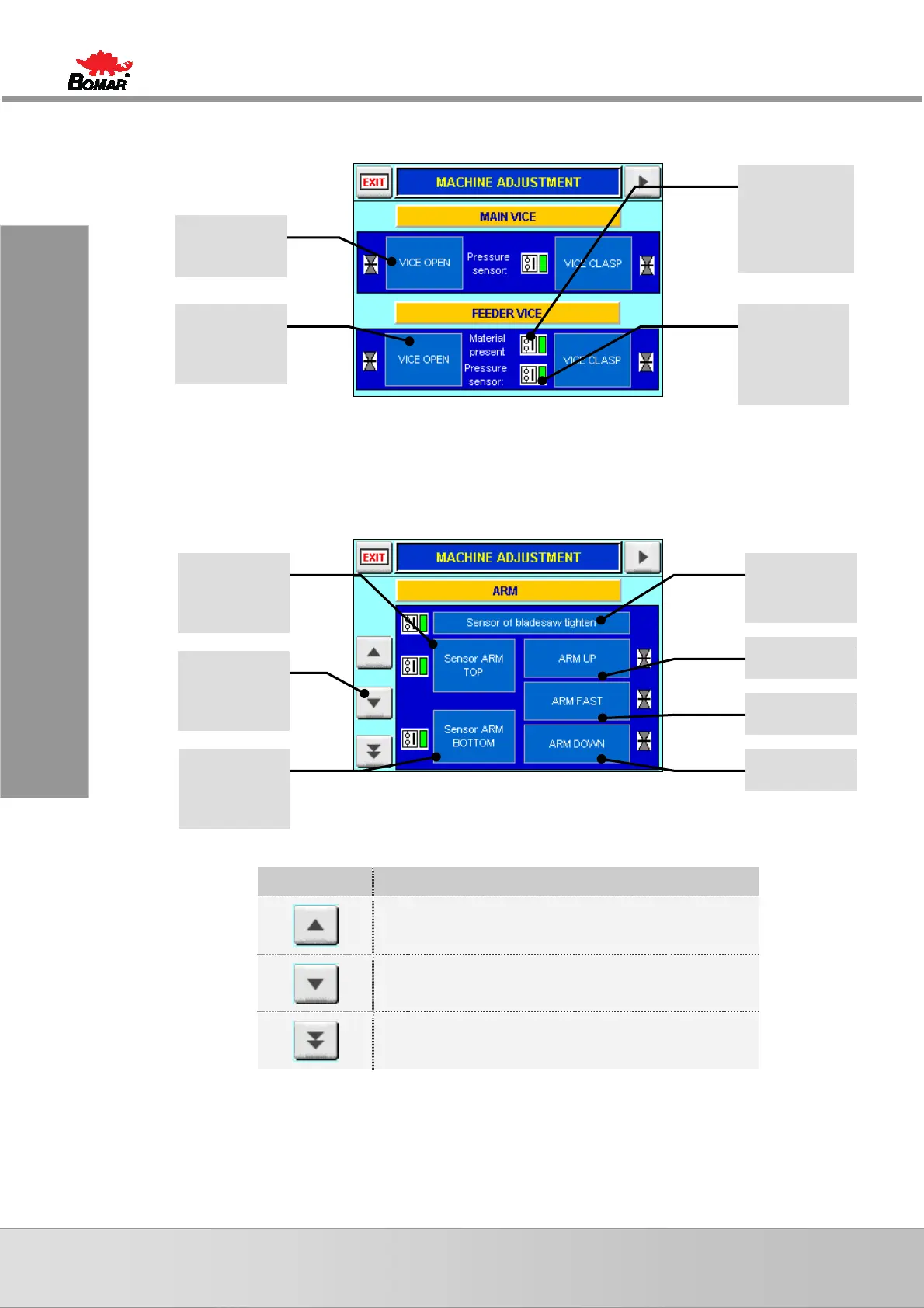

This menu allows to check the band saw frame movement. The menu Frame
parameters is also suitable for testing of the limit positions of the frame and
adjustment of the limit switches.
Function keys for frame movement:
Button Description
Frame movement up, the same movement is initiated by black part of the
button on position 4 on the control panel.
Frame movement down, the same movement is initiated by white part of
the button on position 4 on the control panel.
Frame movement fast down, the same movement is initiated by both
buttons on position 4 on the control panel.
3.7.3. Feeder adjustment
This menu shows all parameters concerning the machine feeder. The operator can test
all possible movements of the feeder either by function keys on LCD or by buttons for
feeder movement on the control panel – position 3.
During feeder movement its speed and position is displayed as well as information
about its correct referencing.
Valve position
Red when vice
is opening
Pressure sen-
sor for vice
clamping.
Green if
vice clamped.
Red when vice
is opening
Pressure sen-
sor for material
detection.
Green if
material clamped.
Red when vice
is opening
Band pension
sensor info
Frame movemen
t
ind.
Frame movemen
t
ind.
Frame movemen
t
ind.
Function keys
for frame
movement
