9. Fasten the holder to the vice.
10. Insert the bearing and washers and return the pivot to its original place.
11. The pivot may not extend past the holder; otherwise, the bundle gripping
assembly regulator gets worse.
4.7.2. Saw band guiding pulleys replacement
If the saw band is not sufficiently guided by guiding pulleys or if the pulleys are
obviously worn, the pulleys should be replaced.

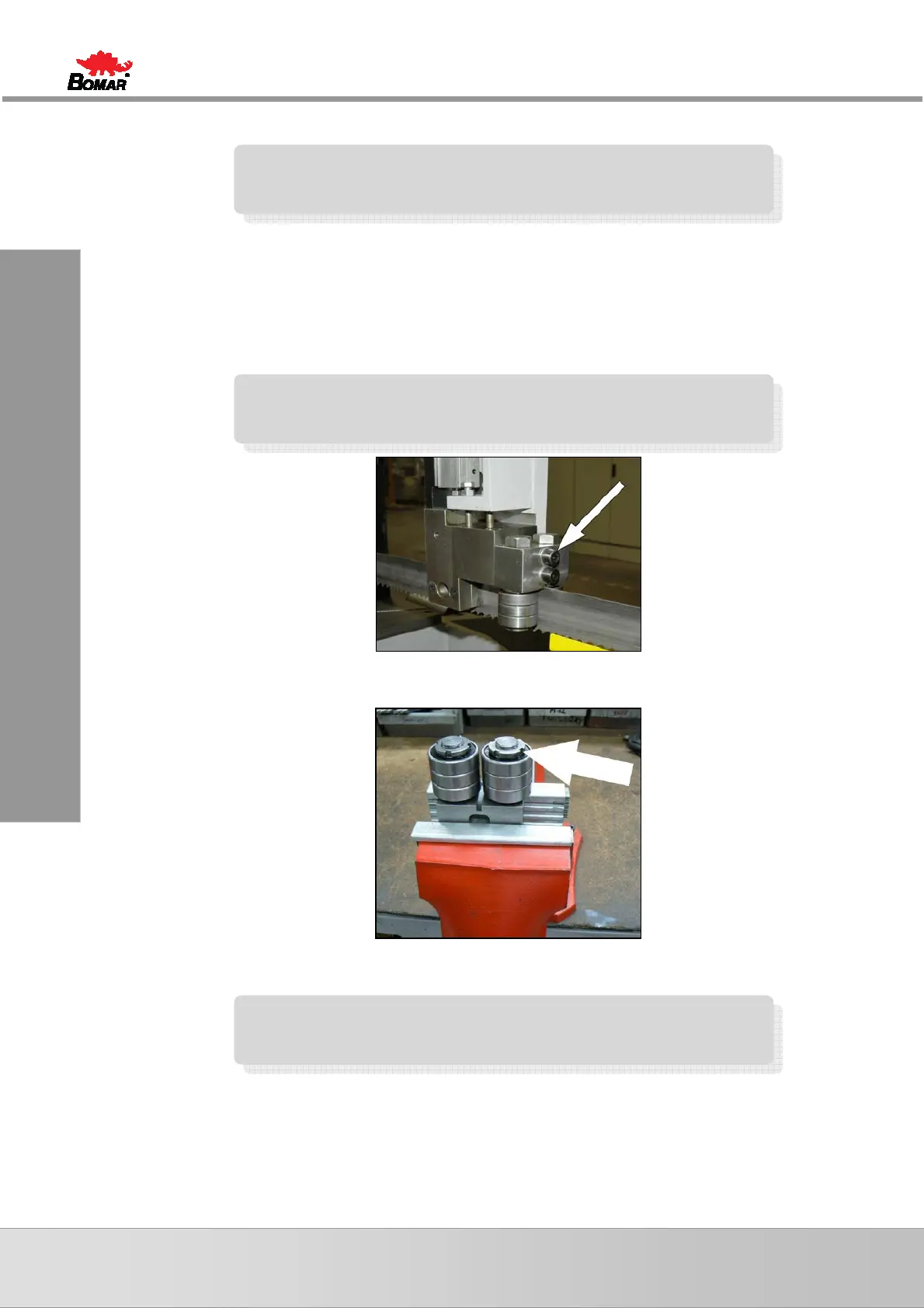

1. Release rear holder with 2 screws (see arrow). Dismantle the guiding cube of the
saw band.
2. Tighten the guiding cube to the vice and dismantle both eccentrics with bearings
following way.
3. Screw off nuts from eccentrics.
4. Remove eccentrics from bearings by means of the swager.
Attention:
The vice has aluminium jaws, eventually, there has to be an
aluminium agent to protect the pivot from damage.
Attention:
Guiding pulleys must be replaced together on both guiding
cubes!
Attention:
Mark both eccentrics placing and components on the eccentric!
Eccentrics must not be replaced with each other!
