Ovládání stroje
Bedienung der Maschine
Machine control
7
Regulation of pressure into cut
Regulation valve sets pressure into cut.
8
Regulation valve
Regulation valve sets the lowering speed of the frame into the cut. The speed is limited by the adjustment
of the pressure regulation in the cut on the guiding cubes.
Note: If the throttle valve is closed too tightly, the valve seat may be damaged and may start to leak. Tighten the
valve lightly.
9
Frequency changer
Turn to change to speed of the saw band.
10
Safety circuit
Press button to start the safety circuit
11
Machine mode selection
• 1 – Adjustment mode
• 2 – Machine operation mode
• 0 – Machine setting mode
12
STOP button
Interrupts the cycle, to restart press 8 – START button.
START button
Press to start the work cycle. Press 8 – STOP to stop the cycle.

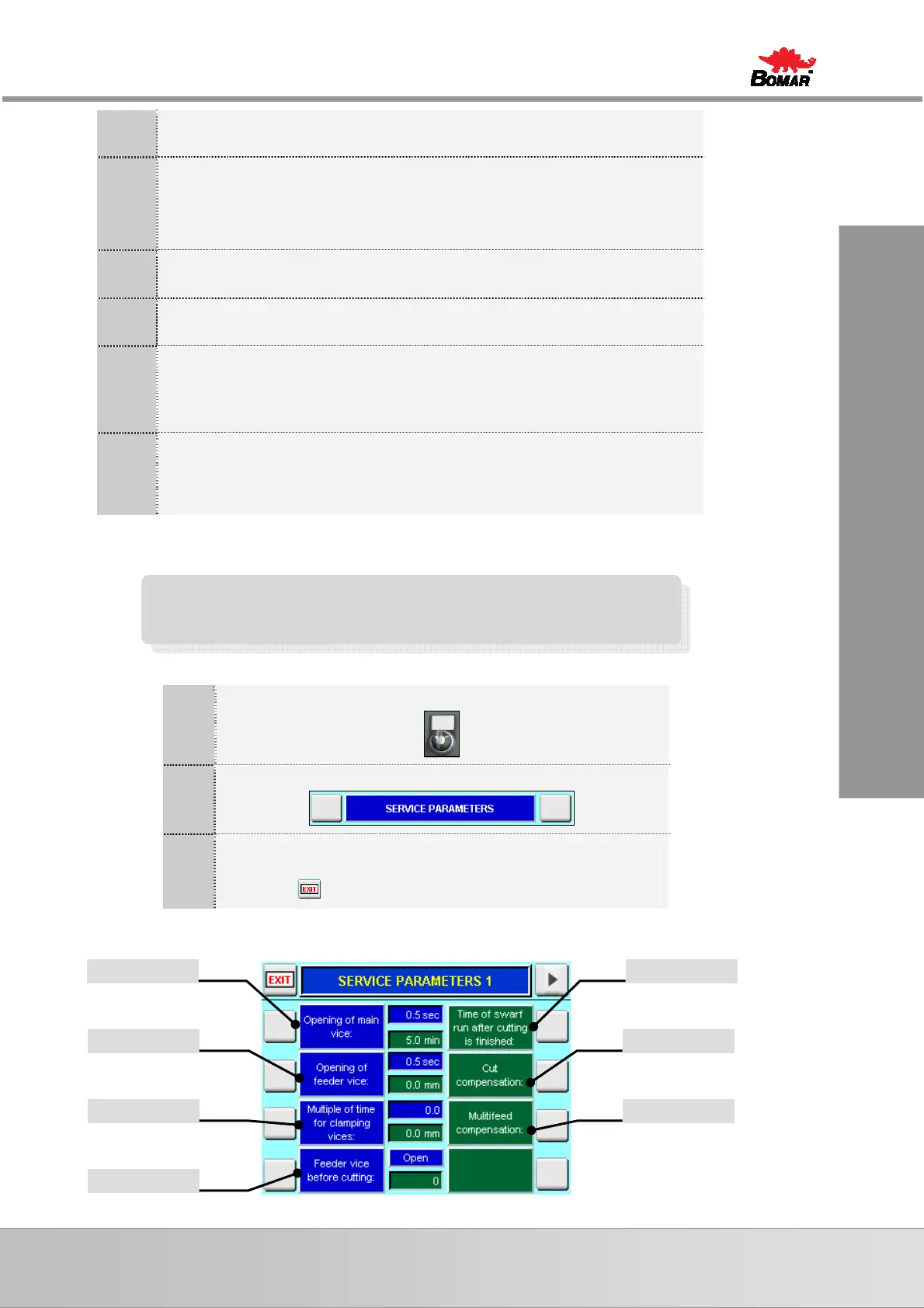

3.3. Service parameters
Enter the service parameters menu:
1.
Turn the key switch into position 0
2.
Select the item Service parameters on LCD
3.
To leave the menu:
• Turn the key switch to different position
• Press button
3.3.1. Service parameters 1
1
2
3
4
5
6
7
Attention!
Wrong setting of following parameters may damage the
machine. Change the values reasonably!
To Next Page
