47
Ovládání stroje
Bedienung der Maschine
Machine control
Setting of frame bottom stop position is made by adjustable excenter on the frame
beam.
3.7.8. Setting of optimum distance of the guiding cubes
In order to maintain stable cut and sufficient precision, it is necessary to place the left
guiding cube as close to the cut material as possible.
1. Press STOP 5 button for 2 seconds to switch off the hydraulics.
2. Release guiding listel lever.
3. Move left part of the guiding so the edge of the left guiding cube is as close to the
cut material as possible.
4. Tighten the levers and check position of the guiding cube.

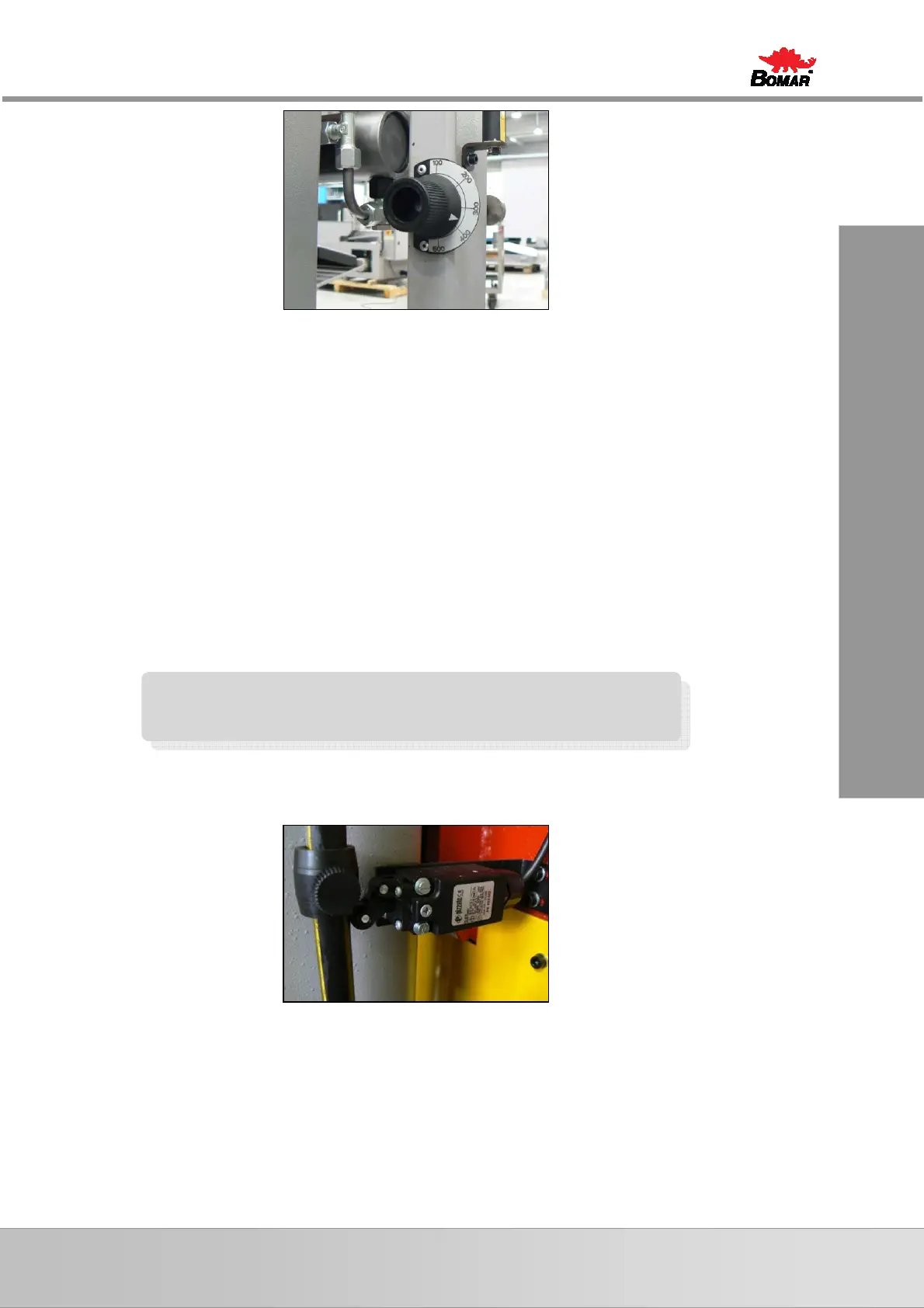

3.7.9. Setting of the frame lowering speed
Frame lowering speed is set using control on control panel.
• Turn clockwise to decrease frame lowering speed.
• Turn counterclockwise to increase frame lowering speed.
3.7.10. Saw frame lift stop setting
If you want to shorten the time of operations in automatic cycle, you have to adjust the
height of the saw arm according to the height of the cutting material.
1. Lift the saw arm to the upper position.
2. Insert a material into the vice. Carefully lower the saw arm to the material.
3. Stop the saw arm 10mm above the material.
4. The lift stop setting is sensed by the limit switch.
3.7.11. Brush setting
The brush influence the cutting power, lifetime of the saw band, circular wheels,
hardmetal guides and precision of the cutting. Replace the brush each shift.
Note:
If the throttle valve is closed too tightly, the valve seat may be
damaged and may start to leak. Tighten the valve lightly.
