62
Manual version: 1.10 / Jan. 2011
Manual rev.: 1
Údržba stroje
Wartung /
Machine smaintenance

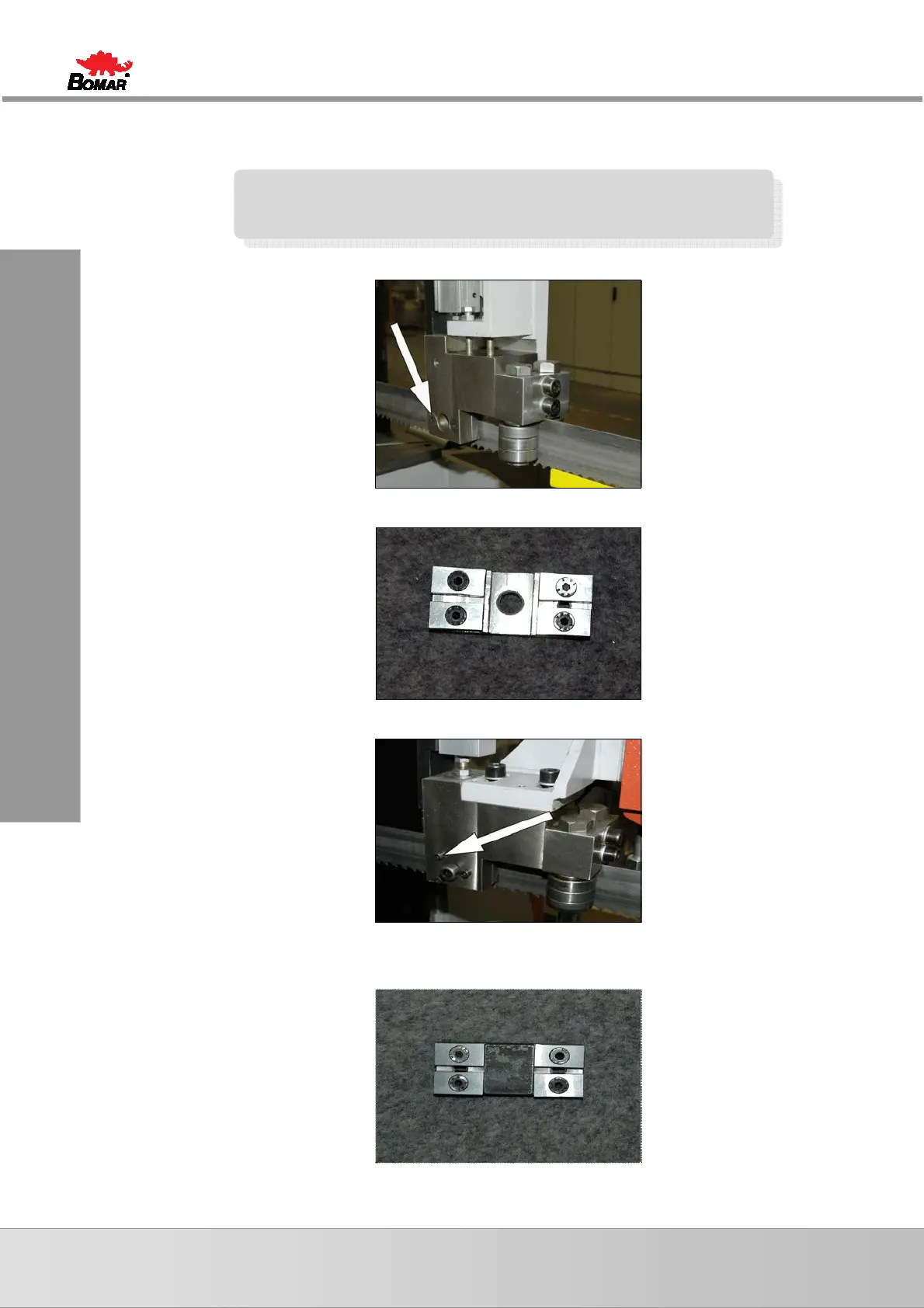

4.7.3. Hard metal guides replacement
If the hard metal guides cannot be adjusted, they have to be replaced.
1. Disconnect the hose from the cooling agent.
2. Release 2 screws.
3. Remove fix hardmetal guidepost.
4. Release all 3 screws (see arrow).
5. Release center M10 screew after remove retaining ring.
6. Remove moveable hardmetal guide.
Attention:
Hard metal guides must be replaced together on both guiding
cubes!
