74 | ACS 651/751 | Product descriptionen
Description Order number
Edge protector - Left handle F 002 DG3 4VA
Edge protector - Right handle F 002 DG3 4VB
Can assembly - POE Oil F 002 DG2 4H7
HP-LP connector F 002 DG3 4XK
3.3 Description of unit
0
2
4
6
8
10
0
5
10
15
20
25
30
35
12
HP
LP
14
!
2
ABC
3
DEF
6
MNO
ABC
123
8
TUV
7
PQRS
5
JKL
4
GHI
1
c
i
+
*
9
WXYZ
0
]
1 2 3
4
7
6
5
459897_18Nkv
8
9
10

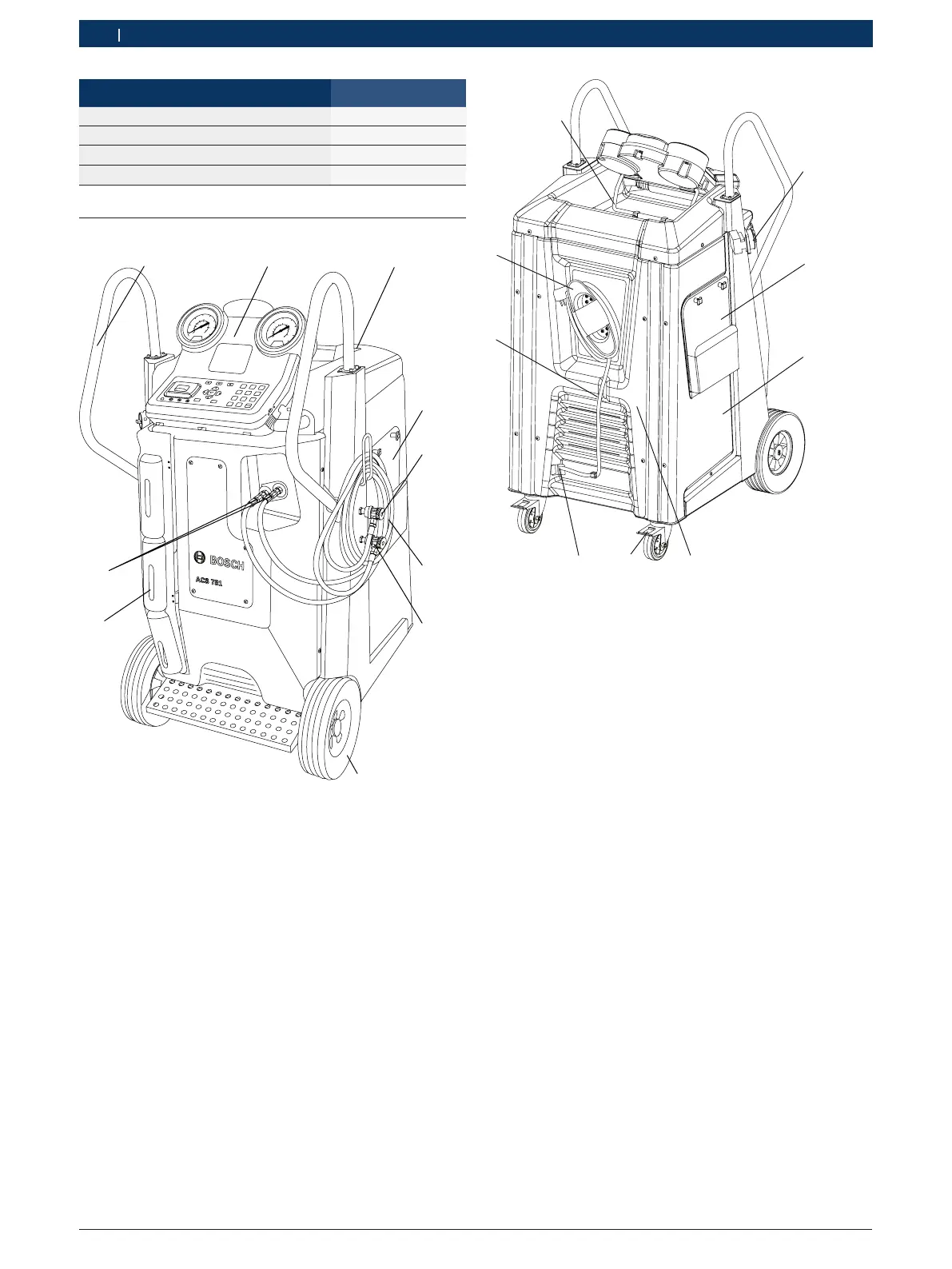

Fig. 1: Front view
1 Handle
2 Human Machine Interface (HMI)
3 Top panel
4 Service hatch
5 HP quick coupler
6 Service hoses
7 LP quick coupler
8 Front wheel
9 Front service hatch
10 Inline filters
459898_19Nkv
1
2
3
4
567
9
8
Fig. 2: Rear view
1. HMI support
2 Master switch
3 Service hatch
4 Left panel
5 Rear panel
6 Rear wheel with brake
7 Power inlet
8 Power cable
9 Cable holder
