4. Product description
4.1 Intended use
! If the BAT 115 and the scope of delivery are
operated contrary to the way specified by the
manufacturer in the operating instructions, the
protection provided by the BAT 115 and the
supplied accessories may be compromised.
The portable and network-independent BAT 115 was
developed for mobile use. It is used for non-invasive
testing of 6 volt and 12 volt starter batteries (lead-acid
batteries, AGM flat and spiral batteries, gel batteries,
EFB batteries) and inspection of 12/24 volt starting
systems for cars, water crafts, motorcycles and light
commercial vehicles. You can check the batteries either
in the vehicle while installed or when removed. It
displays the test results and is equipped with a printer
that can provide a printout of the measurement results.
Additional functions:
R Detection of bad cells
R Protection against reverse polarity
R Testing discharged batteries
R Tests as per EN, EN2, DIN, SAE, IEC, JIS, MCA
R Multi-lingual user interface
i For battery assessment, the BAT 115 must be
provided with the correct input of the battery type,
the cold start current (CCA) in amperes and the
battery standard (EN, EN2, DIN, SAE, IEC, JIS,
MCA). Information on cold start current, battery
standard and battery type can usually be found on
the battery housing of the battery manufacturer.
4.2 Scope of delivery
Designation Order number
BAT 115 –
Printer paper –
Battery clamp connection cable 1 681 355 004
Operating instructions 1 689 989 457
Alkaline 1.5V batteries, type AA (6x) –
4.3 Switching on and off
i BAT 115 has an on/off switch. BAT 115 is switched
on when the battery clamps are connected to
a vehicle battery and the internal batteries are
inserted and not discharged.
4.4 Product description

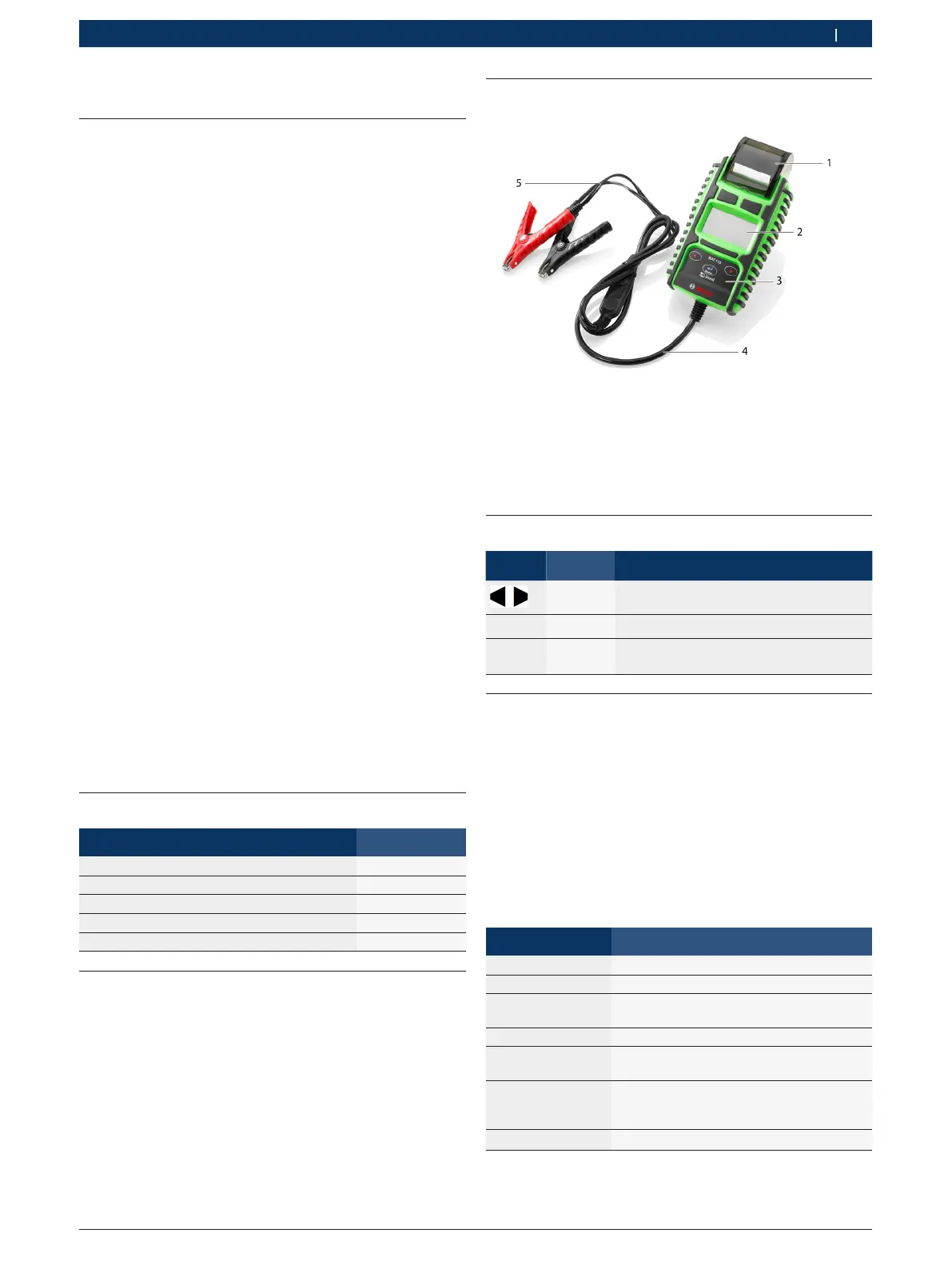

Fig. 1: BAT 115
1 Printer
2 Display
3 Function keys
4 Battery connecting cable
5 Battery clamp connection cable
4.5 Function keys
Symbol Name Function
ARROWS Scroll through the menu options.
E
ENTER Make selections or save changes
E
(3sec)
Back Back to last entry (not always possible)
4.6 Menu
1. Connect the BAT 115 to the vehicle battery.
 The BAT 115 is switched on. An evaluation of the
open circuit voltage is performed and displayed.
2. Select a menu item with  or  .
3. Open the menu item with E.
4. Perform desired change with  or  .
5. Adopt setting with E.
i Press E for 3 seconds to return to the previous
menu (not always possible).
Option Description
BATTERY TEST Start battery test (6V and 12V).
SYSTEM TEST Start system test (12V and 24V).
TEST COUNTER Shows a summary of the results of the
measurements taken.
LANGUAGE Select a language for BAT 115.
CUSTOMIZE Enter additional information on all
printed test results.
Time and date Set the date and time.
Current data is displayed and changed
with E.
BRIGHTNESS Set the display contrast of BAT 115.
