Project Configuration | 9
Bosch Motorsport Manual_C_80 39/144

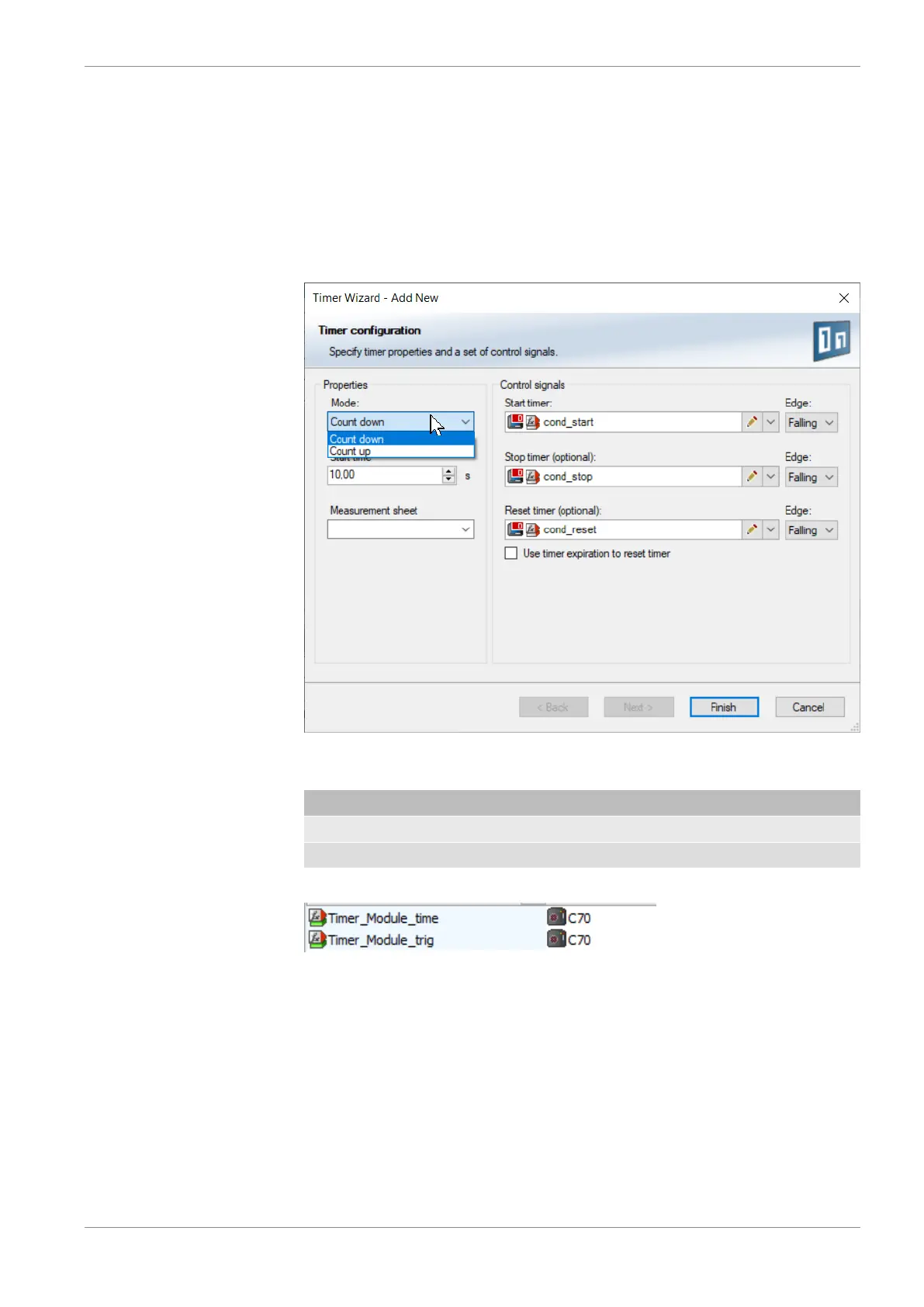

9.6 Timer Module
The Timer Module is designed to implement timing triggers, i.e. for rallye stage timing or
minimum pit time calculations. Any event in the system can be used for starting, stopping
and resetting the timer.
Up counting mode and down counting mode are available, triggers are fired at set time
(up counting) or at zero (down counting). The running timer will keep its state over a
power cycle.
The output channels for this module depend on the name used for the module and are
called …_time and …_trig.
Measurement label Function
name_time actual timer value
name_trig trigger set by timer alarm
In this example, the module is named “Timer_Module”. Resulting channels are:
9.7 GPS Trigger Module
The GPS Trigger Module triggers depending on GPS-position, similar to the GPS-laptrig-
ger. There are 2 x 10 GPS trigger points available, 10 in the parameter and 10 in the
macro-based mode.
If the car passes one of the trigger points, an output signal is set to 1 shortly. Each trigger
requires a defined latitude, longitude and detection range.
