Recording | 14
Bosch Motorsport Manual_C_80 89/144

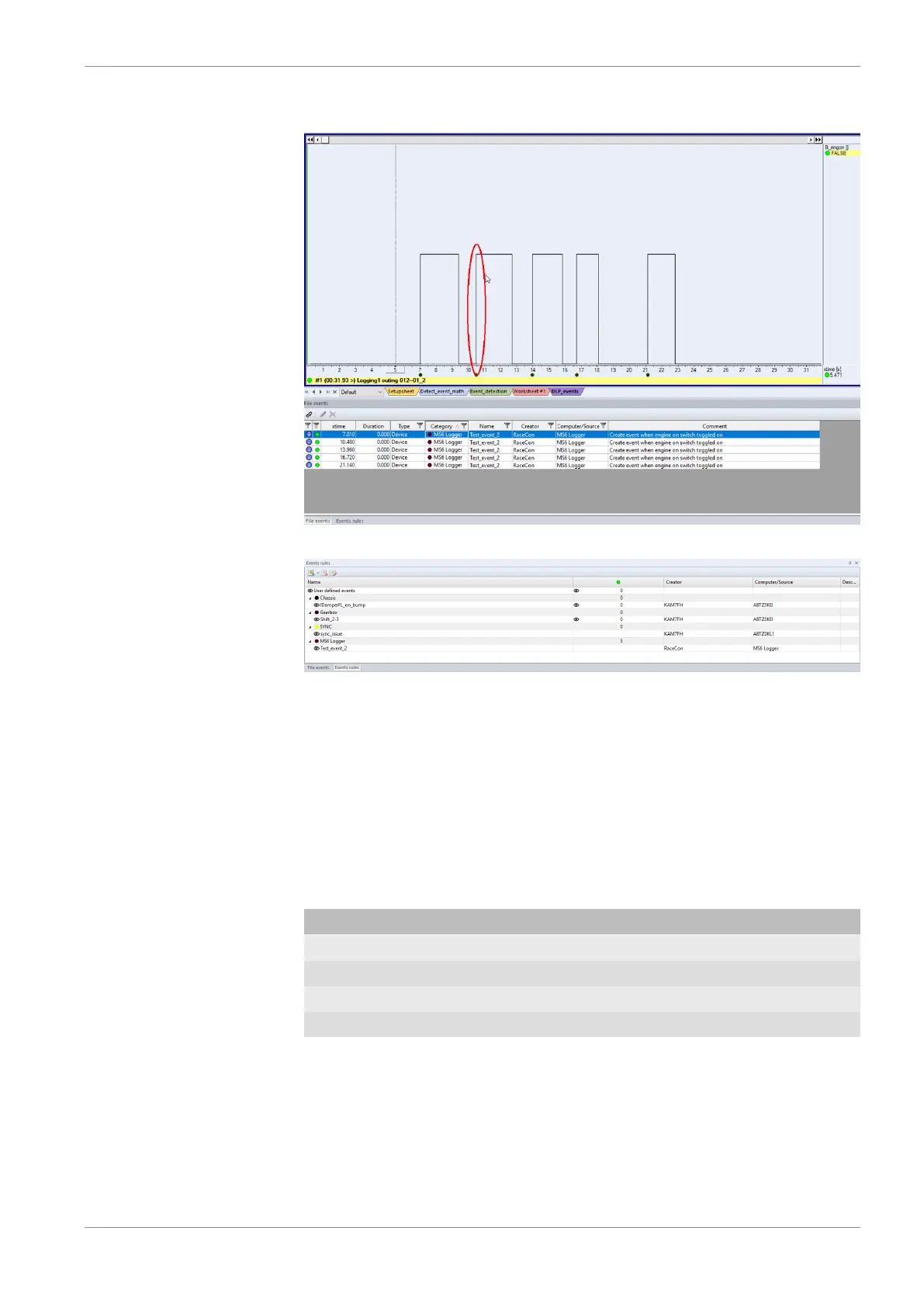

Display in WinDarab:
14.4 USB Recording
This function requires the installation of Software Upgrades. Look into the datasheet of
your device, to see which upgrades are available for your device.
Software Upgrade USB_DATA enables USB recording. To activate Software Upgrade
USB_DATA, enter the license key as described in the chapter ‘Feature activation’ [}19].
For USB recording, Software Upgrade FULL_LOG_1 should also be enabled.
Wiring harness
Bit Value
USB_Device_Power Power (red)
USB_Device_DP D+ (green)
USB_Device_DN D- (white)
USB_Device_Gnd GND (black)
For further information, see the pinlayout of the device.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
