Online Measurement and Calibration | 13
Bosch Motorsport Manual_C_80 75/144
13 Online Measurement and Calibration
C 80 configuration
– System configuration (channel + display configuration, CAN I/O, etc.) is stored in the
C 80
– Use RaceCon to create and download configuration from the PC to C 80 Communica-
tion interface: Ethernet
– Communication protocol: XCP
Online Measurement and Calibration
– System status and diagnosis
– Check and calibrate sensors in the vehicle
– Live display of sensor values on the PC
– Use RaceCon for diagnosis, online measurement and calibration
– Communication interface: Ethernet
– Communication protocol: XCP
13.1 Setting up an online measurement
C 80 supports online measurement of sensor values and diagnostic variables.

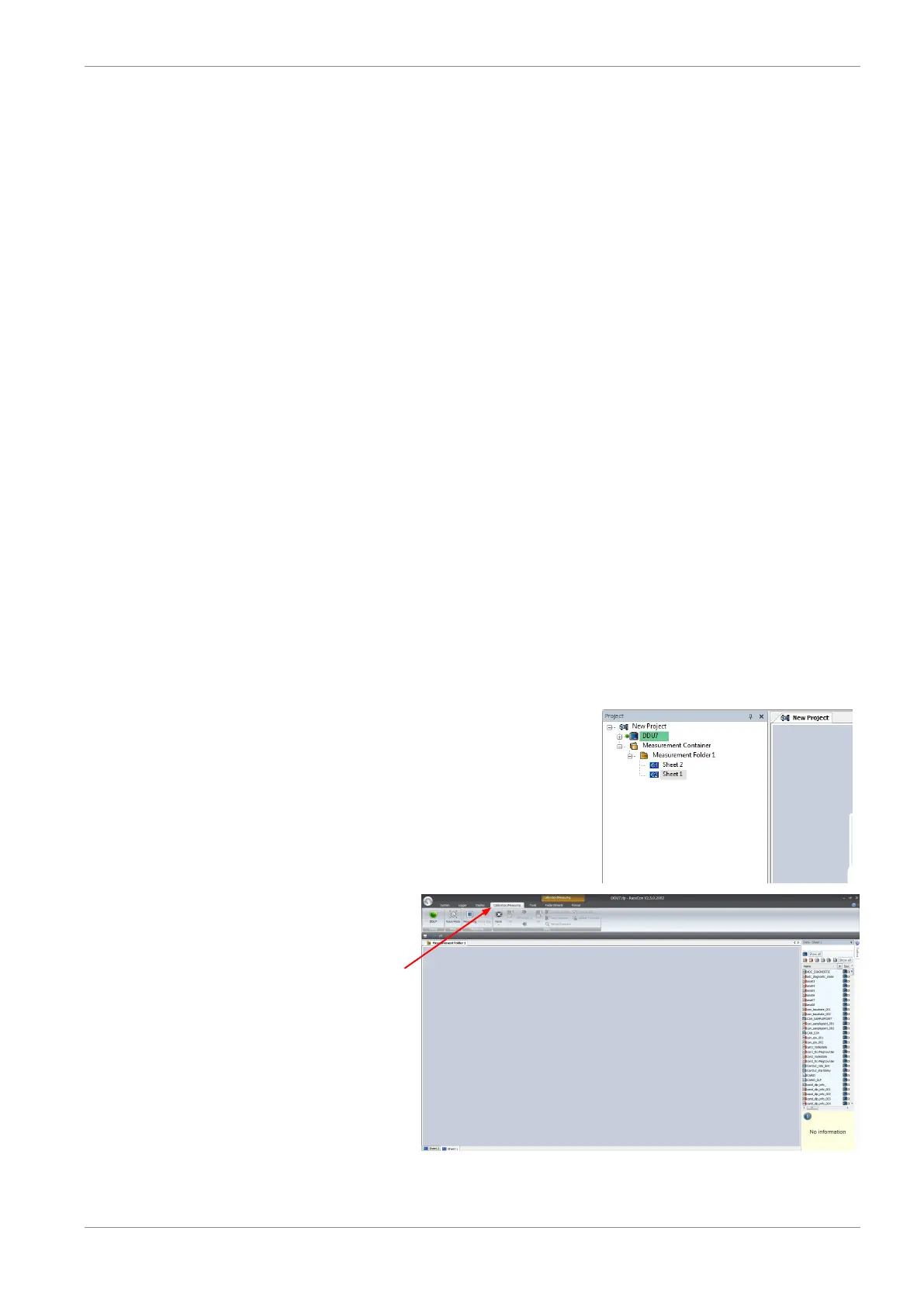

1. Expand ‘Measurement Container’ and ‘Measurement Folder 1’ in the Project Tree and
double-click on ‘Sheet1’. Alternatively, click on the ‘Calibration/Measuring’ tab to
open the window directly.
‘Sheet 1’ opens in a new ‘Calibration/Measuring’ window.
RaceCon changes
automatically
to "Calibration/
Measuring"
2. Click on the ‘Folder/Sheets’ tab, which appears when you are in the ‘Calibration/
Measurement’ window, to create a new measurement folder.
