20.3 Sensor recommendation
The system has been tested with the Navilock NL-8004P MD6 Serial PPS Multi GNSS Re-
ceiver. This sensor is based on a U-Blox 8 chipset and is fully configurable with the
Navilock “U-Center” software. To use this sensor with Bosch Motorsport components the
transfer rate, the satellite system and the update rate need to be reconfigured. More in-
formation about the configuration can be found in the Appendix.
20.3.1 Configuration of the recommended Navilock
NL-8004P MD6 Serial PPS Multi GNSS Receiver
For the sensor configuration, the sensor needs to be connected to the Navilock software
“U‑Center” which is available from Navilock free of charge. Navilock offers a USB connec-
tion cable for the sensor.

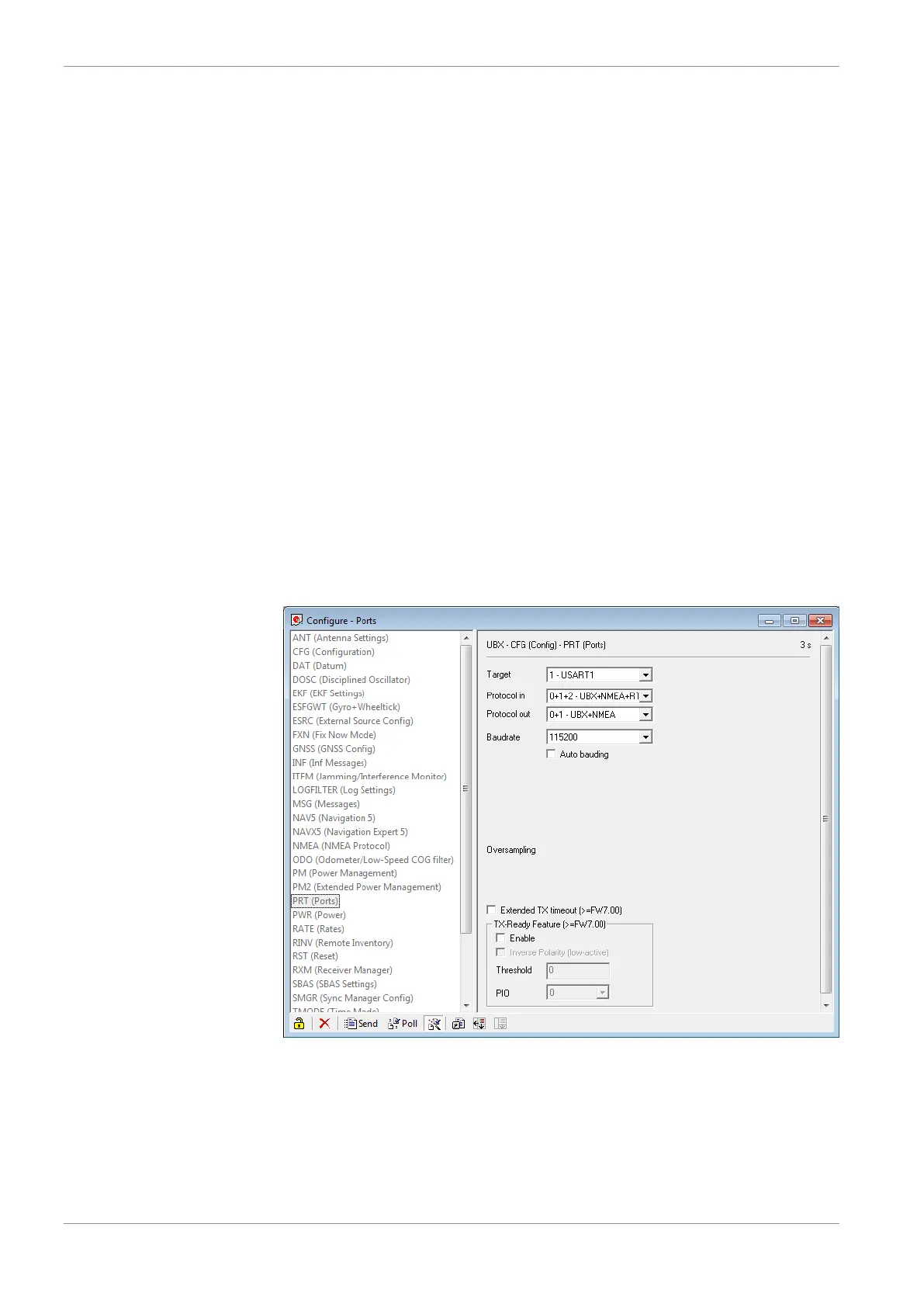

In “U-Center” click “View” – “Configuration View” to start the configuration. The follow-
ing 3 points have to be changed:
Transfer Rate
– Click on “PRT (Ports)”.
– Change the baud rate to a fixed value, this value needs to meet the setting of Race-
Con. For a good signal quality we recommend 115,200 baud.
– Click on “Send” to store the new setting in “U-Center”.
– Click on “CFG (Configuration)”.
– Click on “Send” to save the new setting on the sensor.
