9 Project Configuration
9.1 Math Channels
– Arithmetic and logical operations on up to 4 measurement channel(s)
– Numerical result
– Result can be used as input source for various display elements (numeric elements,
alarms, bargraphs) and further calculations in the whole RaceCon project
Creating a new Math Channel

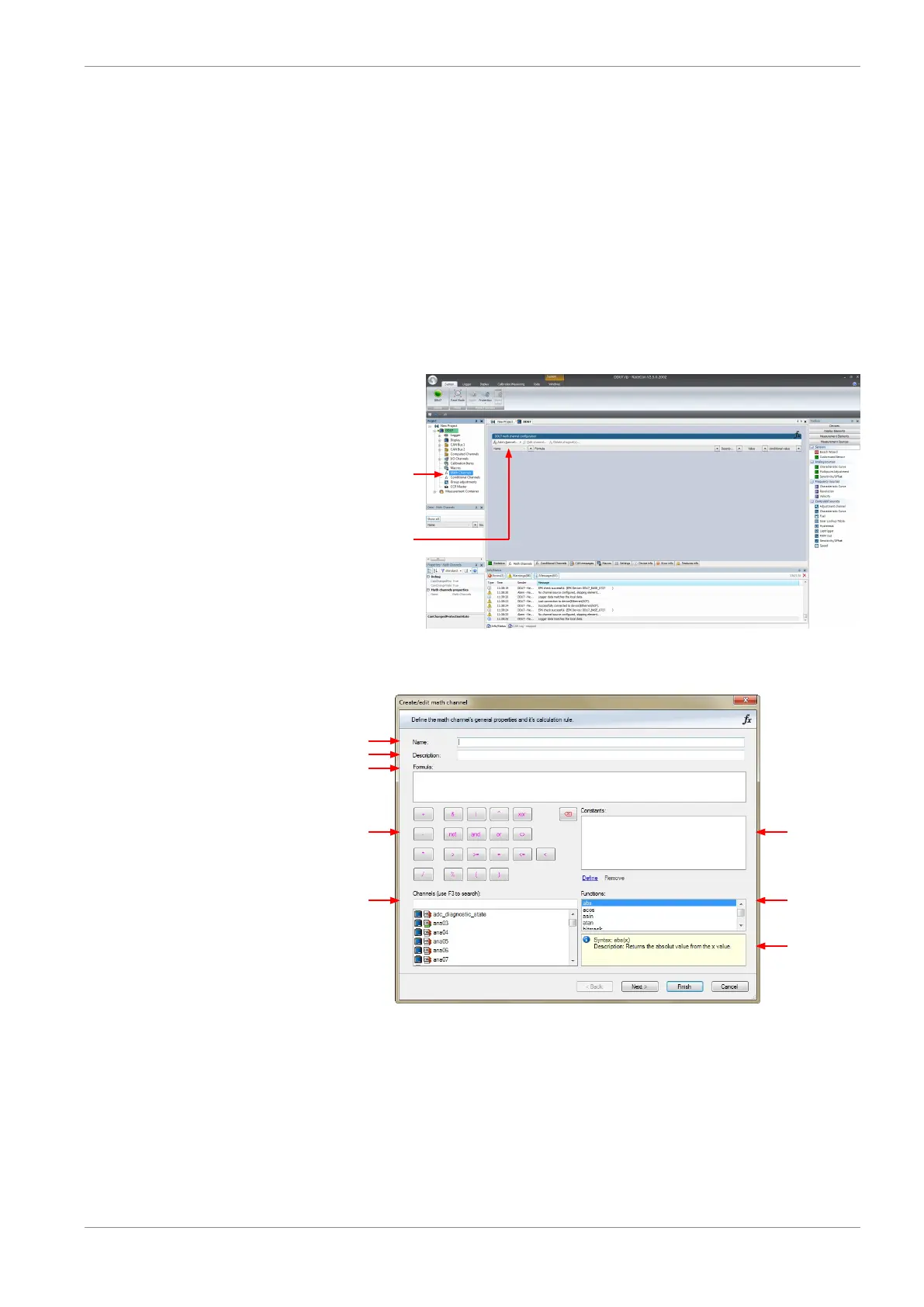

1. Follow the steps shown in the screenshot.
1st: Double-click on
"Math Channels" in
the Project tree
2nd: Click on
"Add channel"
The “Create/edit math channel” window appears.
2. Define the math channel using the following configuration possibilities:
a)
b)
c)
d)
e)
f)
g)
h)
a) Enter the name of the math channel.
b) Enter a description of the math channel.
c) Enter the formula.
d) Select the logical operator.
e) Choose a measurement channel.
f) Define a value that can be used as a constant in the formula.
g) Choose a function.
h) Describes the function selected above.
Click ‘Finish’ when done. The math channel is displayed in the C 80 math channel window.
