21 Fuel Consumption Calculation
21.1 Setting up fuel consumption calculation and
tank management

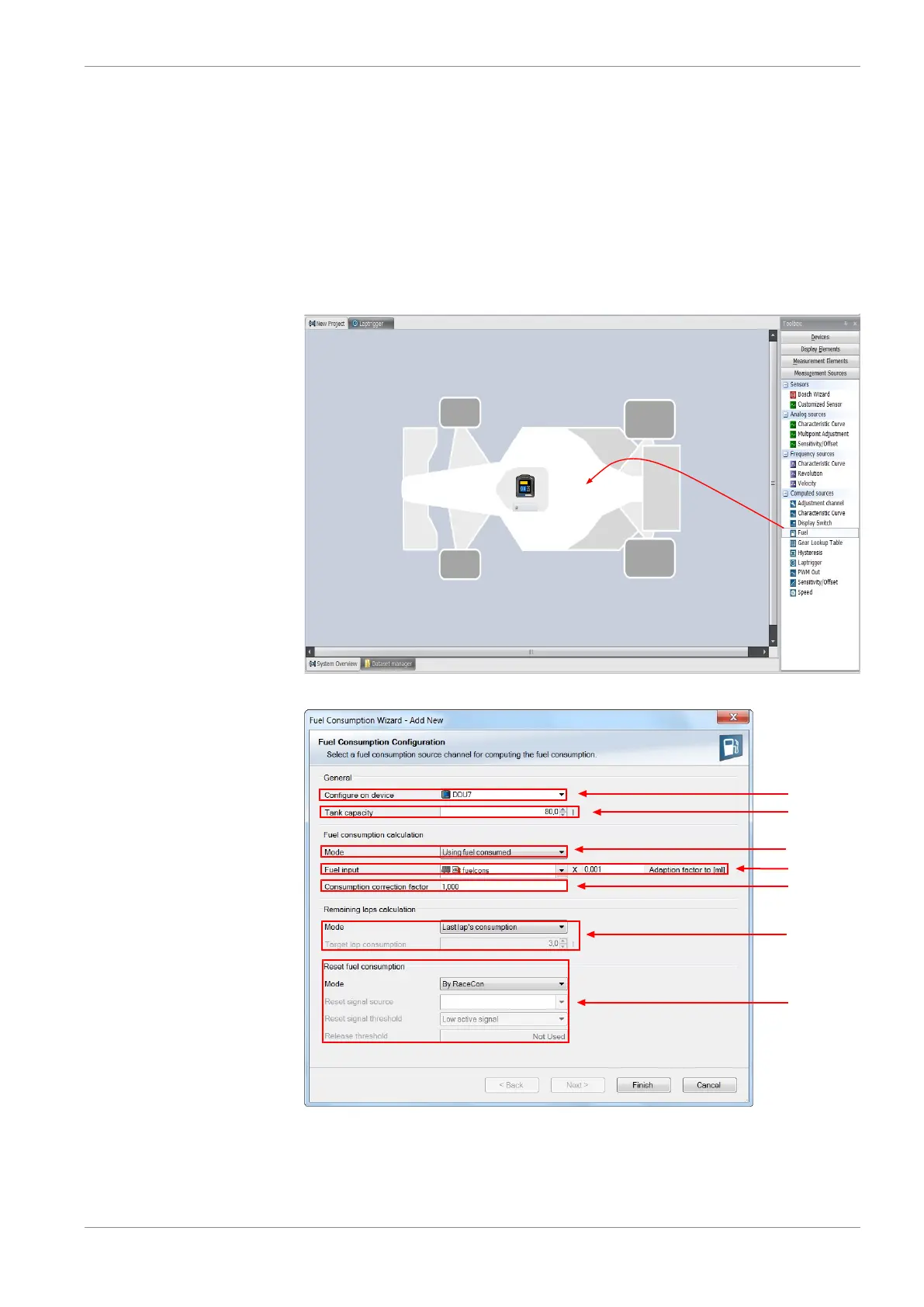

1. Select ‘Measurement Sources’ in Toolbox.
2. Drag ‘Fuel’ element and drop it on the vehicle in System Overview. Do not drop it on
the C 80!
Drag + Drop
A ‘fuel consumption wizard‘ opens.
b)
a)
c)
d)
e)
f)
g)
a) Change device for fuel calculation, if desired.
b) Enter tank capacity of vehicle.
c) Choose calculation mode:

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
