First Steps | 8
Bosch Motorsport Manual_C_80 21/144

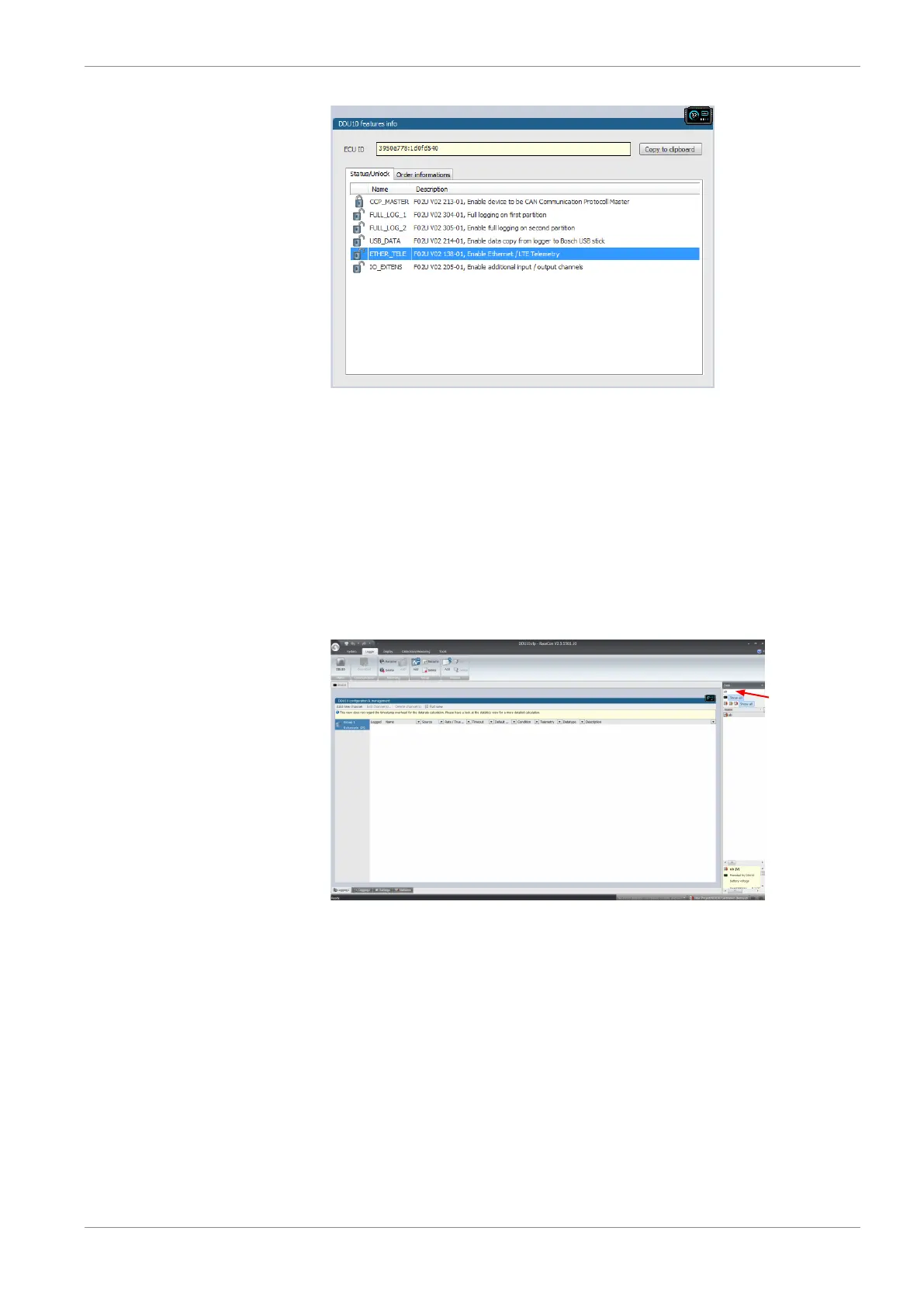

6. Perform these steps to activate other features you purchased.
7. Switch the car’s ignition off and on again to cycle the power of C 80.
8.4 First recording (Quick Start)
This chapter explains the configuration of the recording of the battery voltage channel.
See chapter ‘Recording [}84]’ for a detailed instruction to configure recordings.
1. Click on the ‘Logger’ tab to go to the page ‘Logger’.
2. Use the search bar in the ‘Data’ window, to search for ‘ub’ (measurement channel for
battery voltage).
Search for 'ub'
3. Drag and drop the ‘ub’ measurement channel into the recording area.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
