9 | Project Configuration
36/144 Manual_C_80 Bosch Motorsport
9.4 Condition Combination
– Combination of several (up to 16) conditional channels for more complex calculations
– Logical results
– All conditions can be used globally in the whole C 80 project.
Creating a new Condition Combination

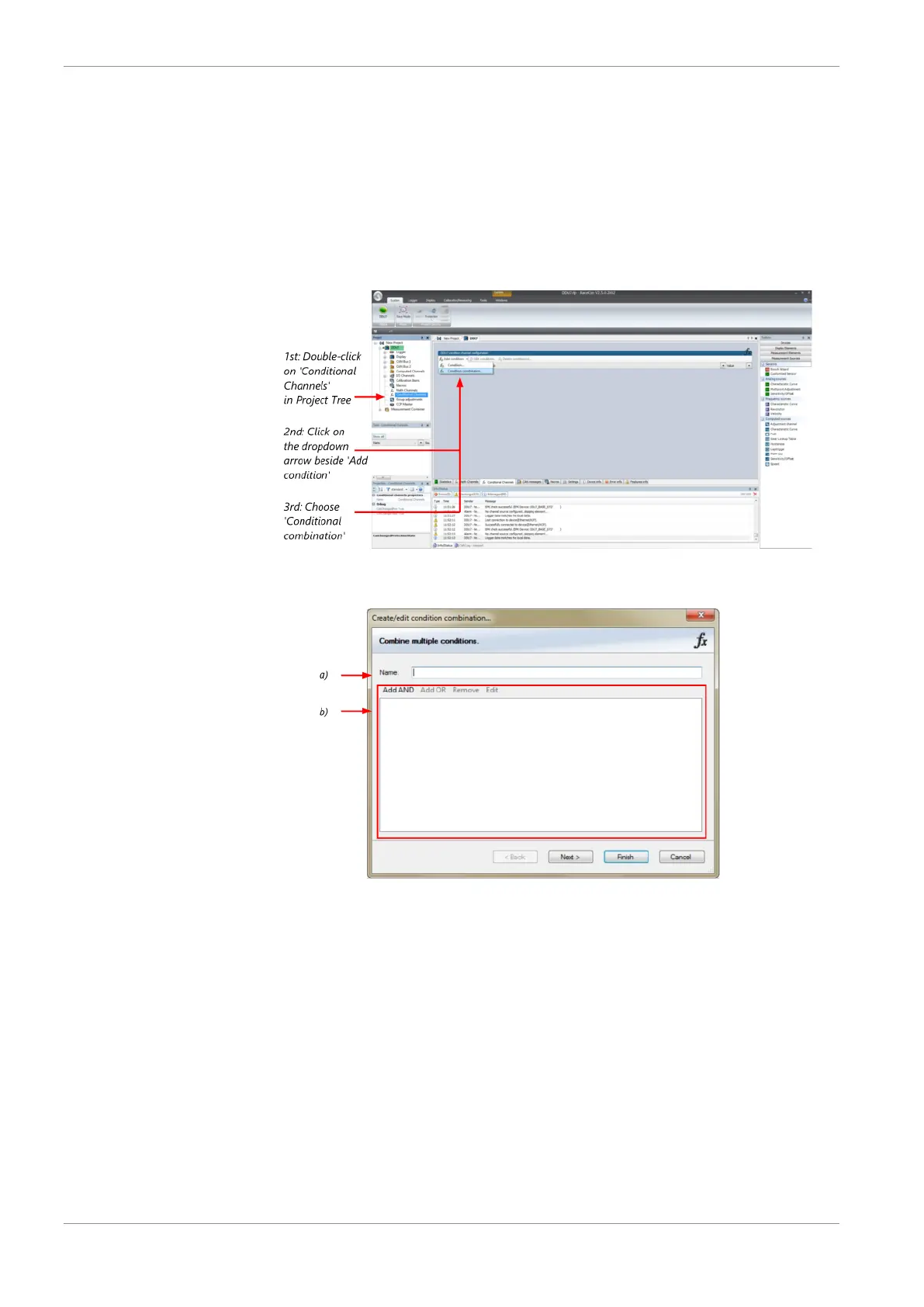

Follow the steps shown in the screenshot.
The ”Create/edit condition combination” window appears. Define the condition combina-
tion, using the following configuration possibilities:
a) Enter the name of the condition combination.
b) Create the condition combination in the window.
– Choose a channel (condition, conditional function, math, measurement channel
with binary values) to be compared.
– Combine multiple conditions, by adding 'AND' or 'OR' relations.
– To negate a condition, click with the right mouse-button on the condition and se-
lect 'Negation (!)'.
– Combine several (up to 16) conditions.
Click ‘Next’ to go to the next page. Choose the output setting of the result:
