15 | Telemetry System LTE 65
94/144 Manual_C_80 Bosch Motorsport
15 Telemetry System LTE 65
– Support for long-range online telemetry
– Individual programmable team code
– Fast block – slow block mechanism
– Programmable data rate
– Ethernet or RS232 interface
– Full online track coverage on almost all tracks
15.1 Software setup

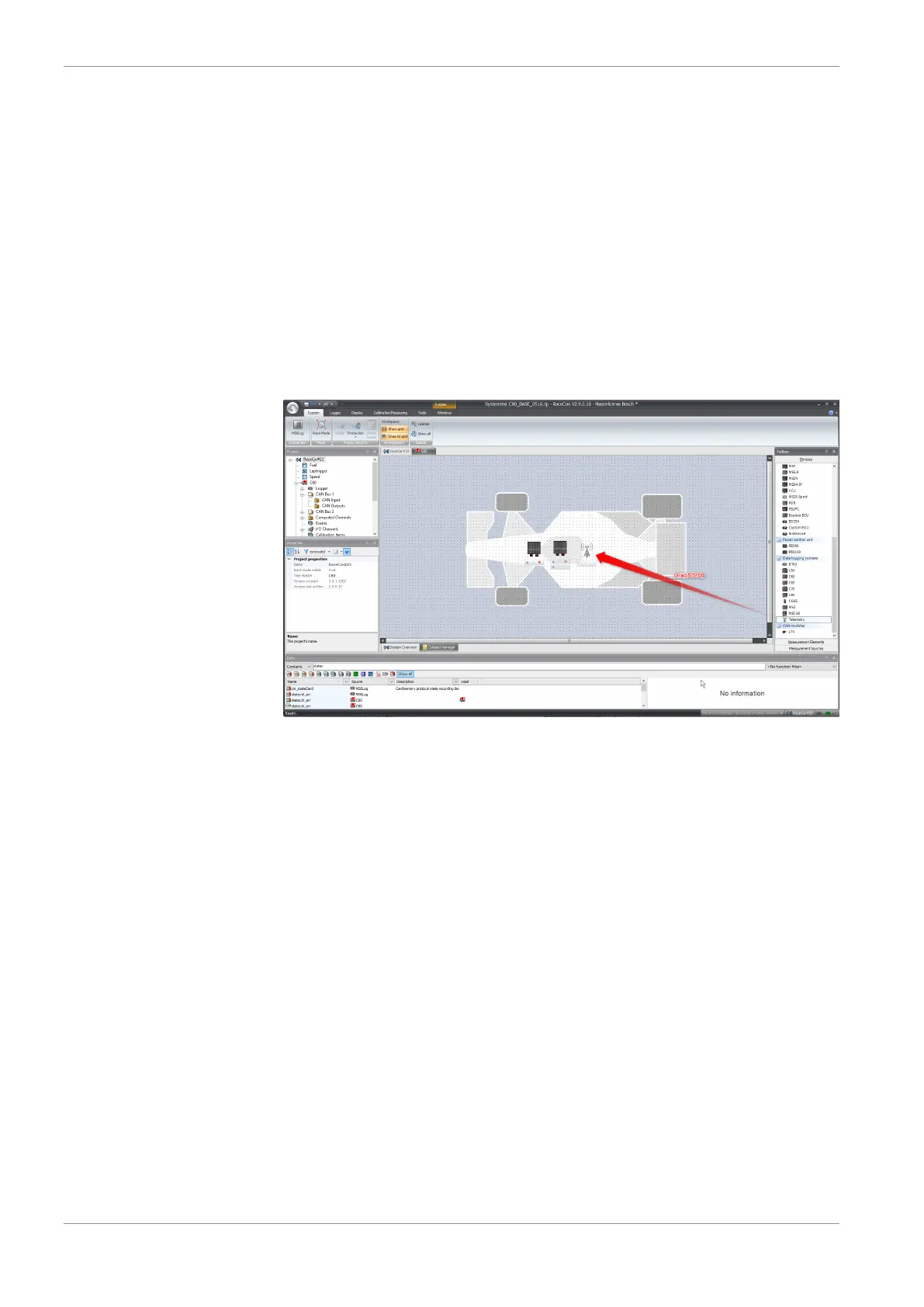

Drop Telemetry from Toolbox into system overview.
Adding channels to telemetry
1. Expand the list of ‘Loggers’ by clicking on ‘+’ in the C 80 Project Tree.
2. Double-click on ‘Recording’ in C 80 Project Tree.
The recording configuration is displayed in the Main Area.
3. Click ‘Edit channel(s)’.
The ‘Edit Recording Channels’ window appears.
4. Choose between ‘Fast/Slow block’ transmission.
Using fast block/slow block transmission
C 80 telemetry has a bandwidth 200 kBit/s, the used bandwith can be adjusted to cope
with the transmitting system. The bandwidth has to be divided into channel information
to be transmitted high-frequently and low-frequently using the ‘fast/ slow block’ setting.
Channels are grouped into 8 blocks which are transferred each cycle:
– Fast block (Block 1) is transferred every cycle and used for a high-frequent transmis-
sion of channel information (e.g. speed, rpm).
– Slow blocks (Block 2…n) are transferred every n-th cycle and used for a low-frequent
transmission of channel information (e.g. tire pressure, oil temperature).
