8 | First Steps
26/144 Manual_C_80 Bosch Motorsport

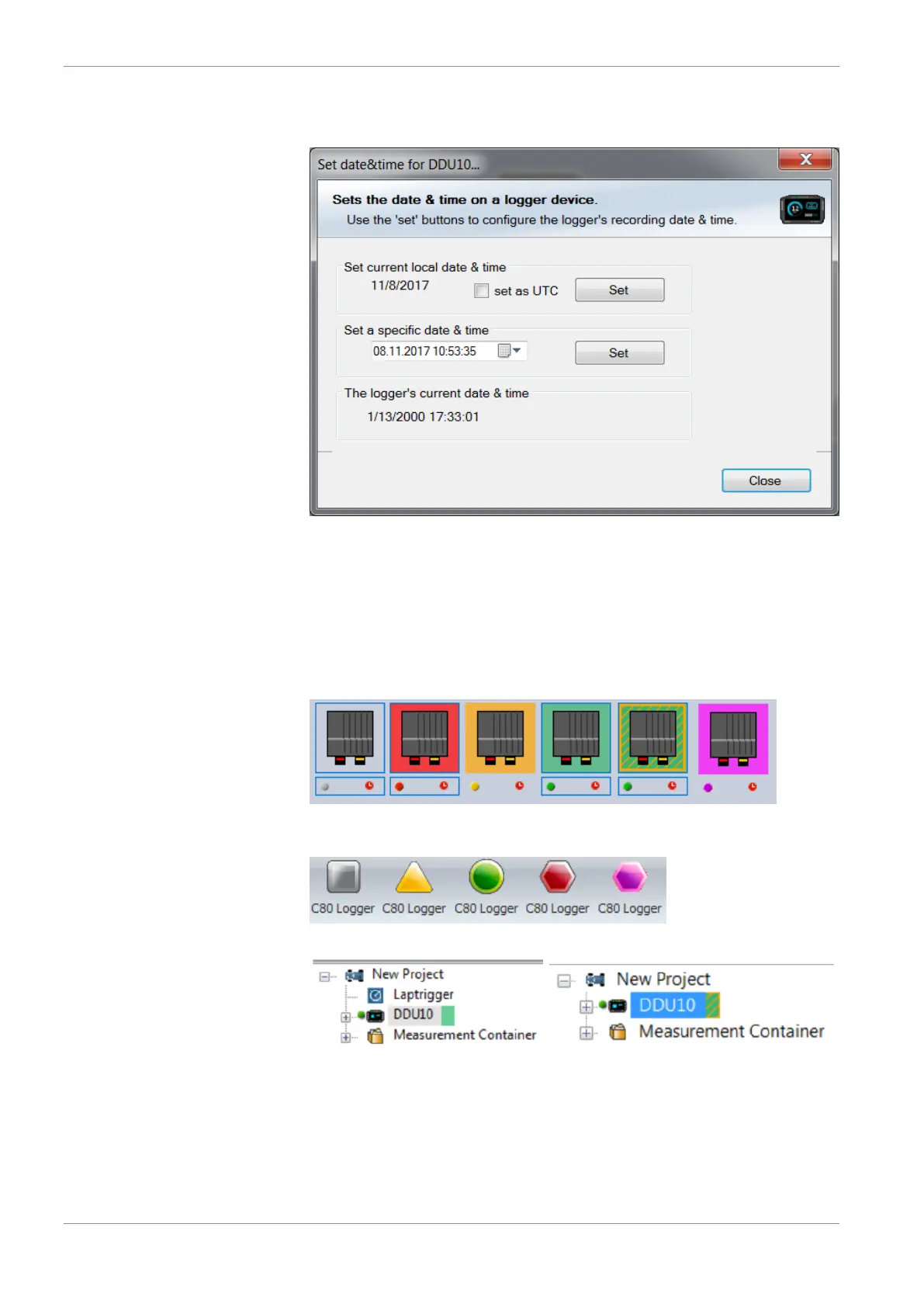

5. At ‘Set a specific date & time’ click and type on the value you want to change, or
choose from the dropdown menu.
8.6 Color indication
The color indication in RaceCon visualizes different messages, such as differences between
tool and device, status of the device configuration or the accrual of errors.
Visible color indications:
– In the status area in the upper left corner.
– As a background, as well as a little dot around the display icon in the ‘System win-
dow’.
– As a colored stripe beside the device name in the project tree.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
