Bosch C 80 User Manual

GPS Sensor | 20
Bosch Motorsport Manual_C_80 131/144
Satellite System
– Click on “GNSS (GNSS Config)”.

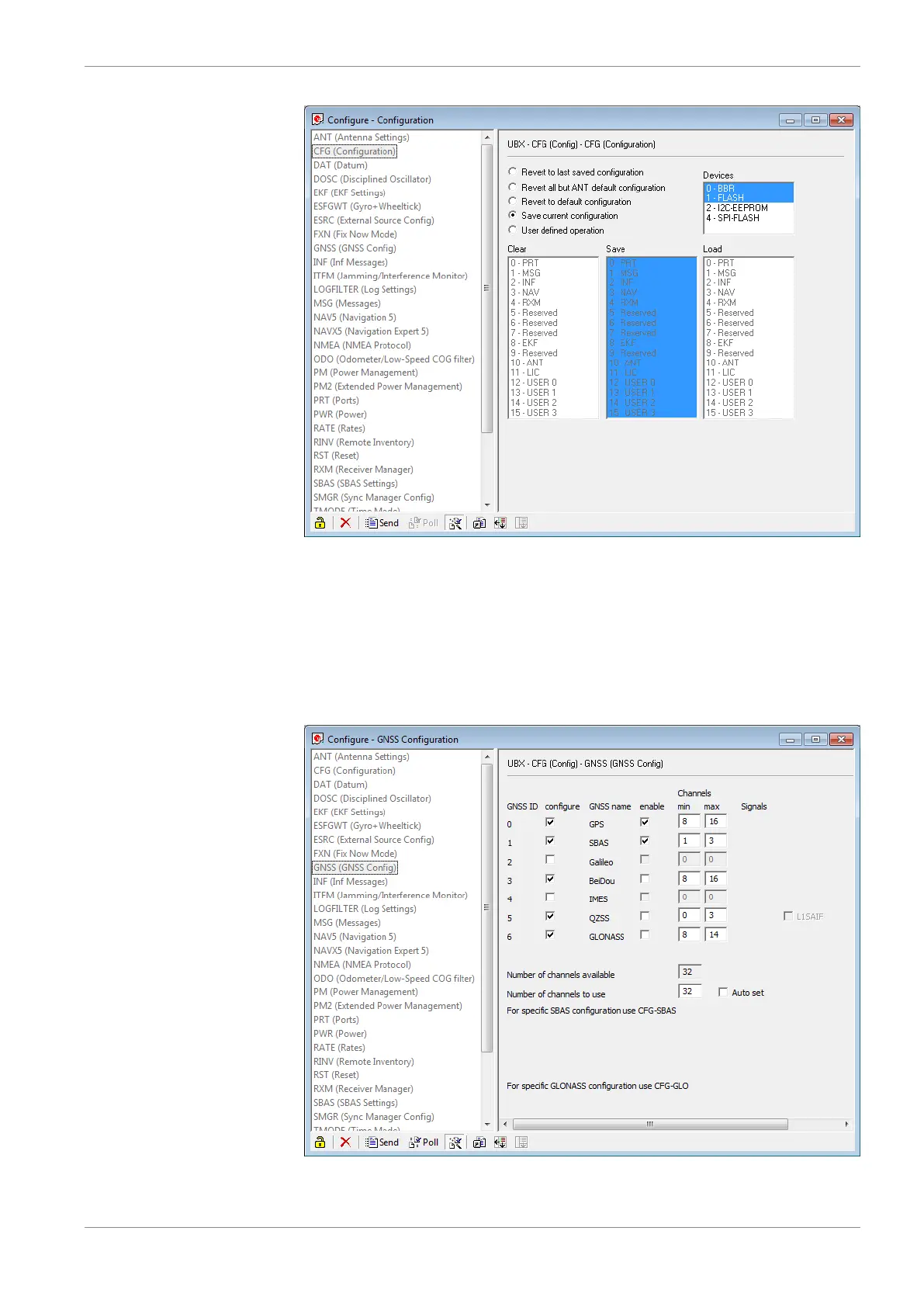

– Set the ticks as shown in the following picture.
– Click on “Send” to store the new setting in “U-Center”.
– As during configuration step 1, click on “CFG (Configuration)”.
– Click on“Send” to save the new setting on the sensor.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
