CAN channel configuration
10.2.3 Extracting data from CAN bus
Representation: Byte
Some CAN devices need to be addressed by a byte represented CAN channel. The ad-
dress can be assigned in this window and is illustrated by a bargraph.
a)
b)
c)
d)
e)

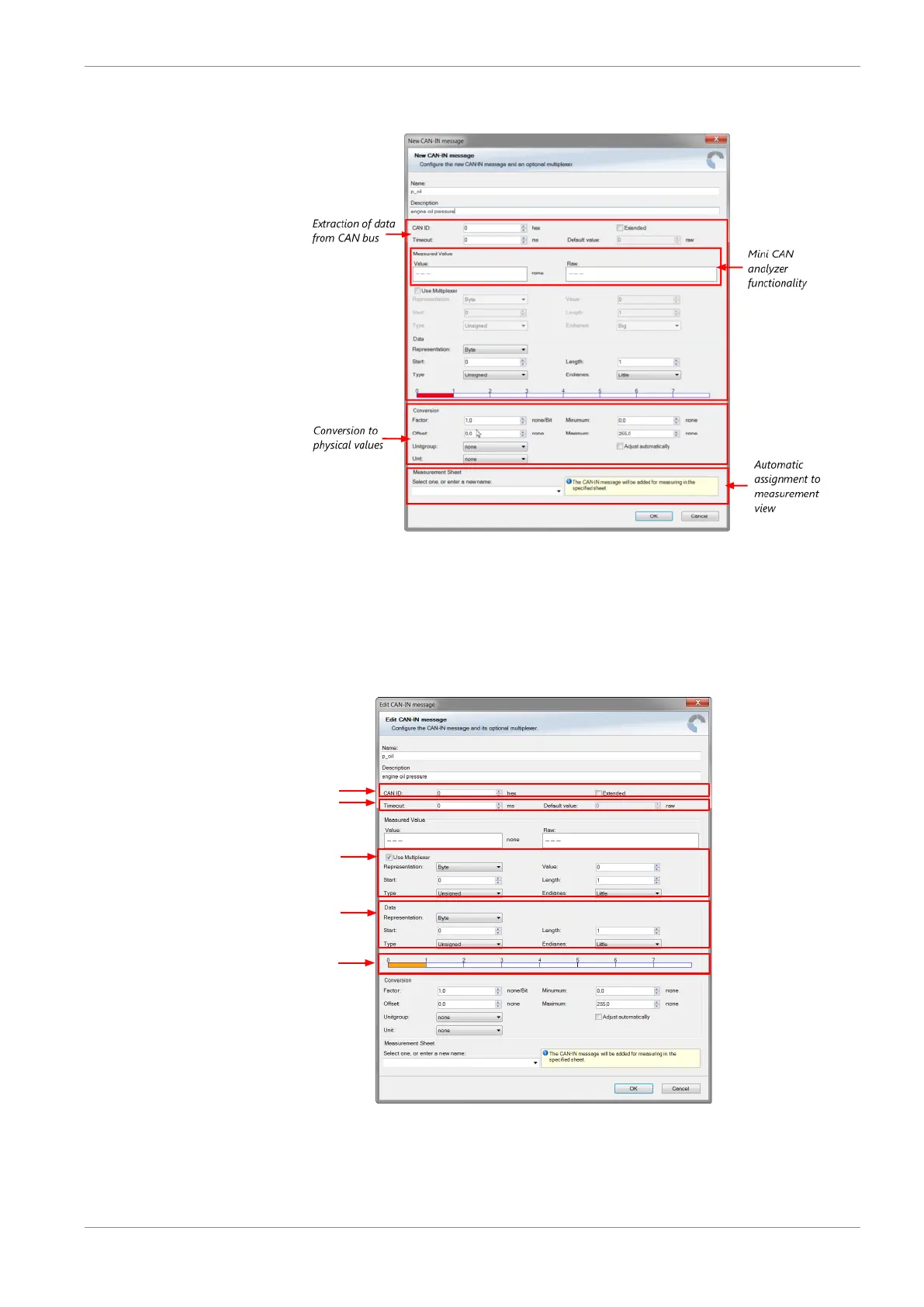

a) Enter CAN message ID. If extended IDs (29 bit) are used, check the box.
b) If replacement values are used, specify time-out period and raw value.
c) If a multiplexer (row counter) is used, check the box.
