radiation from radiators positioned in front. When the direction of the receiver changes, e.g.
with varying seat arrangements, mount the radiators in the corners of the room (see the next
figure).

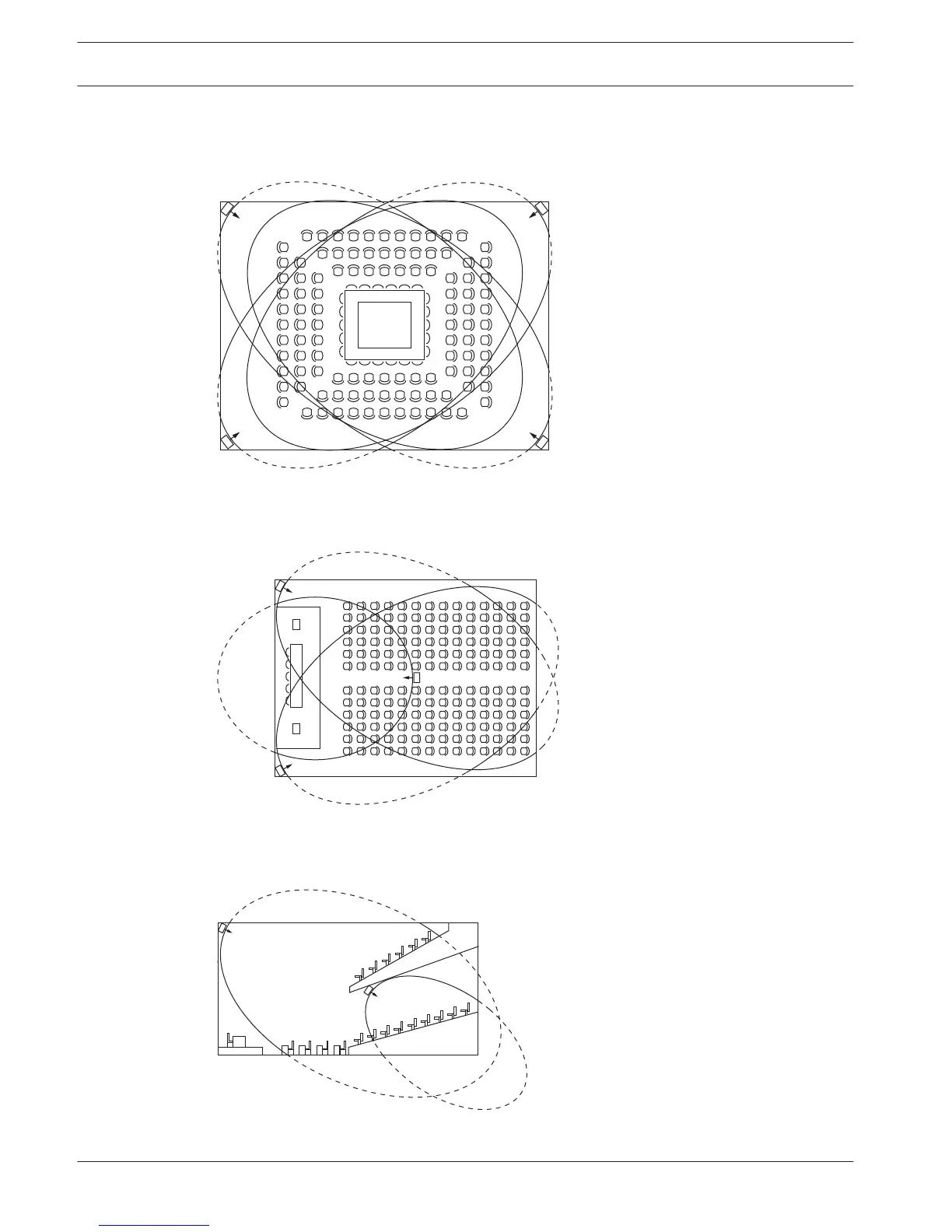

Figure 4.14: Radiator position for covering seats in a square arrangement
If the audience is always directed towards the radiators, you do not need radiators at the back
(see the next figure).
Figure 4.15: Radiator positioning in a conference hall with auditorium seating and podium
If the path of the infrared signals is partially blocked, e.g. under balconies, you should cover
the 'shaded' area with an additional radiator (see the next figure).
Figure 4.16: Radiator for covering seats beneath a balcony
28
en | Planning Language Distribution System
2013.11 | V1.4 | Operation manual Bosch Security Systems B.V.
