Bosch INTEGRUS - Configuration; Integrus transmitter

Configuration
Integrus transmitter
Overview
All configuration and operation options of the transmitter are set via an interactive menu,
using a 2x16 character LCD display and a 'turn-and-push' menu button. The next figure gives
an overview of the menu structure. A general description of how to use the menu is given in
section Navigate through the menu, page 49. Some examples are given in section Example,
page 50. The detailed descriptions of all menu items can be found in section Setup the
transmitter, page 51.
4
4A
Transmission
Nr. of Ch.
3
3A
Ch. Quality
Network Mode
2
1
0
Transmitter
Status
Fault Status
Monitoring
Enquiry
<
Back
Setup
Serial Number
Ch. Names
C. Settings
C. Overview
Aux. Input
Level Aux. L
Level Aux. R
Level Inputs
Unit Name
Mini Radiator
Headphone
Defaults
3B
HW Version
3C
FPGA Version
3D
FW Version
4C
4B
4D
4E
4F
4G
4H
4I
4J
4K
4L
4M
4N
4O
4P
Language list

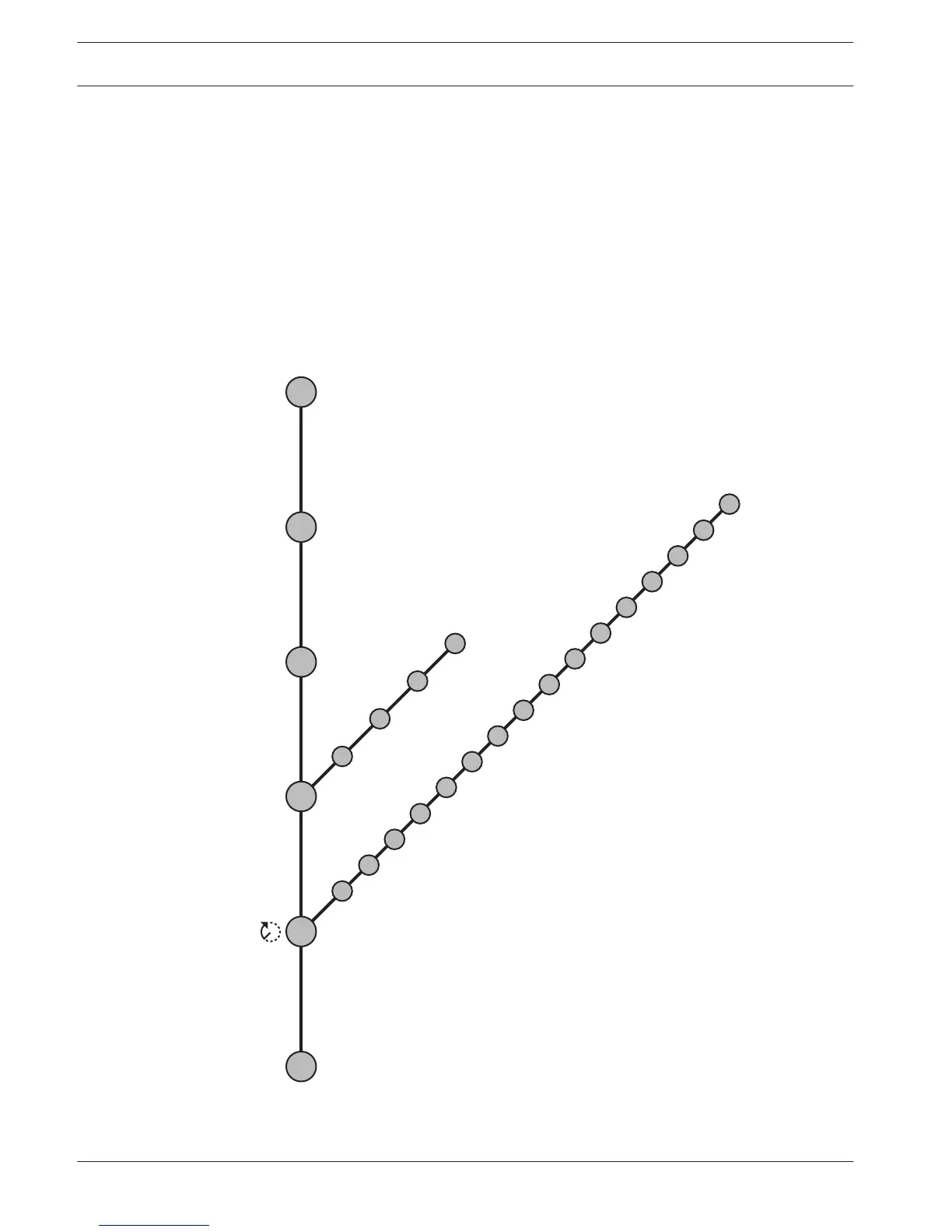

Figure 7.1: Menu overview
7
7.1
7.1.1
48 en | Configuration Language Distribution System
2013.11 | V1.4 | Operation manual Bosch Security Systems B.V.
