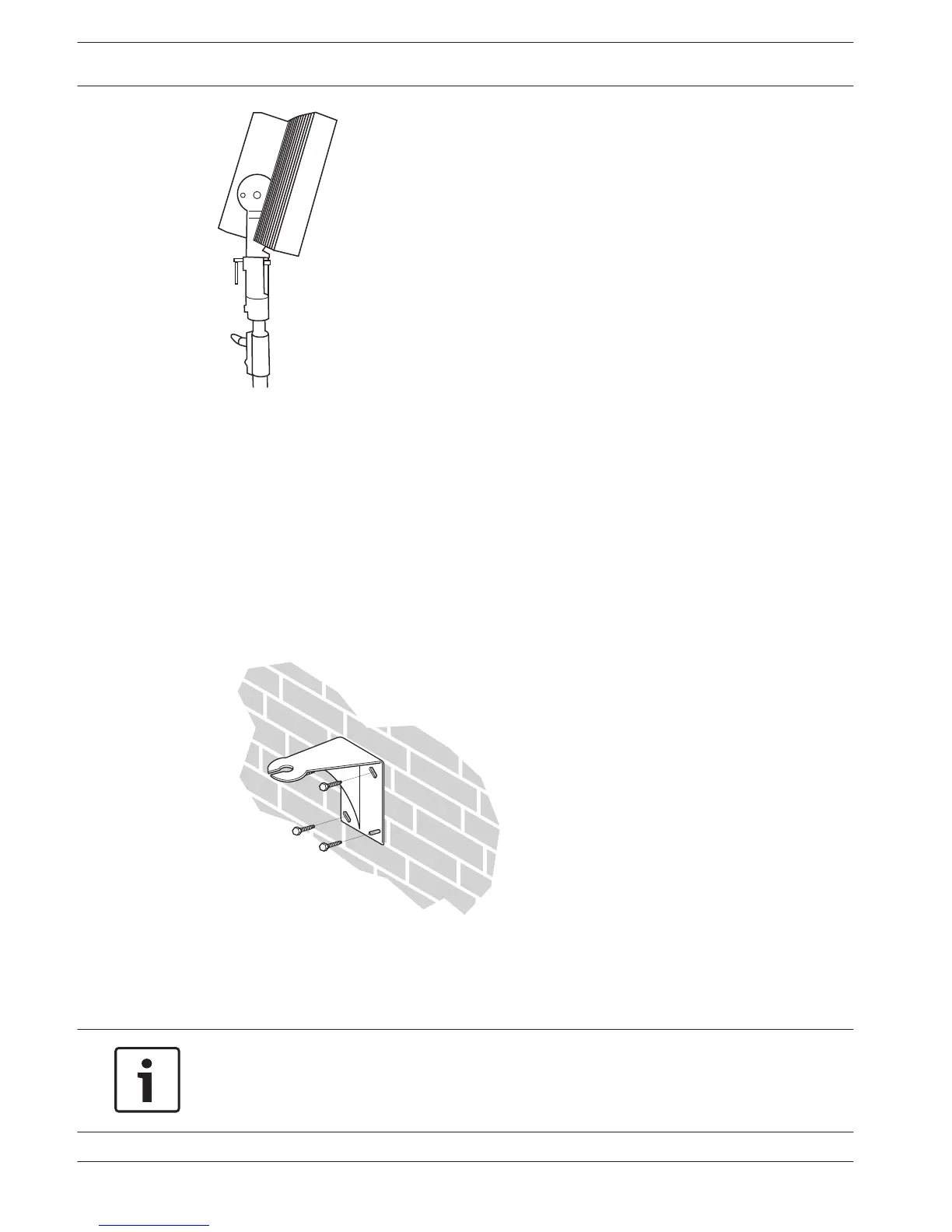

Figure 5.8: Attaching the radiator inclusive suspension bracket and stud to the floor stand
The top of the floor stand is screwed into the suspension bracket (see previous figure). The
bracket is supplied with both metric and Whitworth threaded plates, and is therefore
compatible with most standard floor stands. For floor stands, the mounting angle can be set
at 0°, 15° or 30°.
Mount radiator on a wall
For wall mounting, an extra wall bracket (LBB 3414/00) is required (must be ordered
separately). This bracket is attached to the wall by means of four bolts (see the next figure).
Figure 5.9: Attaching the wall mounting bracket to a wall
Notice!
The four bolts used to attach the bracket must each be able to withstand a pull-out force of
200 kg (440 lb). The bolts and plugs delivered with the LBB 3414/00 wall bracket are only
intended for mounting the unit on a solid brick or concrete wall.
5.3.4
38 en | Installation Language Distribution System
2013.11 | V1.4 | Operation manual Bosch Security Systems B.V.
