Four holes of 10 mm in diameter and 60 mm in depth must be drilled using the drilling pattern
(see the next figure).

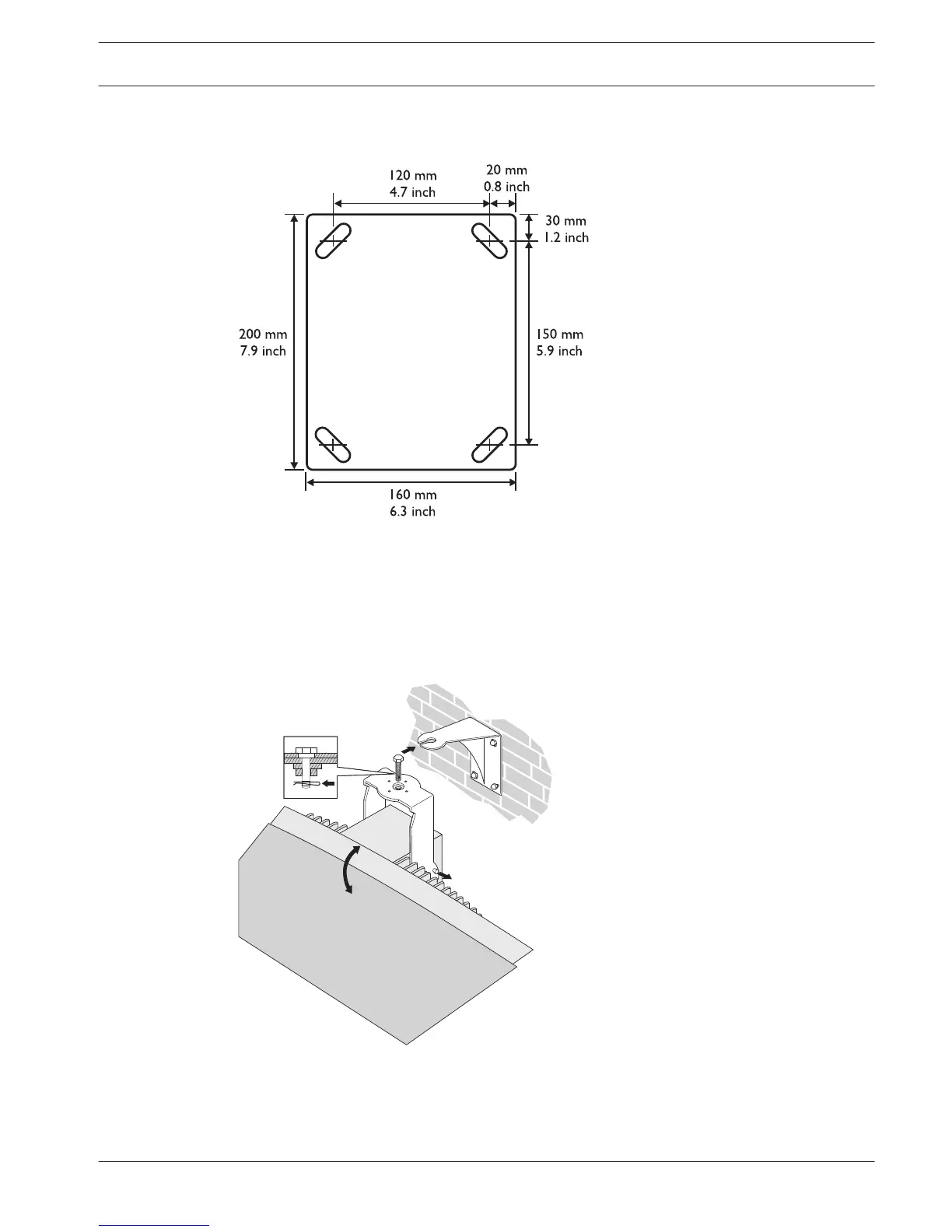

Figure 5.10: LBB 3414/00 wall mounting bracket showing dimensions and drilling pattern
The radiator (plus suspension bracket) is attached to the wall bracket by sliding the mounting
bolt over the slot on the wall bracket and then tightening it (see the next figure). A split pin is
then inserted into a small hole in the bolt to stop it from working loose (see inset in the next
figure).
Figure 5.11: Attaching the radiator to the wall mounting bracket
The vertical angle of the radiator can be adjusted between 0 and 90° in steps of 15°. The
horizontal orientation of the radiator can be adjusted by loosening the bolt then turning the
radiator to the required position.
