Bosch INTEGRUS - Cables and Connectors

Cables and connectors
Mains cables
Blue Neutral
Brown Live
Green/Yellow Ground

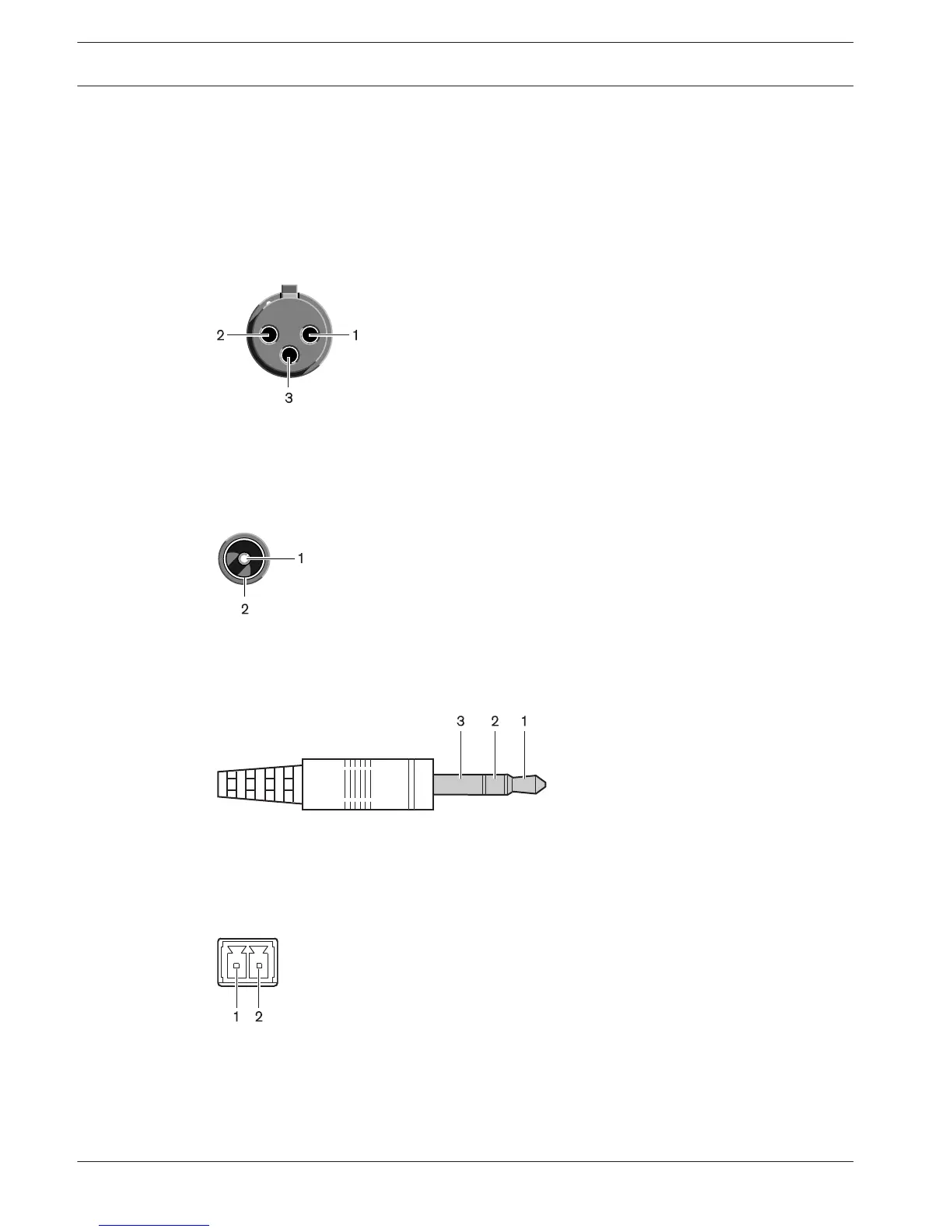

Audio cables: 3-pole XLR connector (female)
Pin 1 Ground
Pin 2 Signal +
Pin 3 Signal -
Audio cables: Chinch connector (male)
Pin1
Signal +
Pin 2 Signal -
Earphones: 3.5 mm Jack plug
Tip (1)
Signal left
Ring (2) Signal Right
Sleeve (3) Electrical ground/screen
Emergency switch: Terminal block
Connect the emergency switch to pin 1 and 2.
12.1.5
