Connect to another transmitter
The transmitter can be operated in slave mode to loop-through the IR radiator signals from a
master transmitter. One of the four radiator outputs of the master transmitter is connected
with an RG59 cable to the radiator signal loop-through input of the slave transmitter.
The Transmission mode of the slave transmitter must be set to ‘Slave’ (see section Set
transmission (4A), page 52).
1
2
3
4
5
6
1
2
3
4
5
6
MASTER SLAVE
1
2
3
4
5
6
1
2
Network
1
2
3
4
5
6
1
2
Network

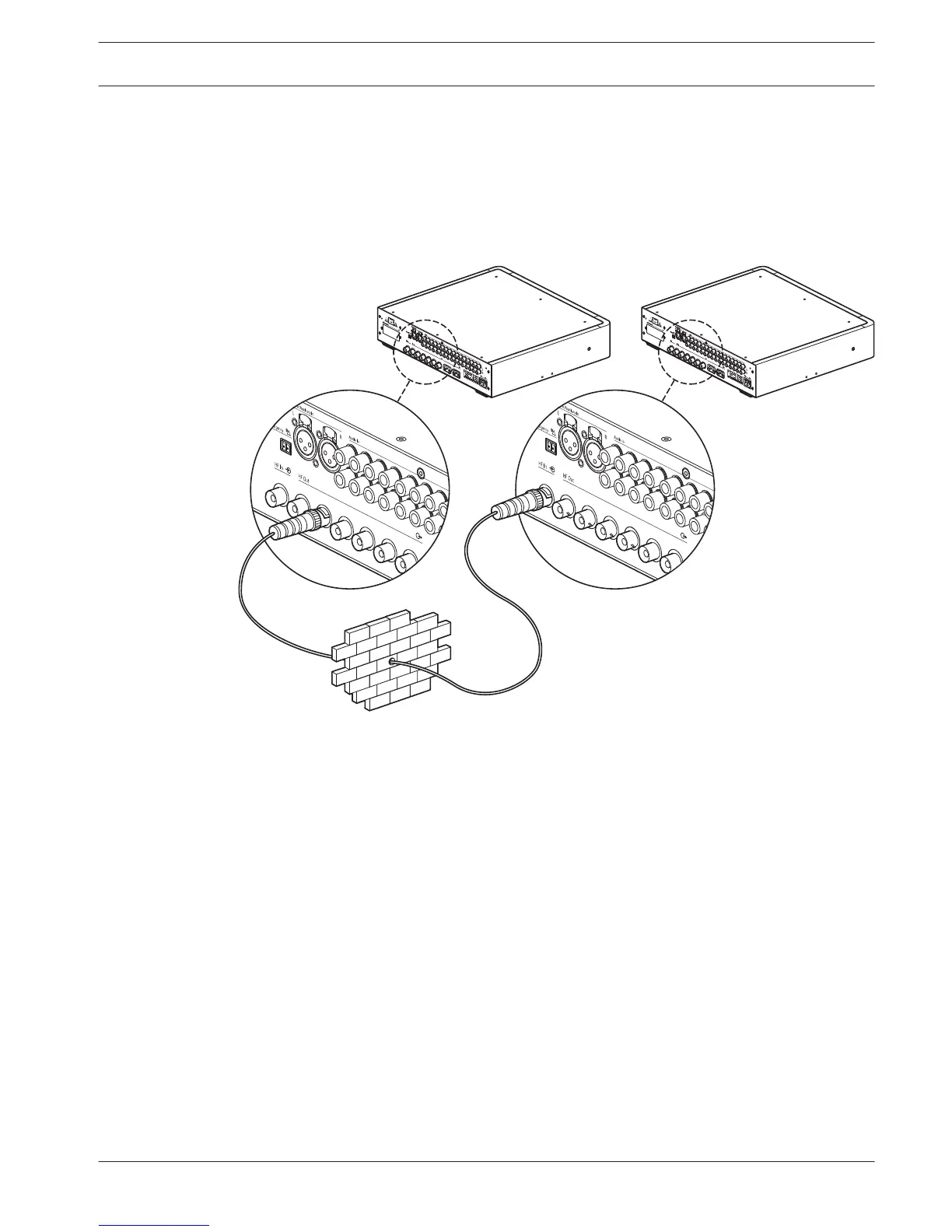

Figure 6.4: Connecting to another transmitter
6.5
