Overall Connection Diagram HMV01.1R-W0120

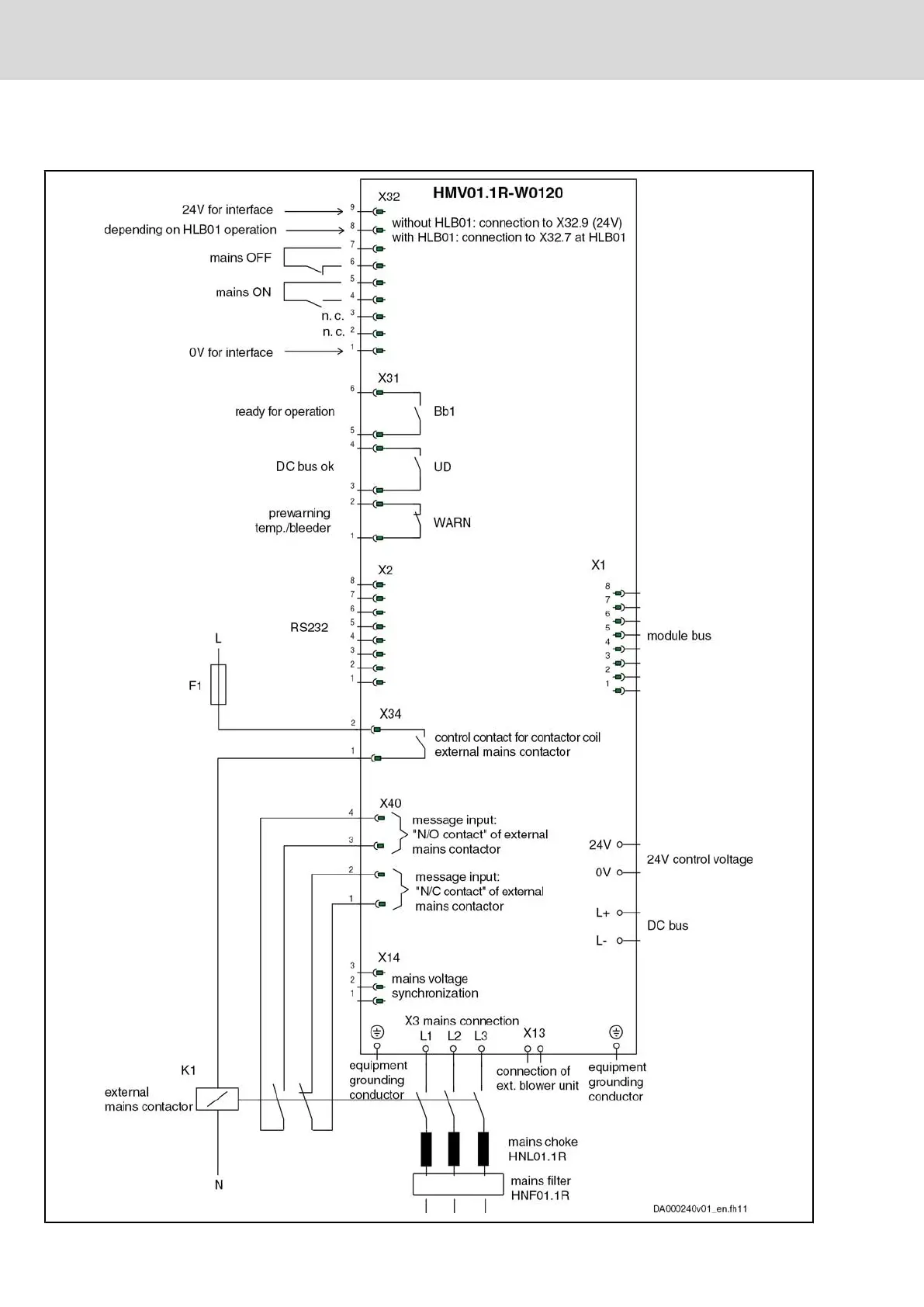

Fig.7-43: Connection diagram HMV01.1R-W0120
218/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
