f capacity utilization factor
h
nenn
maximum installation altitude for operation with nominal data
h
max_ohne
maximum installation altitude for operation with reduced nominal data
without using an overvoltage limiter
h
max
maximum installation altitude for operation with reduced nominal data
when using an overvoltage limiter

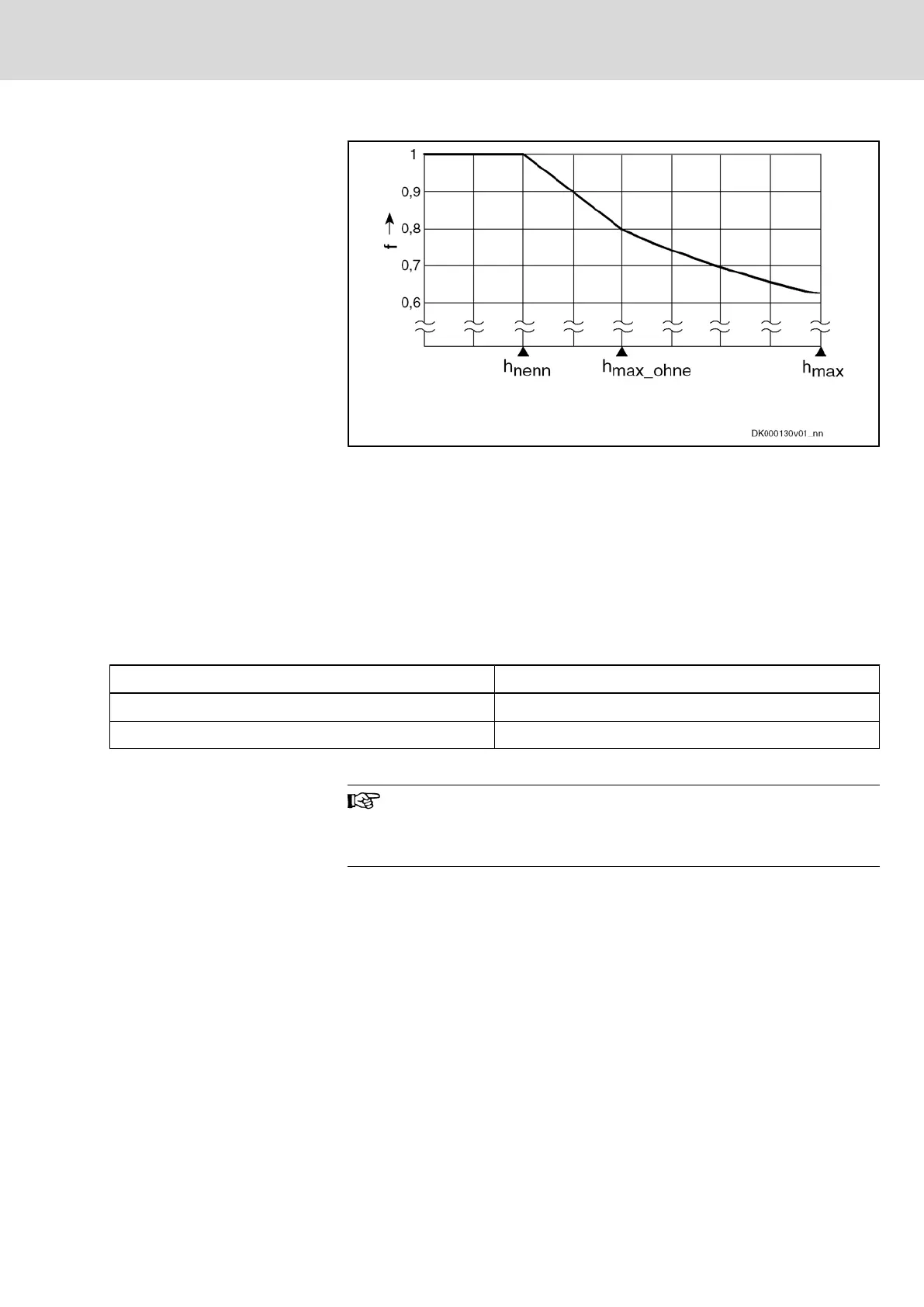

Fig.4-10: Capacity utilization at higher installation altitude
4.5 High-Voltage Test
According to the standard, the devices of the Rexroth IndraDrive range are
tested with high voltage.
Test Test rate
high-voltage test 100% (EN61800-5-1)
high-voltage and insulation test 100% (EN61800-5-1)
Fig.4-11: Applied standards
Before making a high-voltage test for the installation in which the
devices are used, disconnect all connections to the devices or dis‐
connect the plug-in connections to protect the electronic compo‐
nents.
4.6 Control Voltage Specification (24V Supply)
The data in the table below generally apply to the 24V supply of the devices of
the Rexroth IndraDrive range. For other data, such as power consumption and
inrush currents, see the technical data of the respective device.
Project Planning Manual | Rexroth IndraDrive Electric Drives
and Controls
| Bosch Rexroth AG 23/369
General Specifications of the Devices
