Bosch Rexroth IndraDrive HMV - Type Code and Identification; Type Code

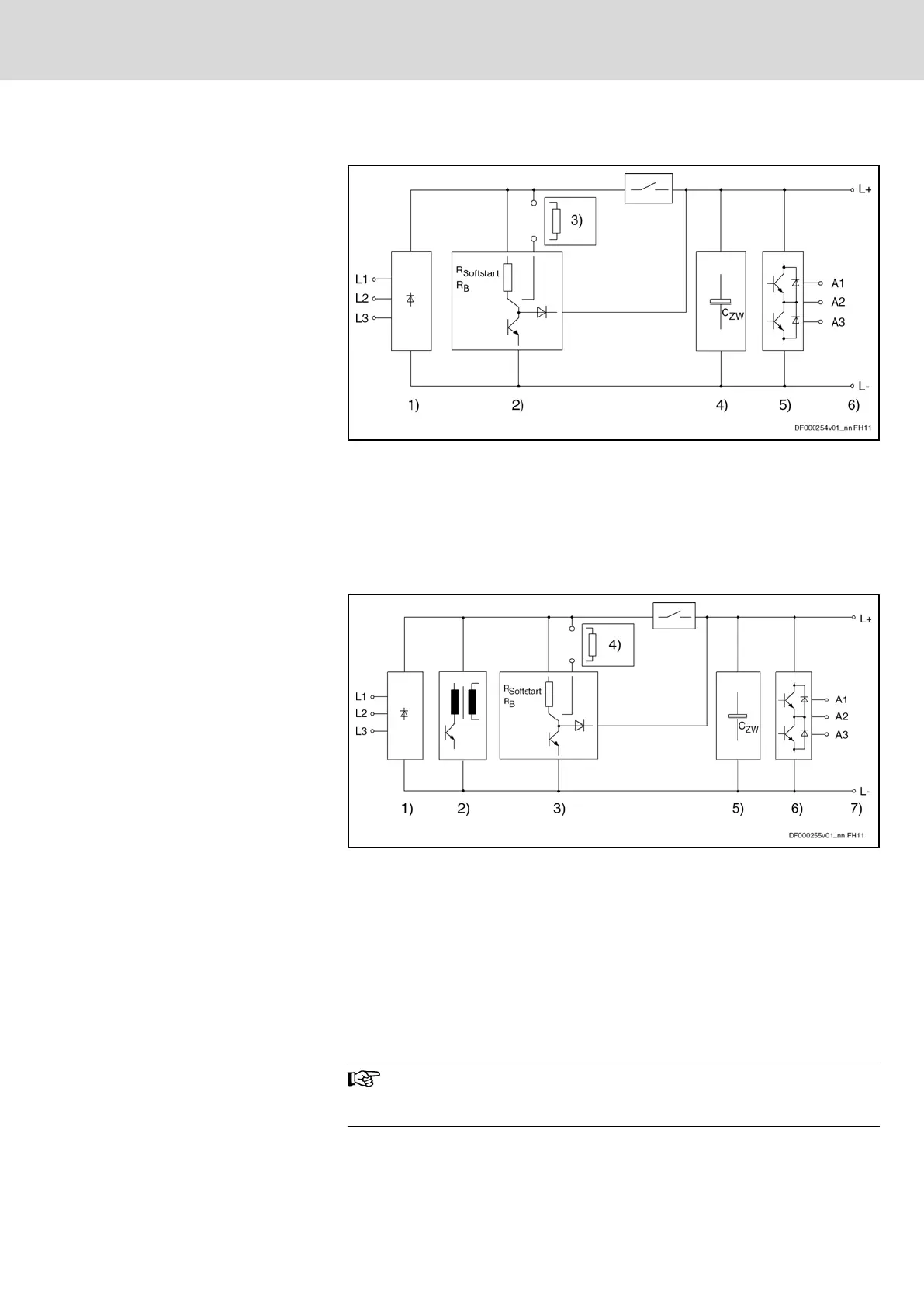

HCS02.1E-W0054/70-NNNN; -LNNN
1) mains input with rectifier
2) braking resistor circuit; charging current limitation
3) optional external braking resistor
4) DC bus capacitances
5) inverter stage with output to motor
6) DC bus connection
Fig.5-8: HCS02.1E-W0054/70-NNNN; -LNNN - block diagram
HCS02.1E-W0054/70-NNNV
1) mains input with rectifier
2) optional integrated control voltage supply
3) braking resistor circuit; charging current limitation
4) optional external braking resistor
5) DC bus capacitances
6) inverter stage with output to motor
7) DC bus connection
Fig.5-9: HCS02.1E-W0054/70-NNNV - block diagram
5.2.2 Type Code and Identification
Type Code
The following figure illustrates the basic structure of the type code.
Our sales representative will help you with the current status of
available versions.
Project Planning Manual | Rexroth IndraDrive Electric Drives
and Controls
| Bosch Rexroth AG 31/369
Power Sections for Converters - IndraDrive C
