CAUTION
Damage caused by voltage arcing!
Insulate ring terminals and connecting lines with a heat-shrinkable sleeve. Af‐
terwards only strip the insulation of the contact surface of the ring terminal.
The cross section of the lines must be at least 10 mm
2
, but mustn't be smaller
than the cross section of the supply feeder at mains connection X3.
The dielectric strength of the single strand must be at least 750 V (e.g. strand
type H07).
8.19 XS1, Shield Connection Control Lines
CAUTION
Risk of damage caused by high temperature of the outgoing air!
Observe outlet temperatures at the top of the devices.
Always connect the shields with the largest possible metal-to-metal
contact surface.

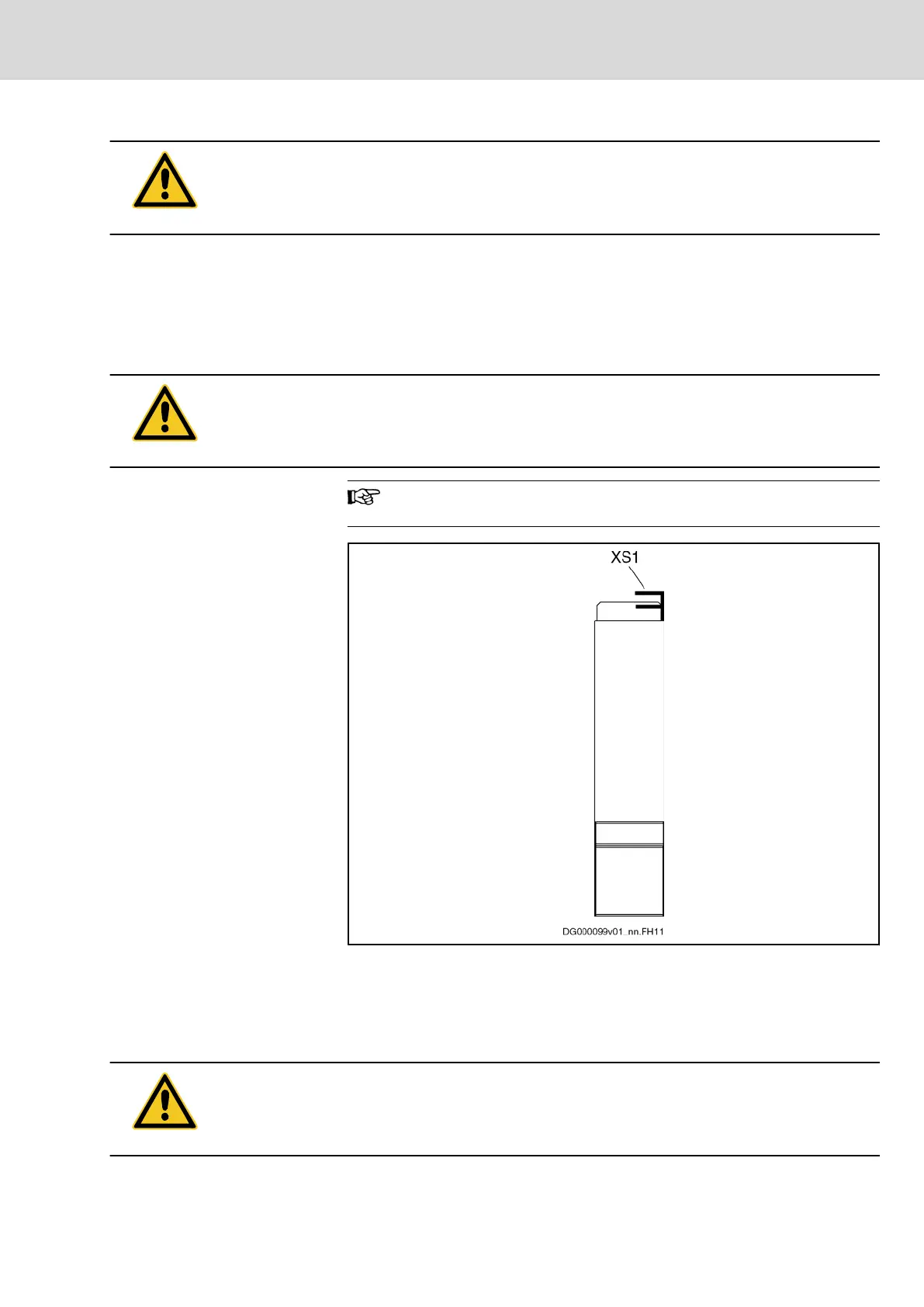

Fig.8-59: Shield connection XS1 (control lines)
Function
Connection point for the shields of lines connected to the control section and
of which the connectors do not have their own shield connection.
8.20 XS2, Shield Connection Motor Cable
CAUTION
Risk of damage to the drive controller caused by too long screws!
Exclusively use screws of a maximum length of 12 mm for the thread of shield
connection XS2.
Project Planning Manual | Rexroth IndraDrive Electric Drives
and Controls
| Bosch Rexroth AG 283/369
Functions and Electrical Connection Points
