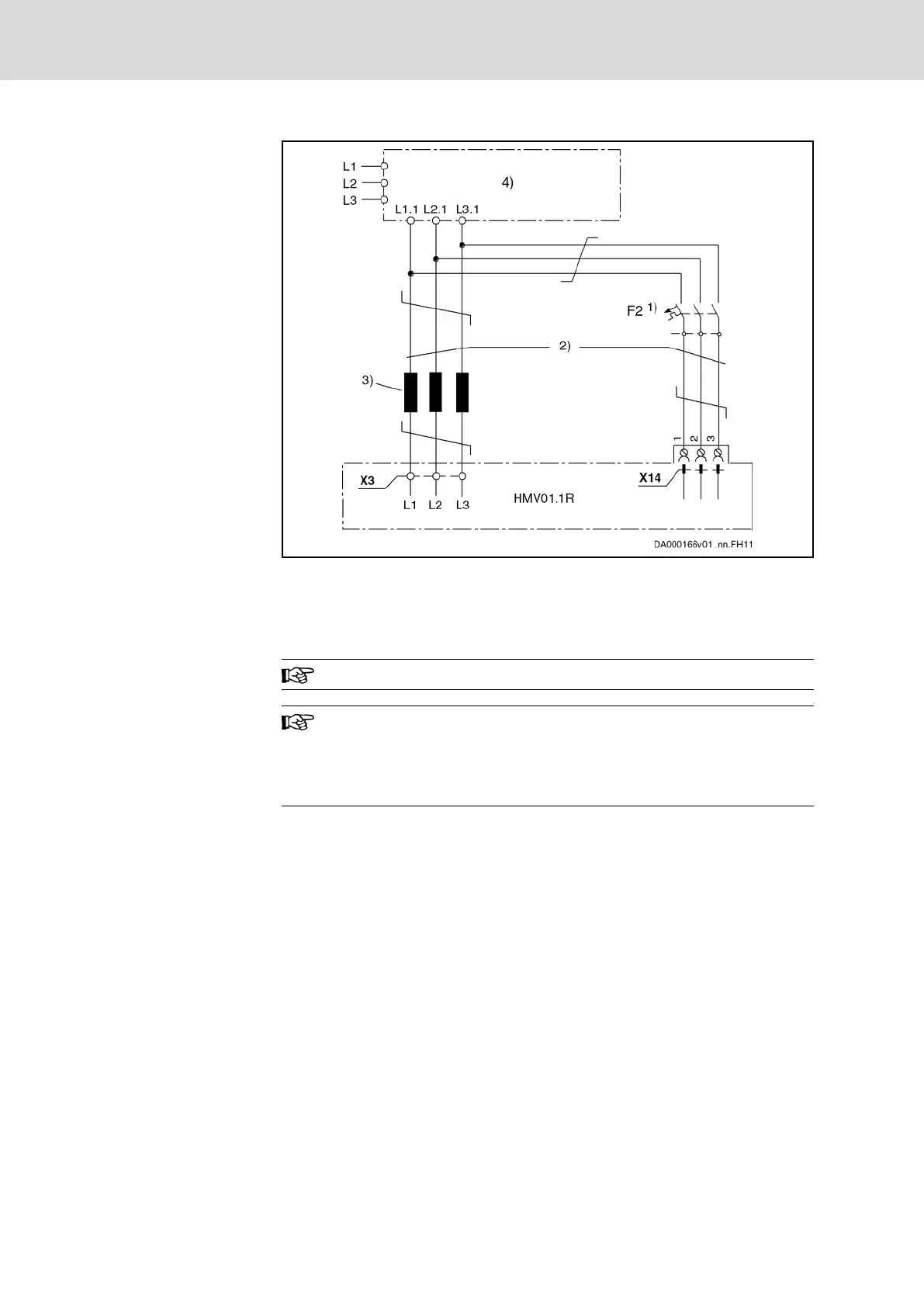

1) fusing of connection X14
2) in-phase connection required
3) mains choke
4) mains filter
Fig.8-36: Synchronizing voltage HMV01.1R
Install slow 5 A fuses in the supply line to connection X14.
Connect the connections X3 and X14 in phase:
● X3.L1 in phase with X14.1
● X3.L2 in phase with X14.2
● X3.L3 in phase with X14.3
8.11.3 Mains Synchronization HMV02
For mains synchronization, connect the output X14 of the HNS02 mains filter
to the input for mains voltage synchronization X14 of HMV02.1R.
270/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Functions and Electrical Connection Points
