8.4.2 Connection Diagrams Serial Interface to PC
Serial Interface to PC With 9-Pin
D‑Sub

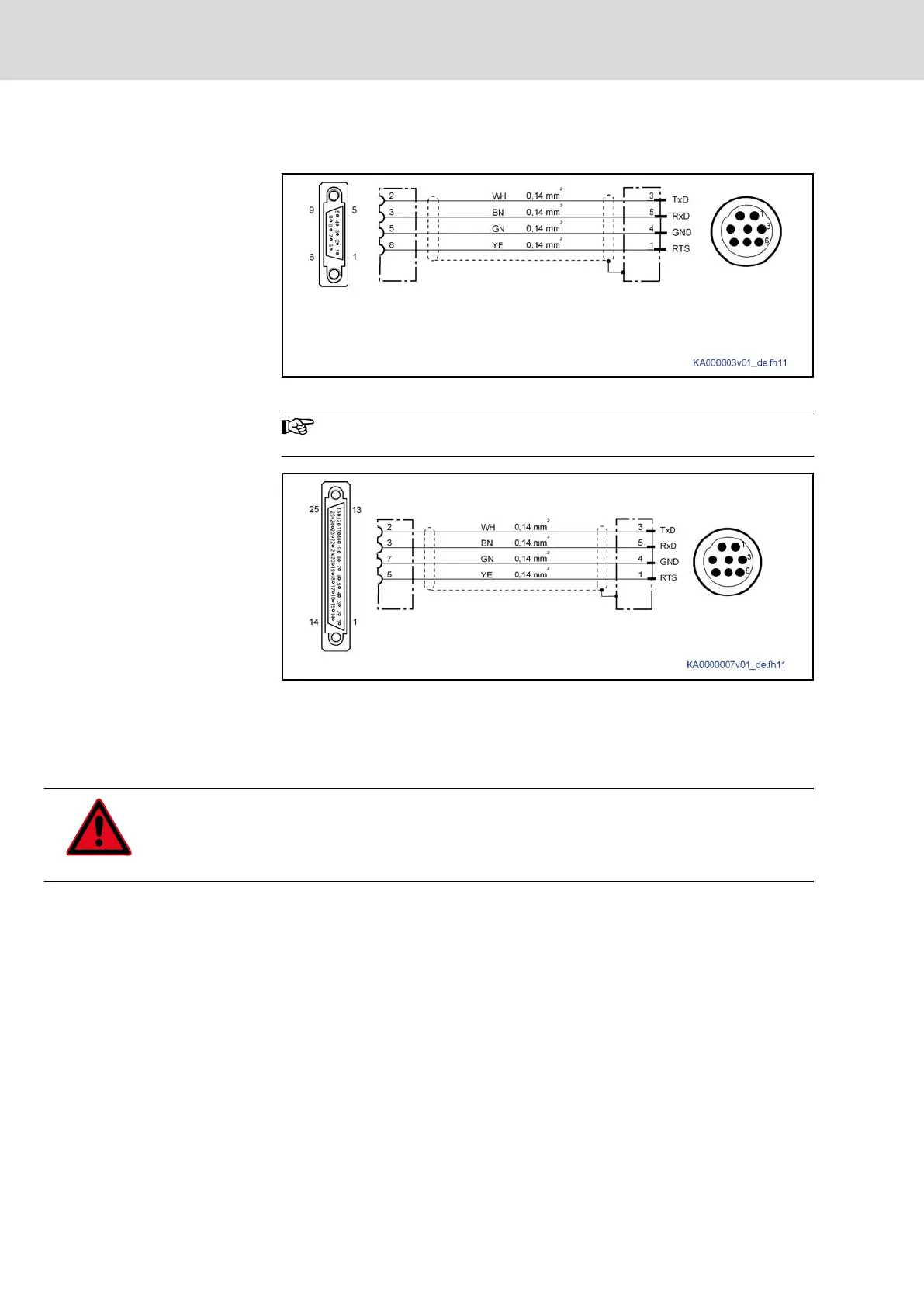

Fig.8-7: Connection of serial interface to PC with 9-pin D‑Sub
For direct connection to the serial interface, use our cable
IKB0041 .
Serial Interface to PC With 25-Pin
D‑Sub
Fig.8-8: Connection of serial interface to PC with 25-pin D‑Sub
8.5 X3, Mains Connection
8.5.1 Important Notes
DANGER
Lethal electric shock caused by live parts with more than 50 V!
Exclusively operate the device with plugged on connector and connected
equipment grounding conductor!
Notes on Installation
Dimension the required cross section of the connection cables according to the
determined phase current I
LN
and the mains fuse.
