Bosch Rexroth IndraDrive HMV - X3, Mains Connection HCS03.1 E-W0210

screw thread M6
tightening torque Nm 5,5 6,5
connection cables
stranded wire with ring cable lug
mm
2
1×16; 1×25; 1×35; 1×50
2×25; 2×35; 2×50
2×16 with accessories
AWG 1×6; 1×4; 1×2; 1×1
2×4; 2×2; 2×1
2×6 with accessories
occurring current load and minimum required
connection cross section
A see technical data of device used (I
L_cont
, I
L_max
and A
LN
)
occurring voltage load V see technical data of device used (U
LN
)
Fig.8-13: Function, pin assignment, properties

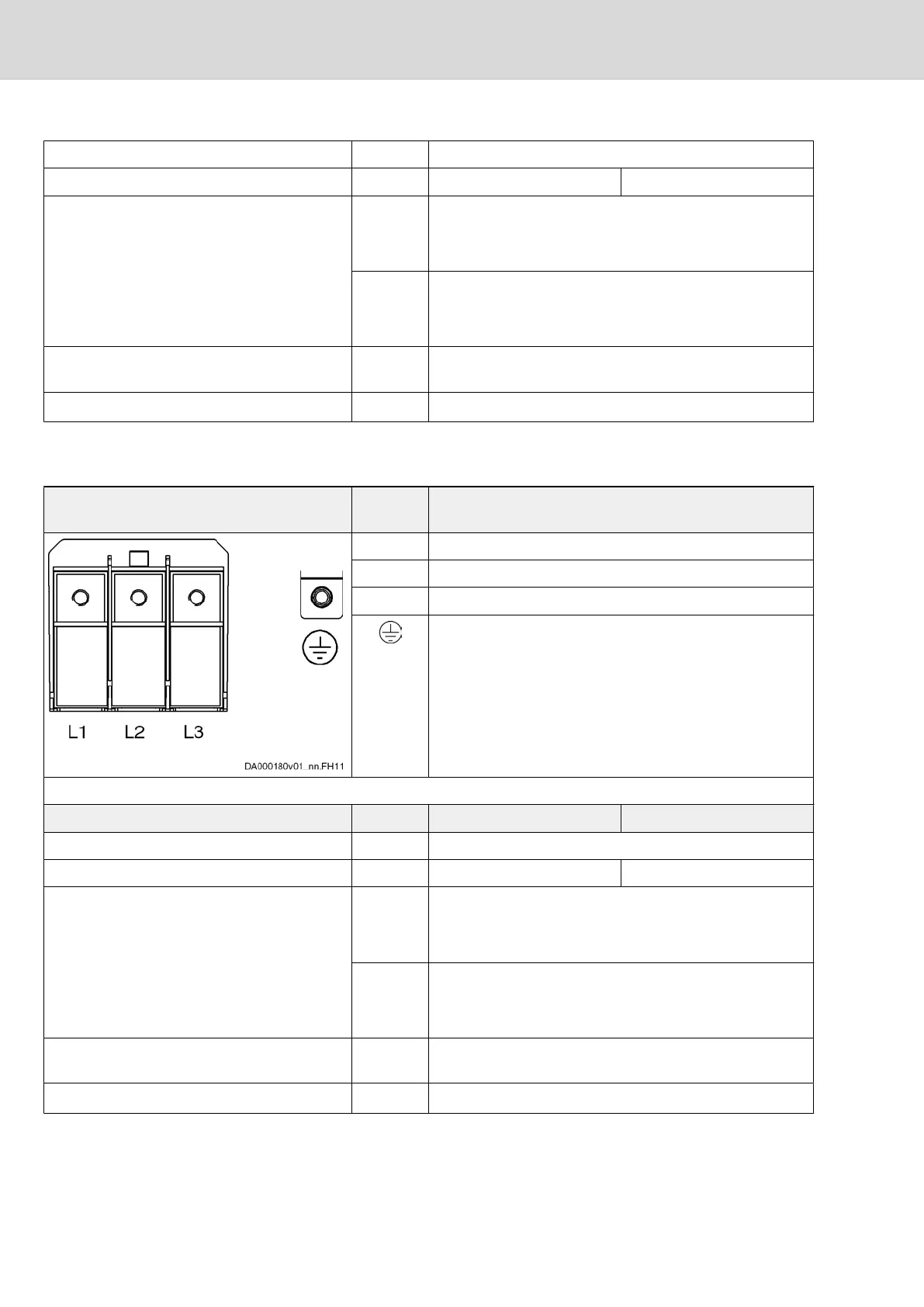

8.5.6 X3, Mains Connection HCS03.1E-W0210
View Identifica‐
tion
Function
L1 connection to supply mains (L1)
L2 connection to supply mains (L2)
L3 connection to supply mains (L3)
connection of equipment grounding conductor of drive con‐
troller
Terminal block Unit Min. Max.
screw thread M10
tightening torque Nm 16 20
connection cables
stranded wire with ring cable lug
mm
2
1×16; 1×25; 1×35; 1×50
2×25; 2×35; 2×50
2×16 with accessories
AWG 1×6; 1×4; 1×2; 1×1
2×4; 2×2; 2×1
2×6 with accessories
occurring current load and minimum required
connection cross section
A see technical data of device used (I
L_cont
, I
L_max
and A
LN
)
occurring voltage load V see technical data of device used (U
LN
)
Fig.8-14: Function, pin assignment, properties
