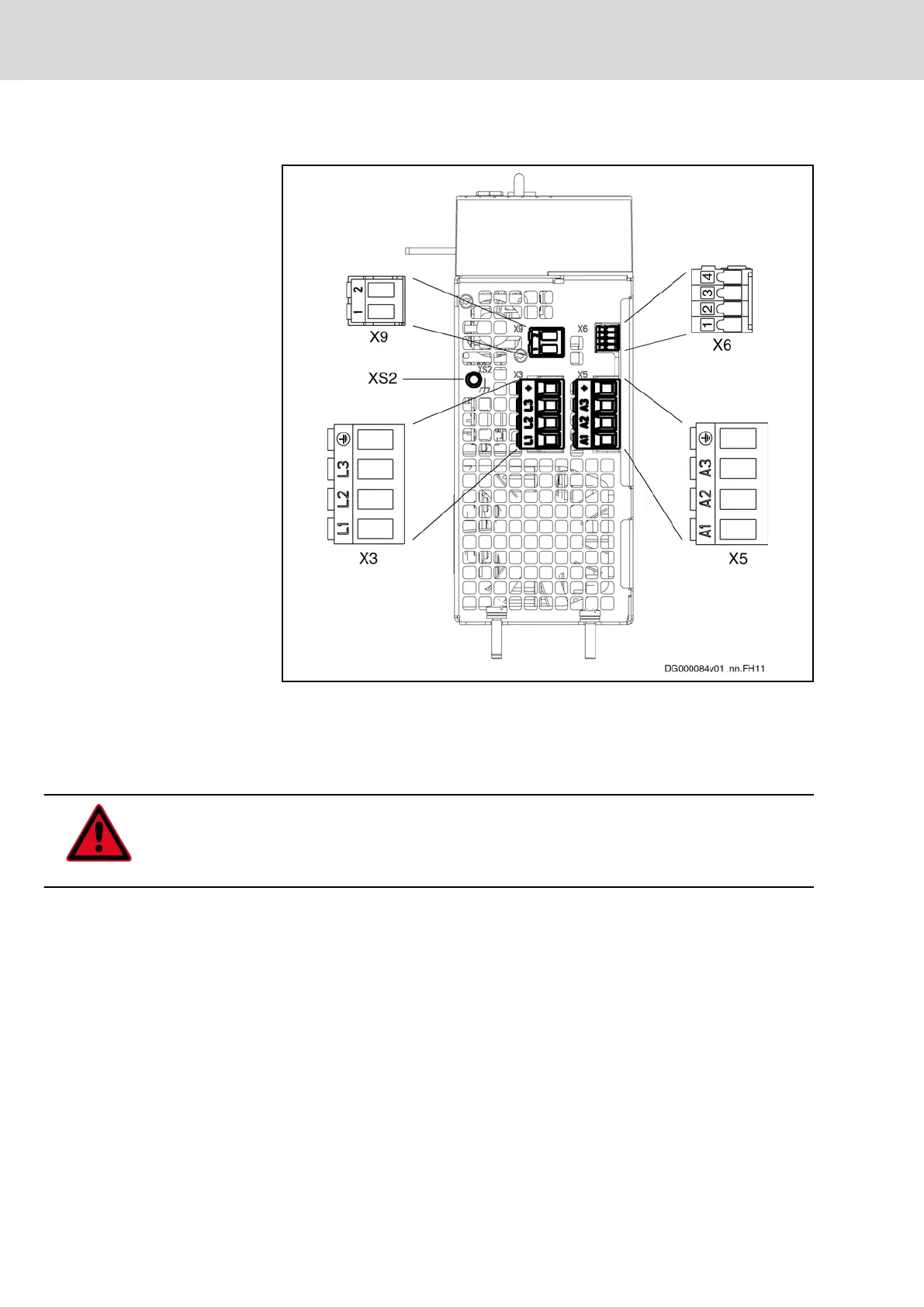

Connection points power sections HCS02.1E-W0054, ‑W0070 (bottom)
X3 mains connection
X5 motor connection
X6 motor temperature monitoring, motor holding brake
X9 external braking resistor
XS2 shield connection motor cable
Fig.5-42: Connection points power sections HCS02.1E-W0054, -W0070 (bottom)
DANGER
Lethal electric shock caused by live parts with more than 50 V!
Via the connection X3 (mains connection), connect the drive controller to the
equipment grounding conductor system.
Description of the Connection Points
The connection points are described in detail in chapter 8 Functions and Elec‐
trical Connection Points , page 241.
Touch Guard
The touch guard is described in detail in chapter 9 Touch Guard at Devices ,
page 291.
5.3 HCS03 Power Sections
5.3.1 Brief Description, Usage and Structure
Brief Description
The compact converters HCS03 are part of the Rexroth IndraDrive C product
range and are used to operate single axes.
62/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Power Sections for Converters - IndraDrive C
