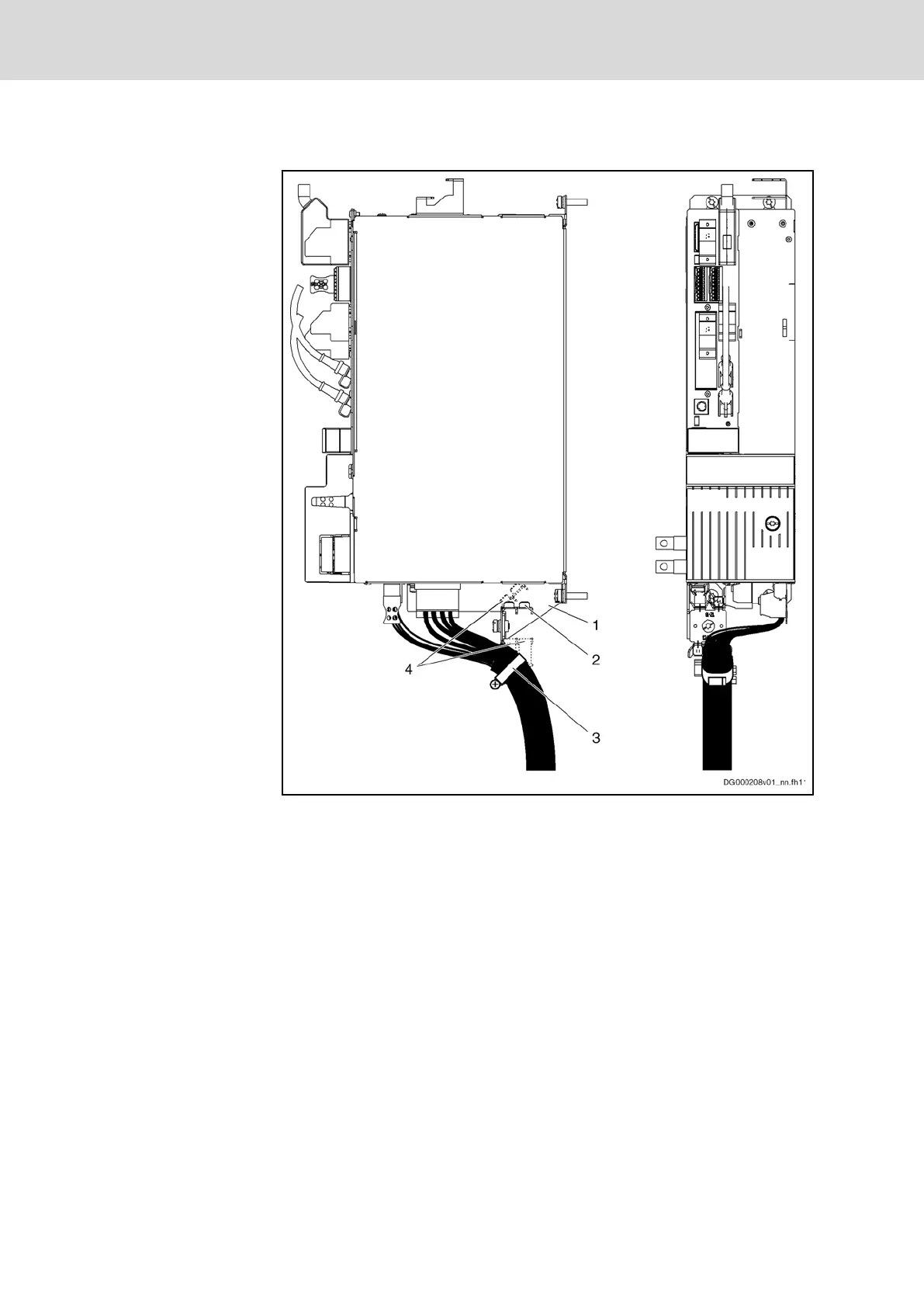

HAS02.1-002 at HCS02.1E-W0054
1 fixing device
2 shielding plate
3 clip
4 different possibilities of mounting the shielding plate, according to motor
cable routing
Fig.11-45: HAS02.1-002 at bottom of drive controller HCS02.1E‑W0054
Mounting
1. By means of supplied screws, fasten fixing device to bottom of drive con‐
troller.
2. Fix shielding plate to fixing device according to desired motor cable rout‐
ing.
3. Fix shield of cable to shielding plate with appropriate clip.
350/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Accessories
