Bosch Rexroth IndraDrive HMV - HAS02.1-007 with Power Supply Cable and Mains Filter

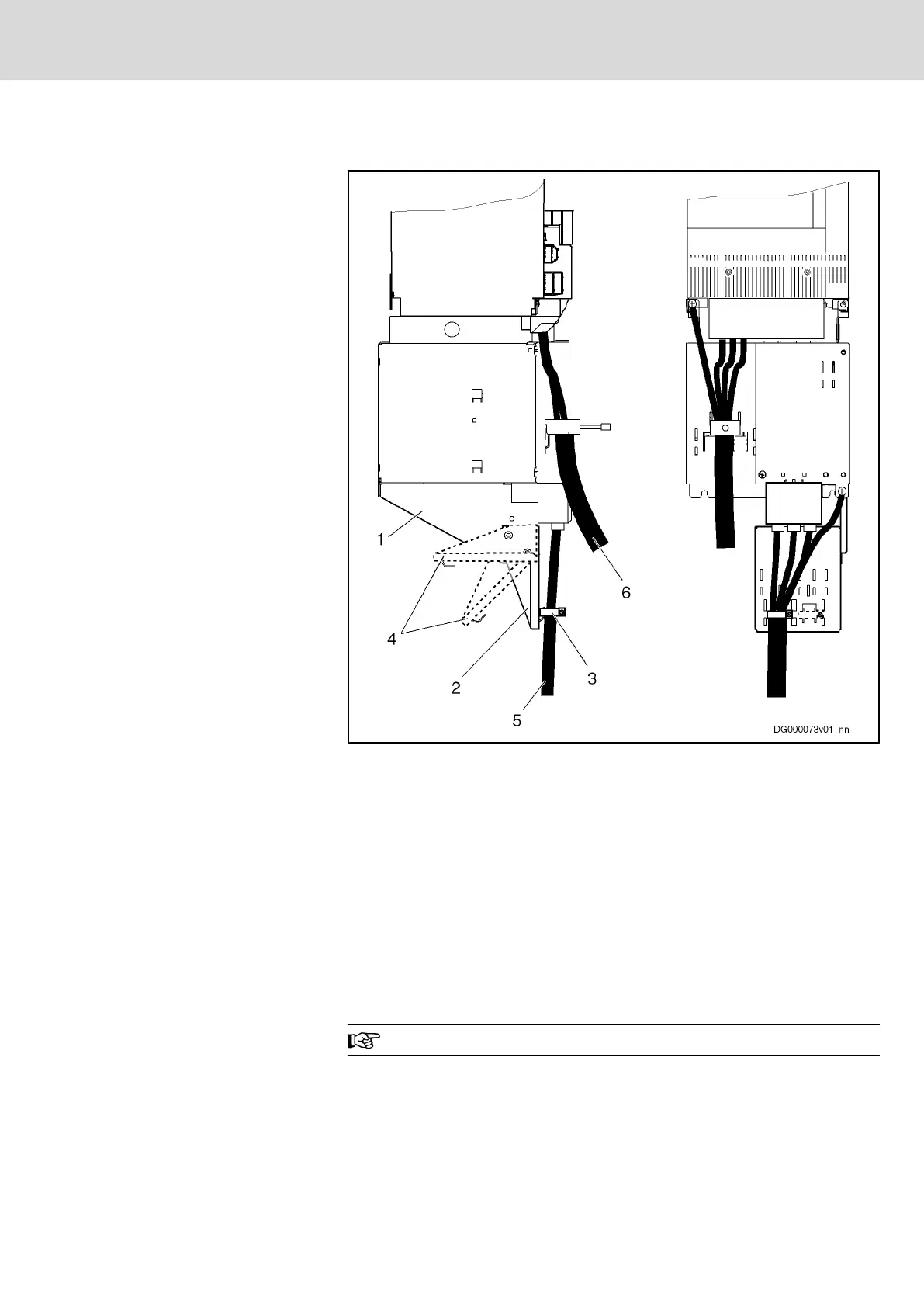

HAS02.1-007 With Power Supply Cable and Mains Filter
1 fixing device
2 shielding plate
3 clip
4 different possibilities of mounting the shielding plate, according to cable
routing
5 power supply cable
6 motor cable
Fig.11-53: HAS02.1-007 at bottom of mains filter (rated current 80 A / 106 A)
1. Hang up fixing device at bottom of mains filter and fasten with supplied
screws.
2. Screw shielding plate to fixing device.
According to desired cable routing, the shielding plate can be mounted in dif‐
ferent positions
3. Fix shield of cable to shielding plate with clip.
The shield terminals must not be used to provide strain relief.
