Type Plate
1 device type
2 part number
3 serial number
4 bar code
5 country of manufacture
6 production week, 04W12 meaning year 2004, week 12
7 hardware index

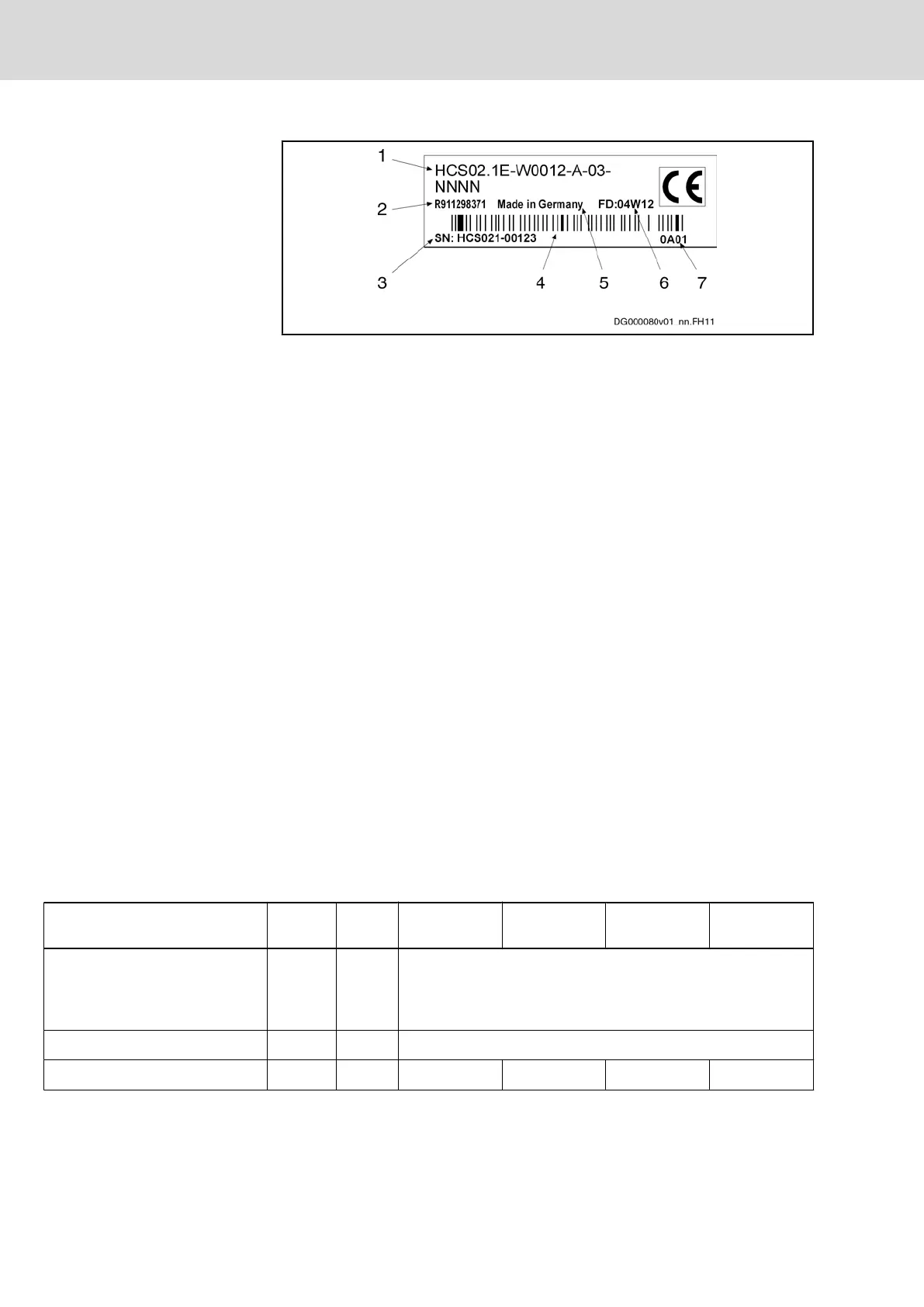

Fig.5-12: Type plate - power section (example of an HCS02 power section)
5.2.3 Scope of Supply
The scope of supply includes:
● 1 × touch guard
● 1 × connector X3, X5, X6, X13, X9 each (for designs W0054 and W0070)
● 1 × brochure with safety instructions (in 5 languages)
5.2.4 Technical Data
Ambient and Operating Conditions
General Information
Conditions for transport and storage: see chapter 4.2 Transport and Storage,
page 19.
Installation conditions: see chapter 4.3 Installation Conditions , page 19.
This chapter contains:
● limit values for use in the scope of C-UL
● applied standards (CE conformity, UL listing)
UL Data
Ambient and operating conditions - UL ratings
Description Symbol Unit
HCS02.1E-
W0012-_-03
HCS02.1E-
W0028-_-03
HCS02.1E-
W0054-_-03
HCS02.1E-
W0070-_-03
Suitable for use on a circuit capable
of delivering not more than this
SCCR, symmetrical amperes (UL)
1)
I
SCCR
A rms 42000
rated input voltage, power (UL)
2)
U
LN_nenn
V 200...500
rated input current (UL)
3)
I
L_cont
A 10,0 16,0 20,0 32,0
