Using the shielding plate guarantees optimum shield contact of the
motor cable. You should therefore, where possible, always use the
shielding plate.
The shielding plate is only available as an option.
HAS02.1-006 With Motor Cable and Mains Filter
1 fixing device
2 shielding plate
3 clip

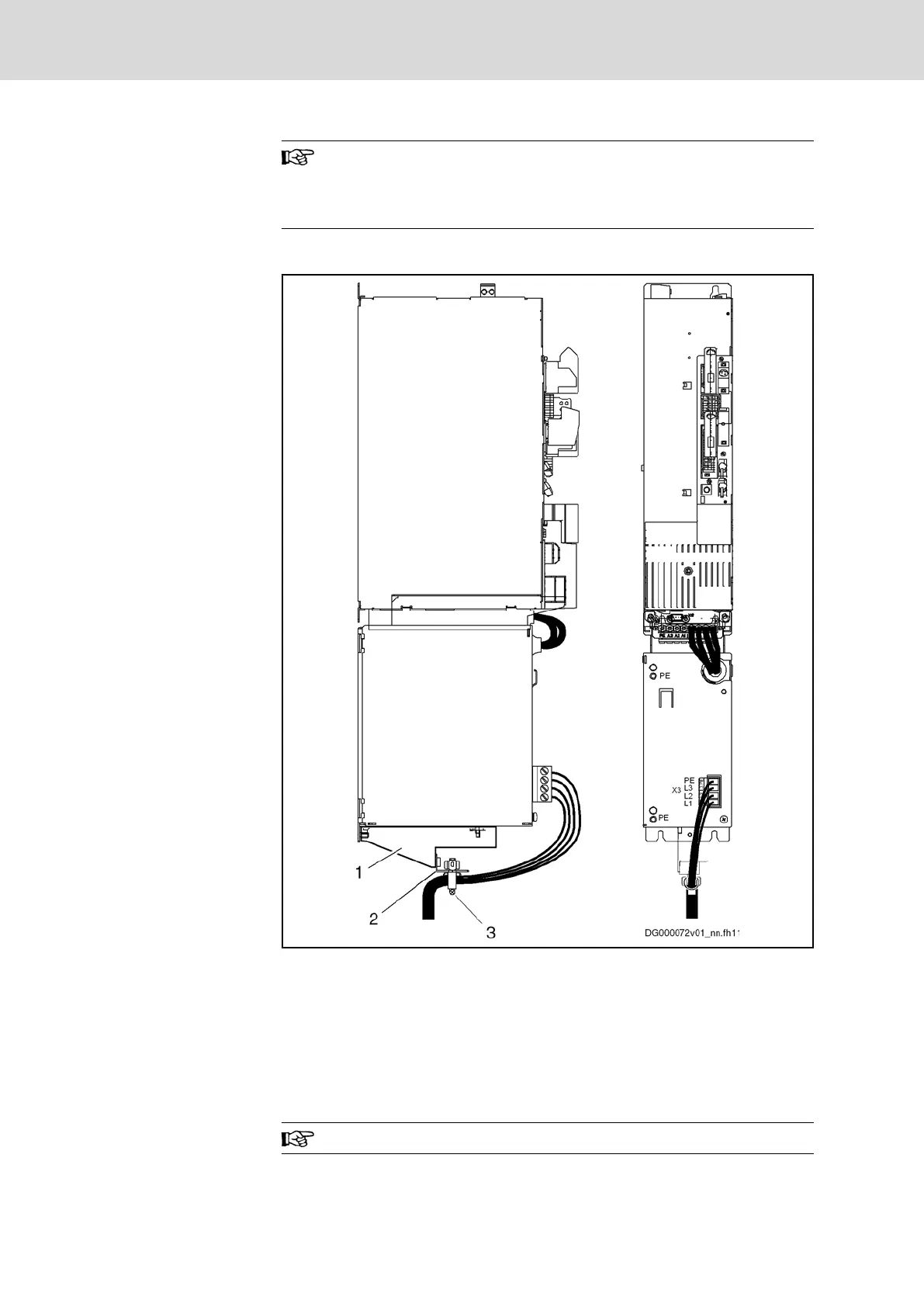

Fig.11-52: HAS02.1-006 at bottom of mains filter (rated current 50 A)
1. Hang up fixing device at bottom of mains filter at threaded bolts and fasten
with supplied nuts.
2. Screw shielding plate to fixing device.
3. Fix shield of cable to shielding plate with appropriate clip.
The shield terminals must not be used to provide strain relief.
356/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Accessories
