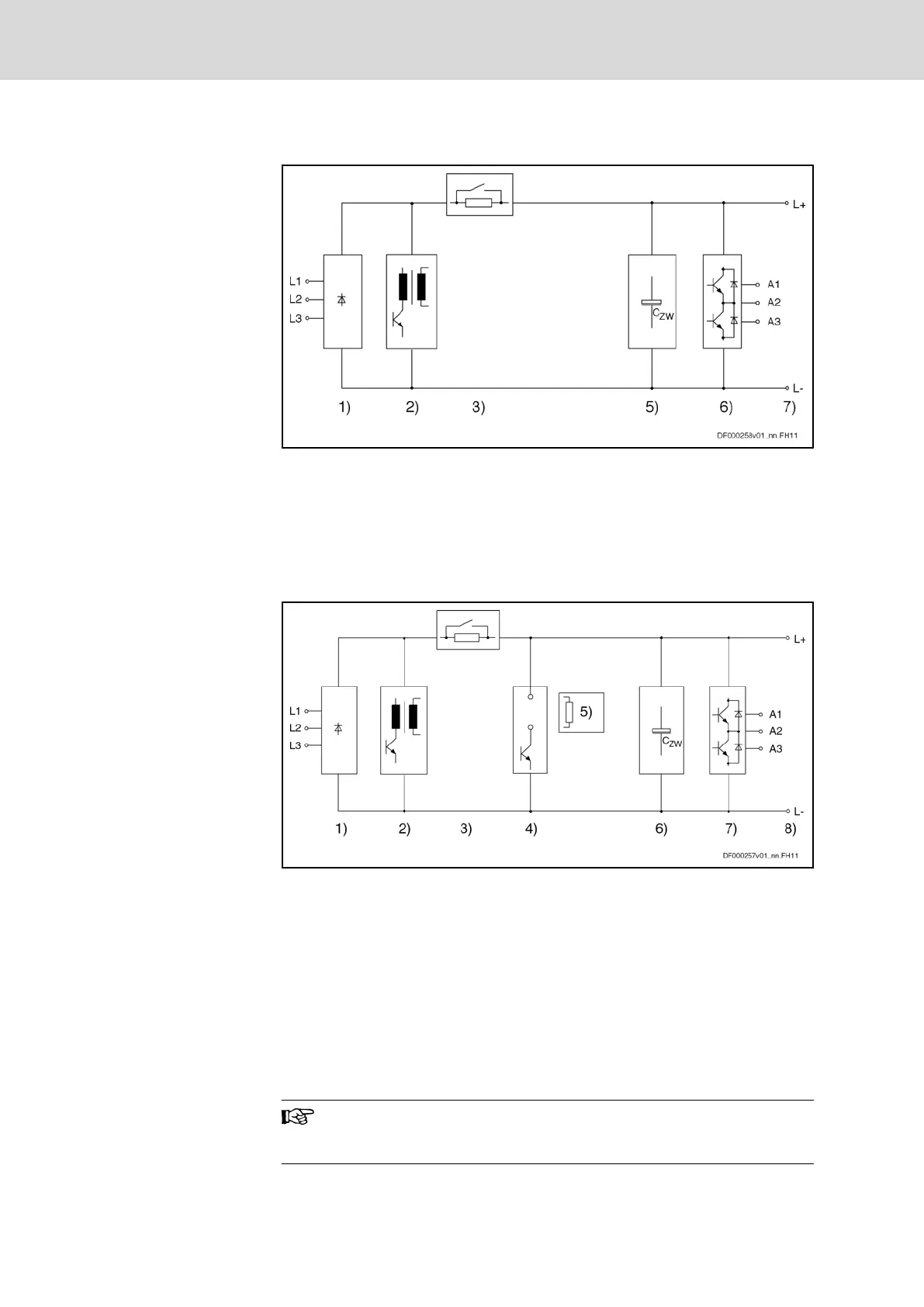

HCS03.1E-…-NNNV; -LNxV
1) mains input with rectifier
2) integrated control voltage supply
3) charging current limitation, for -W0210 with thyristors
5) DC bus capacitances
6) inverter stage with output to motor
7) DC bus connection
Fig.5-45: HCS03.1E-…-NNNV - block diagram
HCS03.1E-…-NNBV; -LNBV
1) mains input with rectifier
2) integrated control voltage supply
3) charging current limitation, for -W0210 with thyristors
4) optional braking transistor
5) optional external braking resistor
6) DC bus capacitances
7) inverter stage with output to motor
8) DC bus connection
Fig.5-46: HCS03.1E-…-NNBV - block diagram
5.3.2 Type Code and Identification
Type Code
The following figure illustrates the basic structure of the type code.
Our sales representative will help you with the current status of
available versions.
64/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Power Sections for Converters - IndraDrive C
