Connection points power section HCS02.1E-W0028 (bottom)
X3 mains connection
X5 motor connection
X6 motor temperature monitoring, motor holding brake
XS2 shield connection motor cable

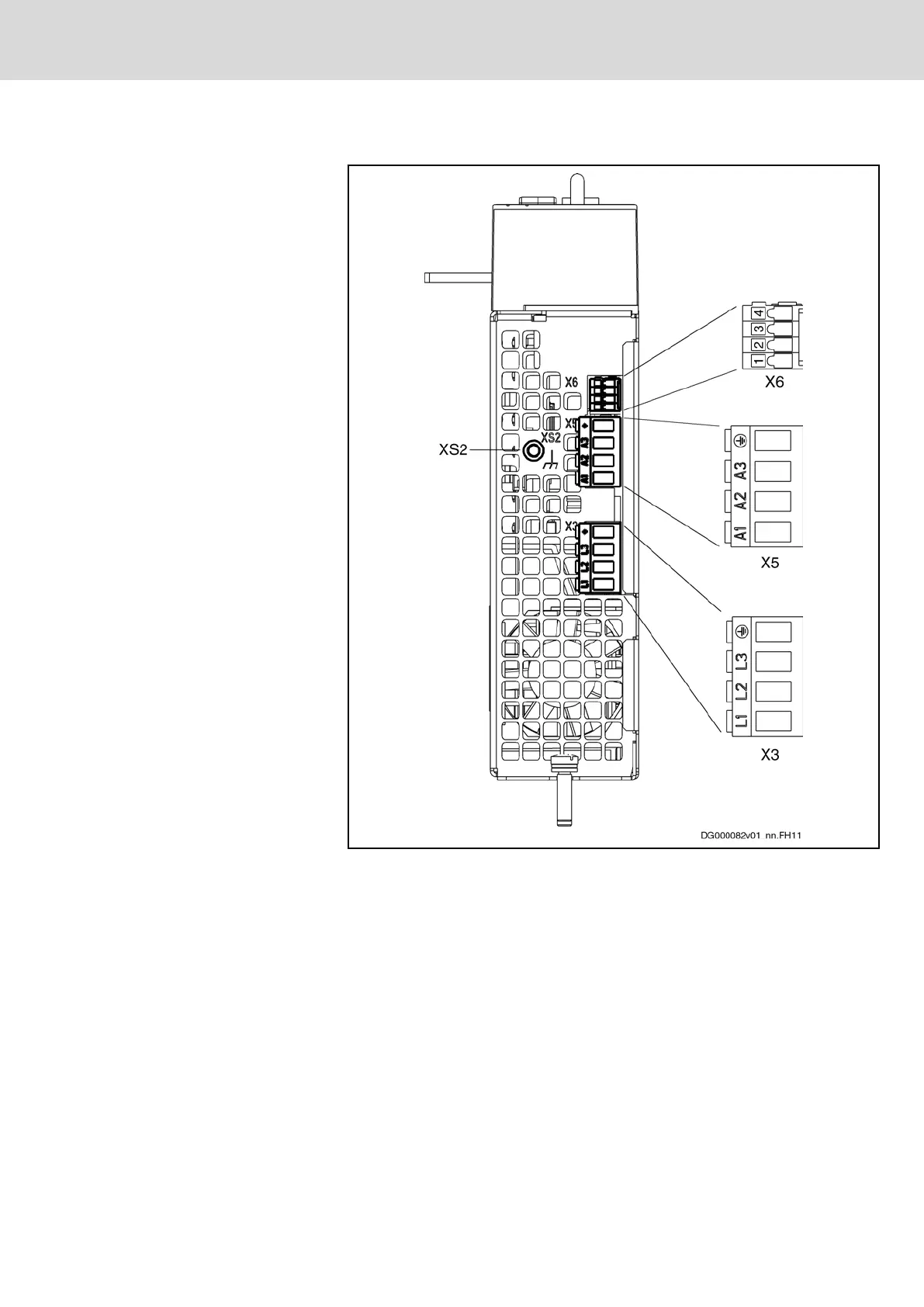

Fig.5-41: Connection points power section HCS02.1E-W0028 (bottom)
