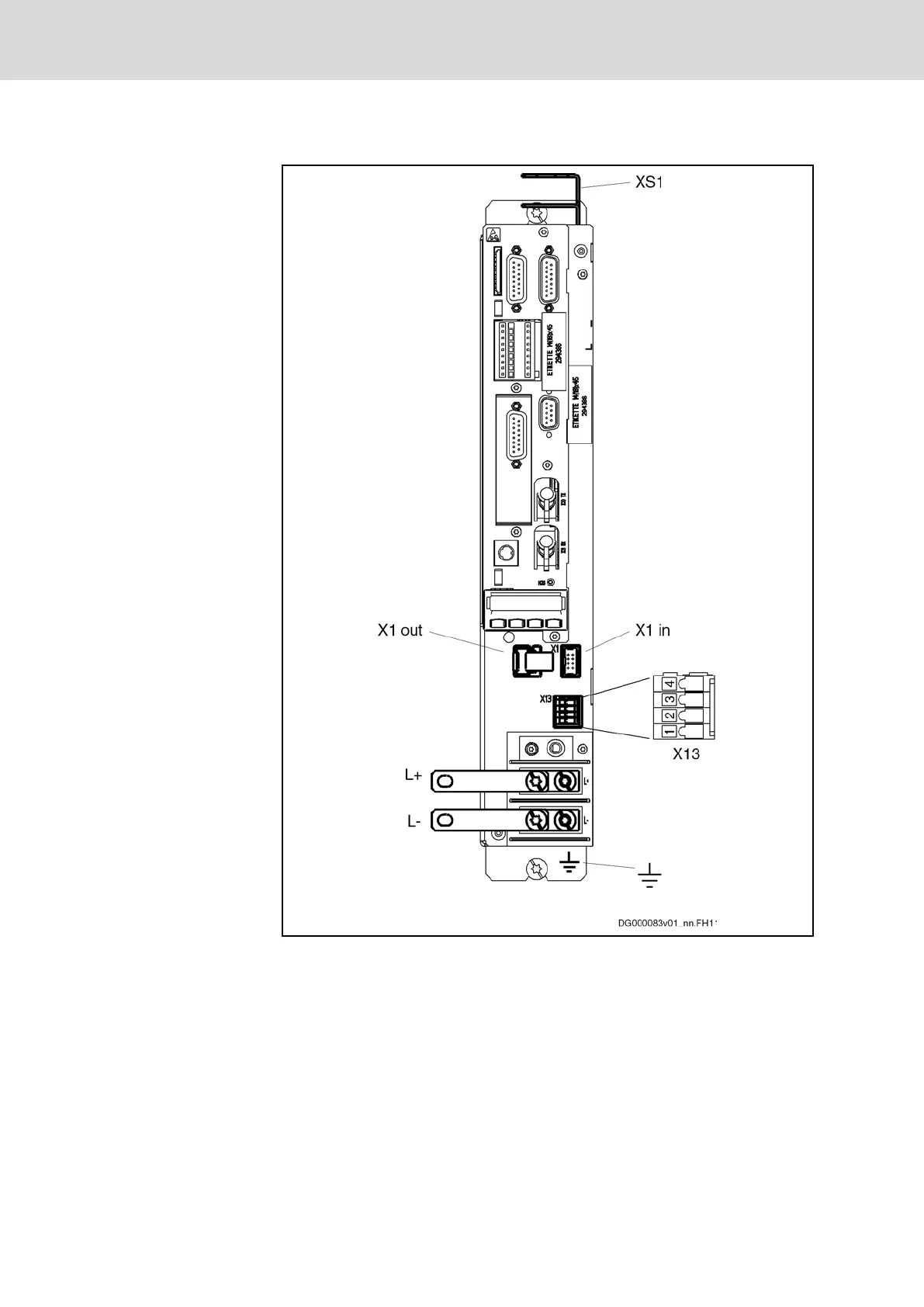

Connection points power sections HCS02.1E-W0028, -W0054, ‑W0070 (front)
X1 module bus
X13 control voltage
XS1 shield connection control lines
L+, L- DC bus
Fig.5-40: Connection points power sections HCS02.1E-W0028, -W0054, ‑W0070
(front)
60/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Power Sections for Converters - IndraDrive C
