1 screw in thread XS2
2 sheet metal of accessories
3 fixing device
4 shield of motor cable
5 clip

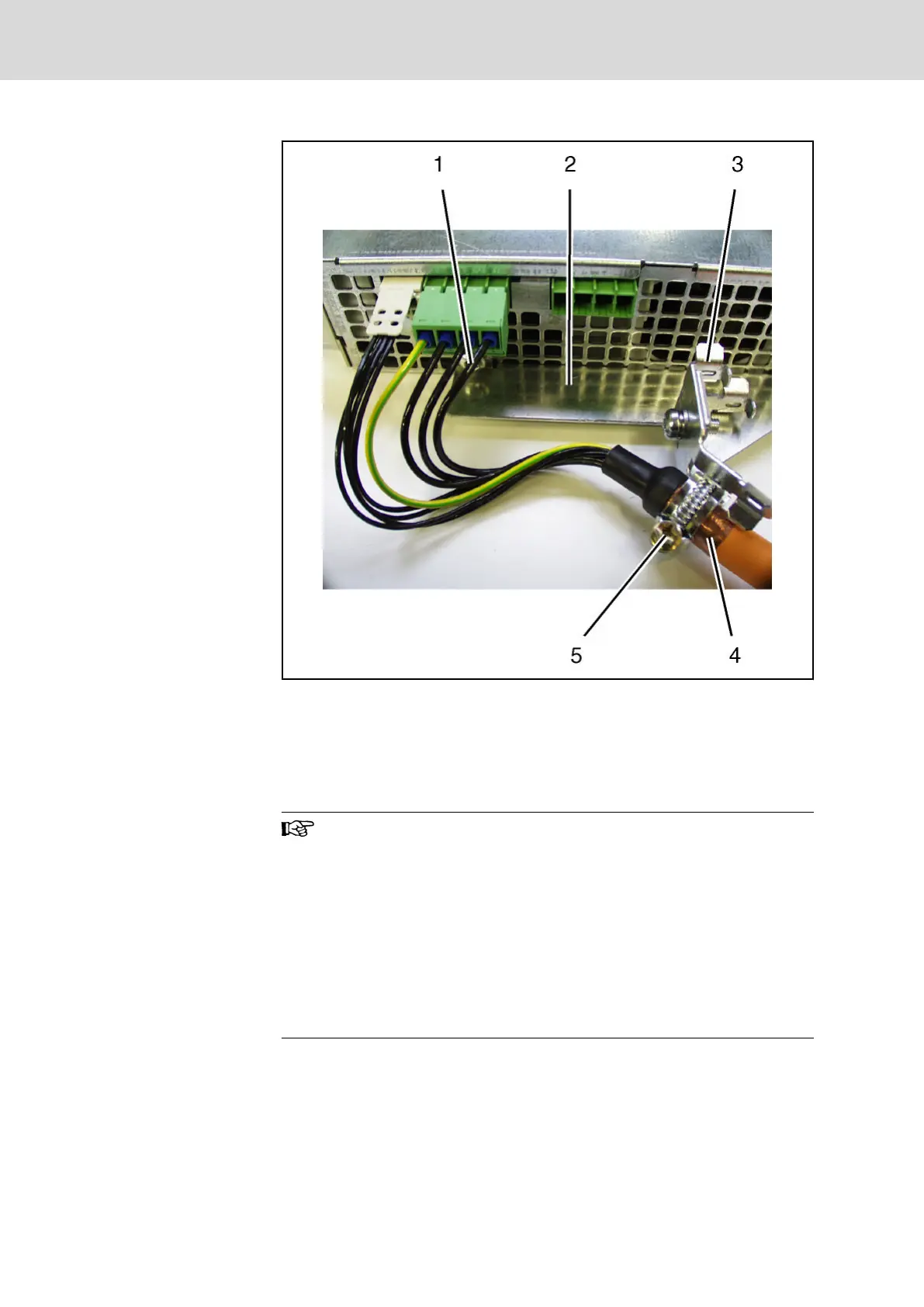

Fig.8-16: Strain relief, shield connection of motor cable with accessory HAS02 -
example HCS02
● For optimum shield contact of the motor power cable, use our
accessory HAS02, where possible.
● For the connection between drive controller and motor use our
ready-made motor power cables, where possible (see docu‐
mentation “Rexroth Connection Cables - Selection Data”).
● When using NFD03.1 mains filters, the maximum allowed con‐
ductor cross section is limited to 4 mm
2
.
● For selecting the motor cables, observe the information con‐
tained in the section “Connection Cables to Motor” in the
documentation “Rexroth IndraDrive Drive System - Project
Planning Manual”.
254/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Functions and Electrical Connection Points
