Apart from the indicated connections, it is necessary to wire the Bb
contact at the control section for signaling the readiness for opera‐
tion of the drive controller (see Project Planning Manual for Control
Section).
Arrangement of the Connection Points
Connection points power section HCS02.1E-W0012 (front)
X13 control voltage
XS1 shield connection control lines

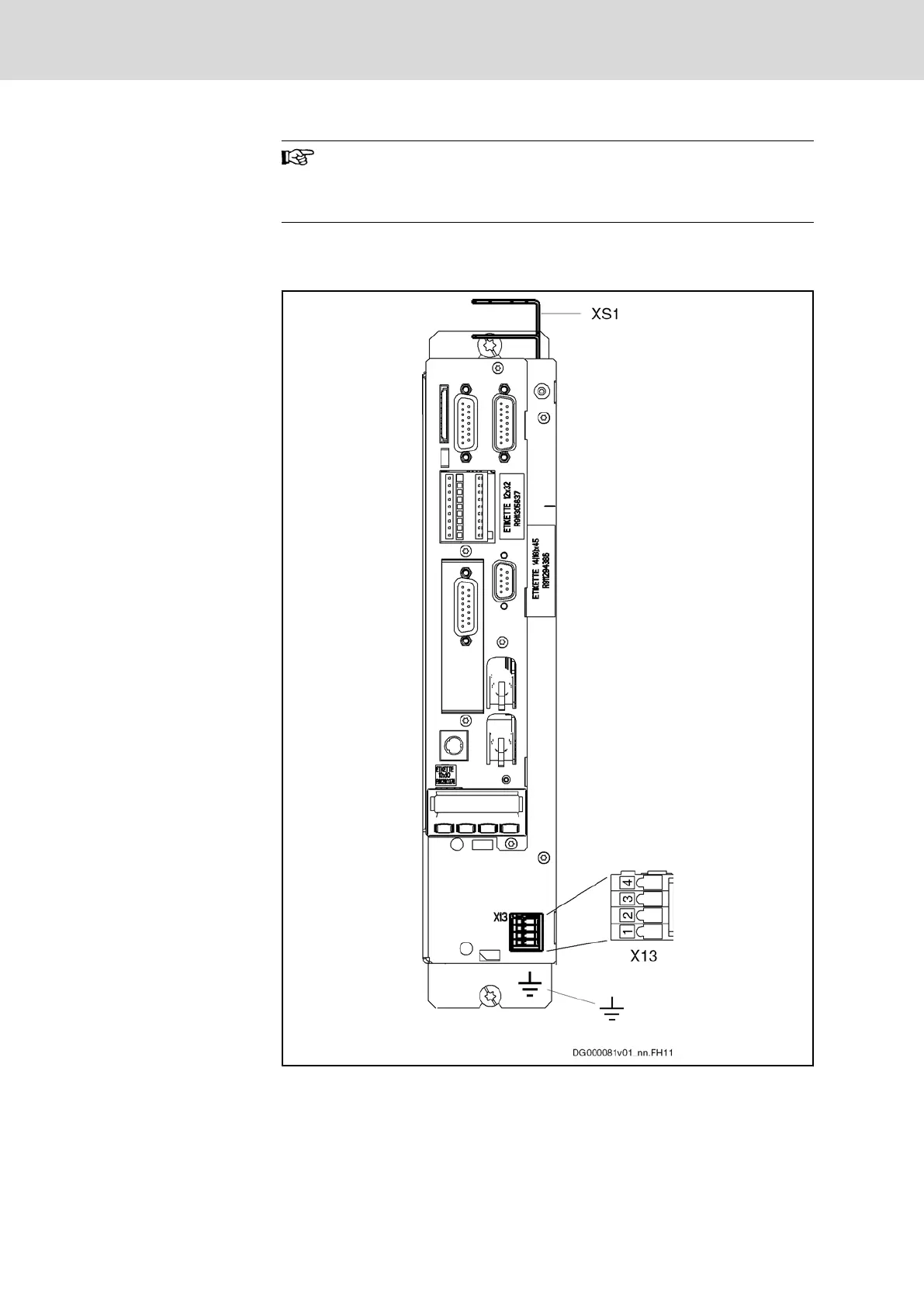

Fig.5-38: Connection points power section HCS02.1E-W0012 (front)
58/369 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth IndraDrive | Project Planning Manual
Power Sections for Converters - IndraDrive C
