Quick Start Guide
Installing Panels and Modules
Once the enclosure is secured in place, install the panels
and modules onto the mounting clip using the supplied
3mm screws. Do not over tighten the screws.
When fitting panels or large modules, you should use 5
mounting clips, one in each corner of the PCB and one
in the middle of the PCB underneath the main terminal
blocks. When mounting small modules, only 4 clips are
required, 1 in each corner.
Both enclosures are supplied with tamper switches,
tamper leads, tamper brackets and a quantity of
mounting clips and screws. If required, additional
mounting clips and screws may be purchased in bags of 50
clips (10 packs x 5pcs). (P/N: MW890)
i
Note
The supplied mounting clips are designed to use the
3mm machine screws supplied with the enclosure.
The use of self tapping screws will damage the clips.

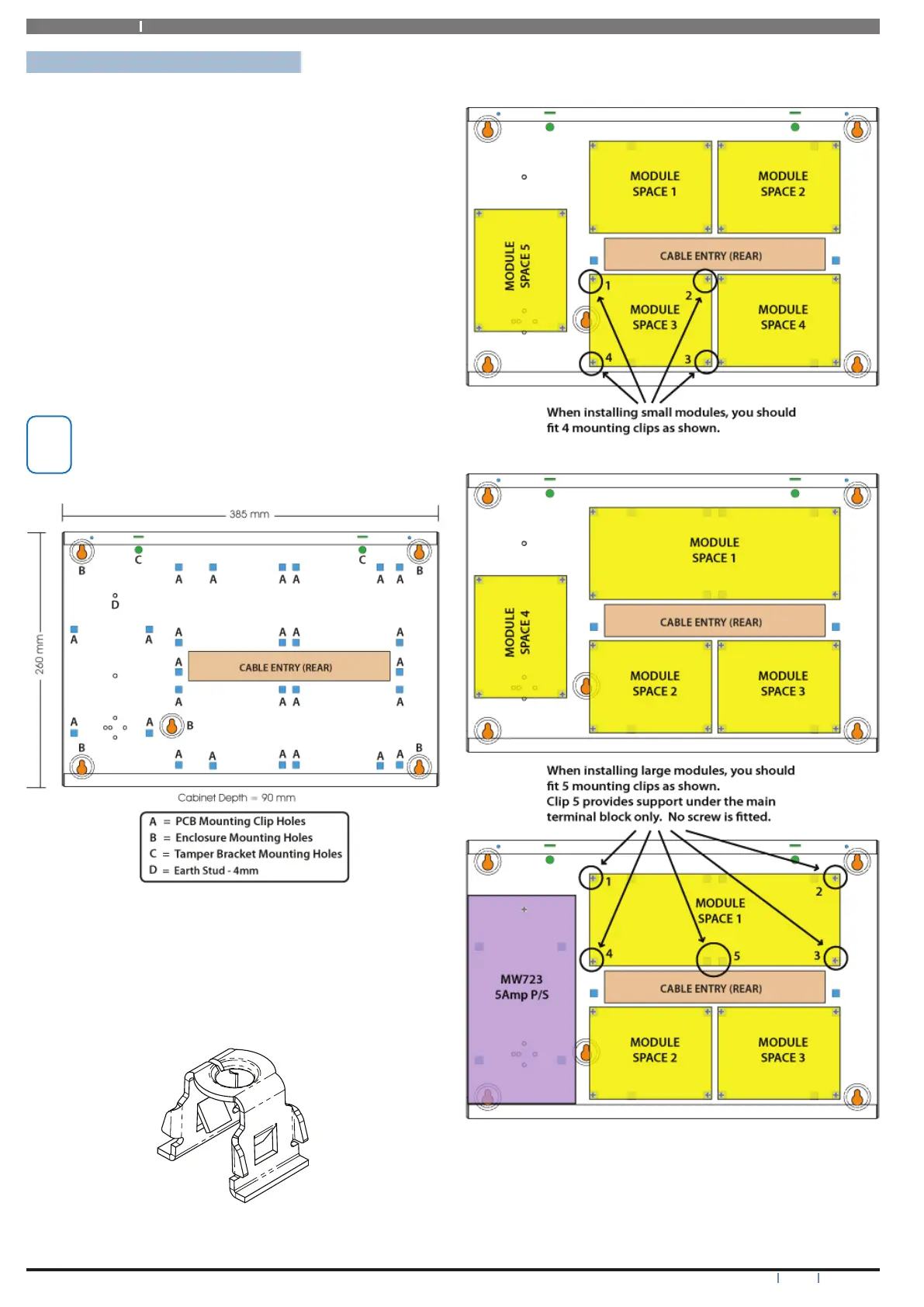

Figure 3: MW720B - Small Enclosure Details
Figure 4: PCB Mounting Clip
The following example shows the MW720B - Small
enclosure configured using 4 small modules.
Figure 5: MW720B Configuration Examples
