Bosch Solution 6000-IP CC615GWF User Manual

7
Bosch Security Systems 10/22 BLCC615R
Solution 6000-IP
Quick Start Guide
320 mm
520 mm
A A
A
A
AAAA
A AAA
A
AAA
A AAA
A
AAA
A AAA
A
AAA
CABLE ENTRY (REAR)
CABLE ENTRY (REAR)
CABLE ENTRY (REAR)
A
= PCB Mounting Clip Holes
= Enclosure Mounting Holes
B
= Tamper Bracket Mounting Holes
C
= Earth Stud - 4mm
D
C C
BB
D
BB
D
D

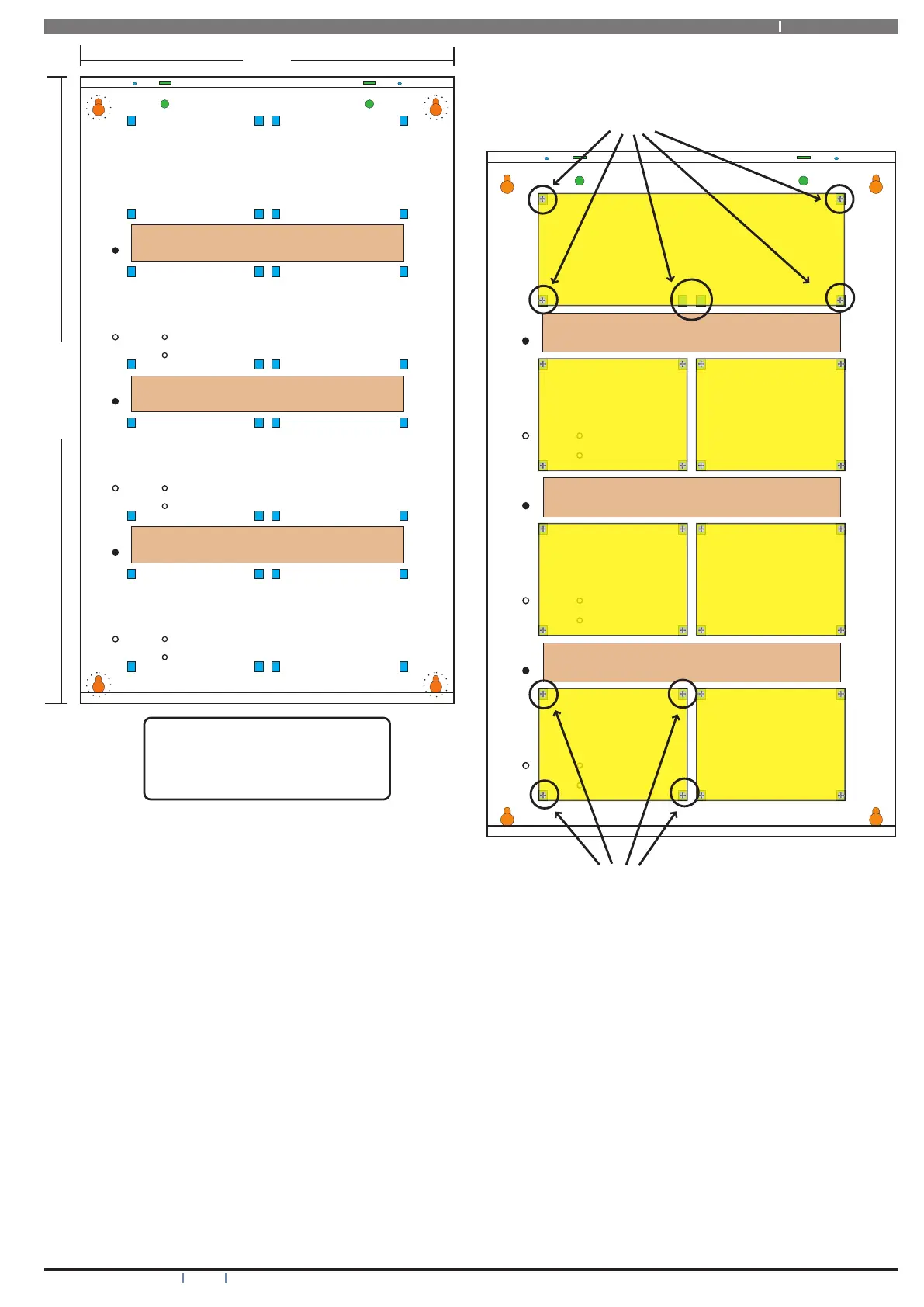

Figure 6: MW730B - Large Enclosure Details
The following examples show the MW710 -Large enclosure
configured using 6 small modules and 1 large module.
CABLE ENTRY (REAR)
MODULE
SPACE 1
MODULE
SPACE 3
MODULE
SPACE 2
MODULE
SPACE 5
MODULE
SPACE 4
MODULE
SPACE 7
MODULE
SPACE 6
CABLE ENTRY (REAR)
CABLE ENTRY (REAR)
When installing small modules, you should
fit 4 mounting clips as shown.
When installing large modules you should fit 5
mounting clips as shown.
Clip 5 provides support under the main terminal
block only. No screw is fitted.
1
2
3
4
5
1
2
3
4
Figure 7: MW730B Configuration Examples

Bosch Solution 6000-IP CC615GWF Specifications

General

Battery Backup	Yes
Wireless Support	Yes
Remote Access	Yes, via mobile app and web browser
Communication	IP, GSM
Mobile App Support	Yes
System Type	Hybrid
IP Connectivity	Yes
Compatible with	Bosch
Installation	Professional installation
